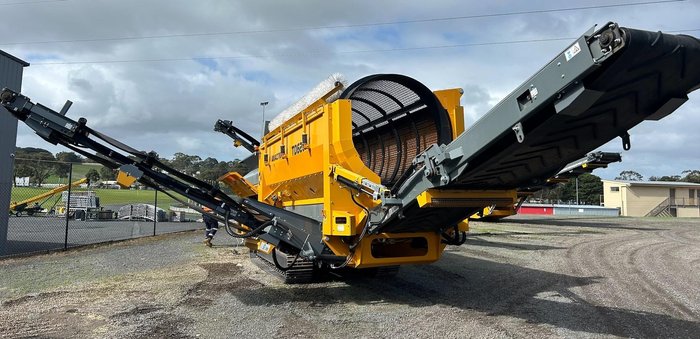

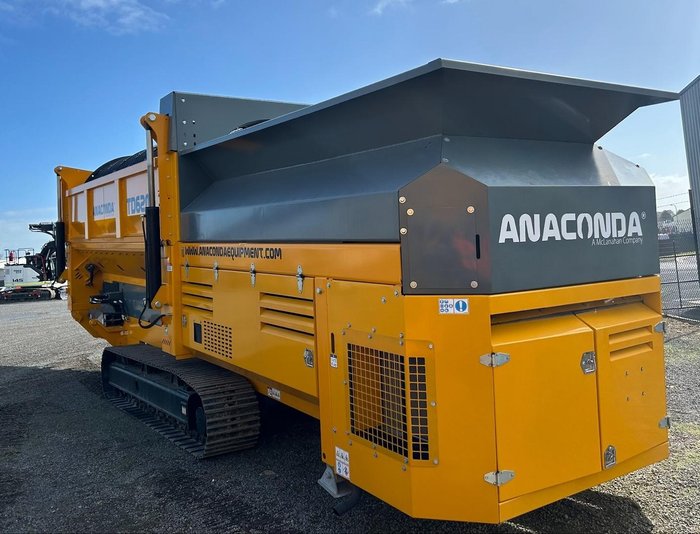

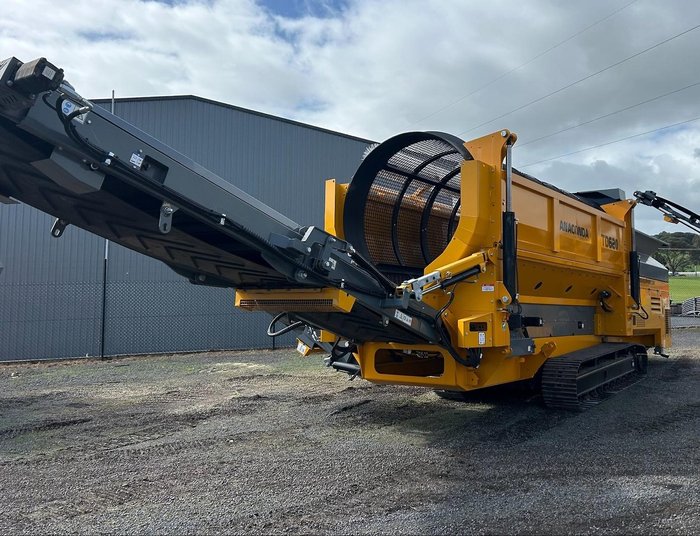

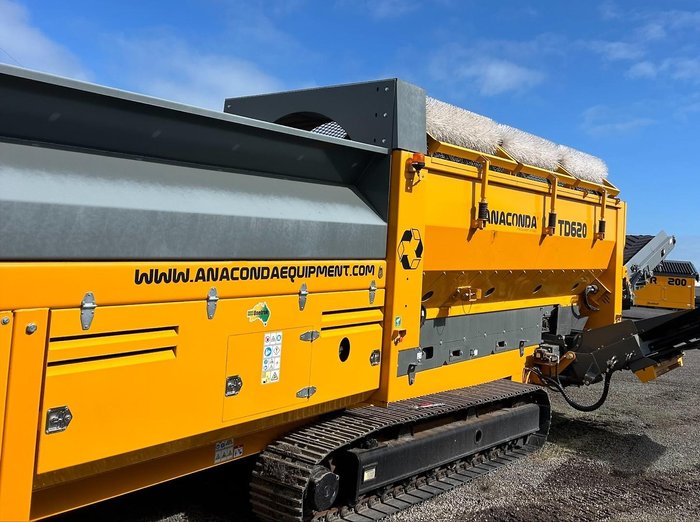

2024 Anaconda TD620

The Anaconda TD620 Trommel Screen is a robust primary screening solution for operators looking to process a range of organic materials such as topsoil, sand, shredded waste, aggregate, dolomite and compost.
The TD620 can process up to 200 tph (220 US tph) with a max feed size of 300 mm (12") and max screen size of 75mm (3").
The Trommel Screen range has been designed with a lift bar system to effectively cut through wet materials and prevent build-up in the drum.

FEATURES AND BENEFITS
Quick set up within 20 minutes of arrival on site
Four-wheel hydraulic drive drum system
Variable speed on the screening drum and conveyors
Drum load sensing system

SPECIFIC TO THIS MACHINE
EX Demo - 38 hours
Mesh as per customer's requirements (currently 8mm mesh fitted to drum)
Located in Moorebank, NSW

OPERATING DIMENSIONS
Length 13850mm, Width 6900mm, Height 3740mm

TRANSPORT DIMENSIONS without grid
Length 11350mm, Width 3000mm, Height 3450mm, Weight 20000kg
