Rotobec RPA3045D43 RGP902

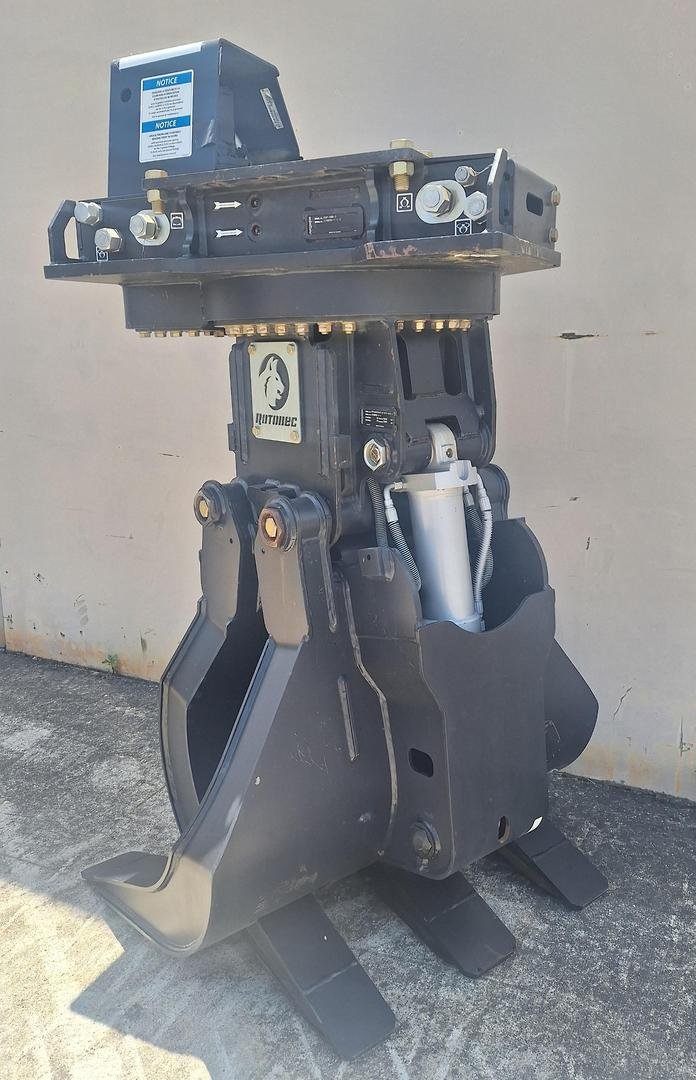

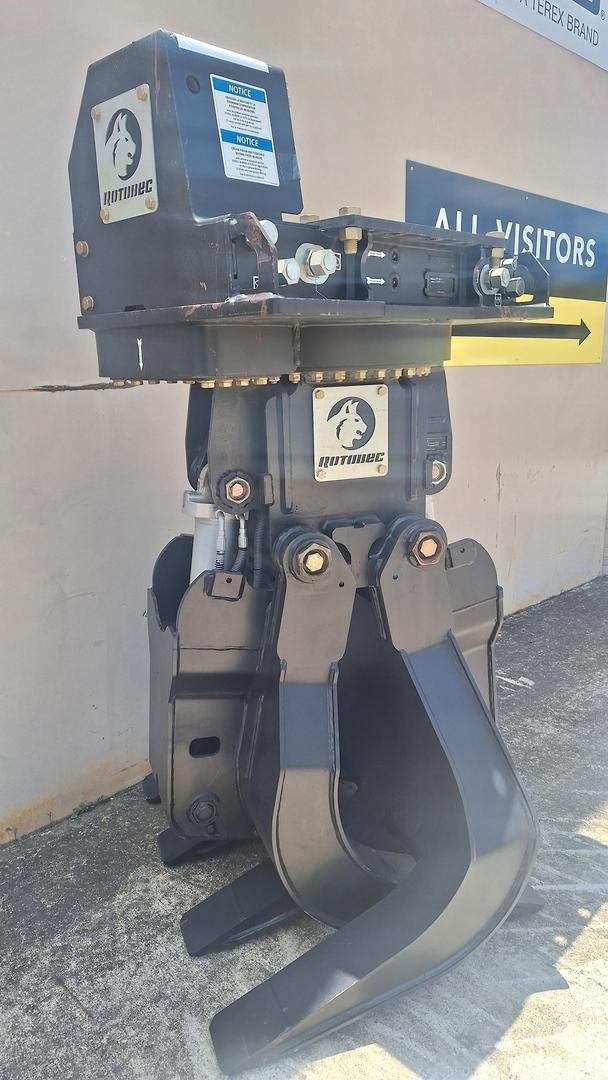

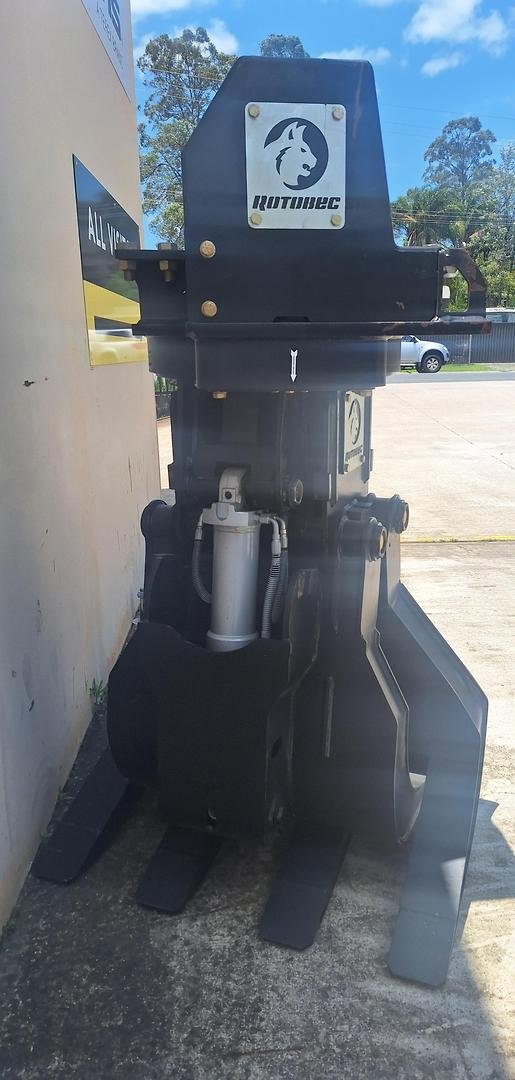

New Rotobec RPA3045D43-RGP902 Demolition Grapple with Rotator

4X3 TINE

WEIGHT: 1483 kg
VOLUME: .96m3
AREA TIP TO TIP: .47m2
ROTATOR LIFTING CAPACITY: 40823 kg
TORQUE AT RELIEF PRESSURE: 16802 Nm / 152 bars

ROTATOR
MAXIUM PRESSURE: 5000 psi / 345 bars
RECOMMENDED FLOW: 28 gpm / 106 l/min
Rotator recommended flow will produce a maximum speed of 15 rpm.

CYLINDER
DIAMETER: 89 mm
RECOMMENDED PRESSURE: 4000 psi (276 bars)
PRESSURE RANGE: 3000-5000 psi (207-345 bars)
FLOW RANGE: 14-20 gpm (53-76 l/min)
LOCK VALVES: No
Grapple cylinder maximum flow will theoretically produce a complete grapple open/close in 4 seconds.
