Dealer Comments

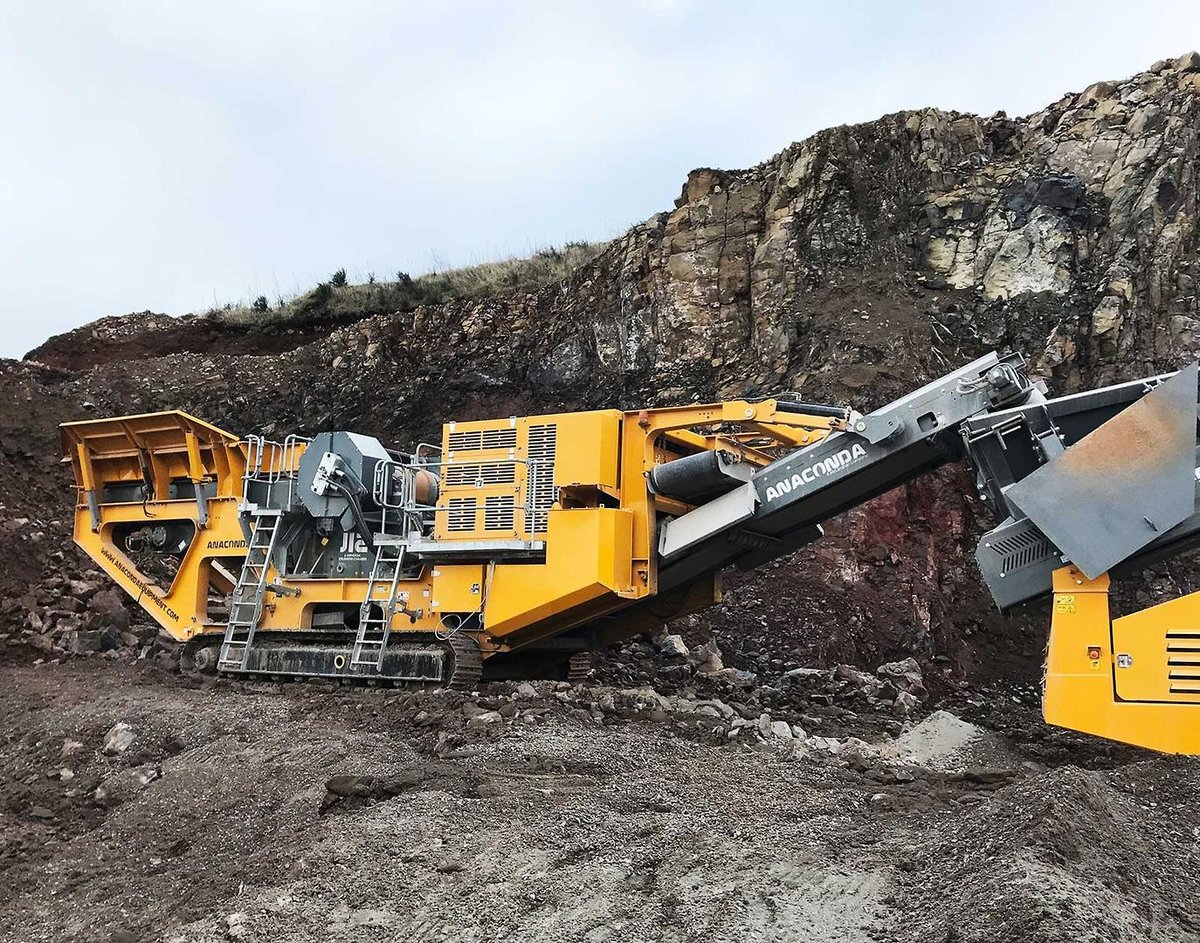

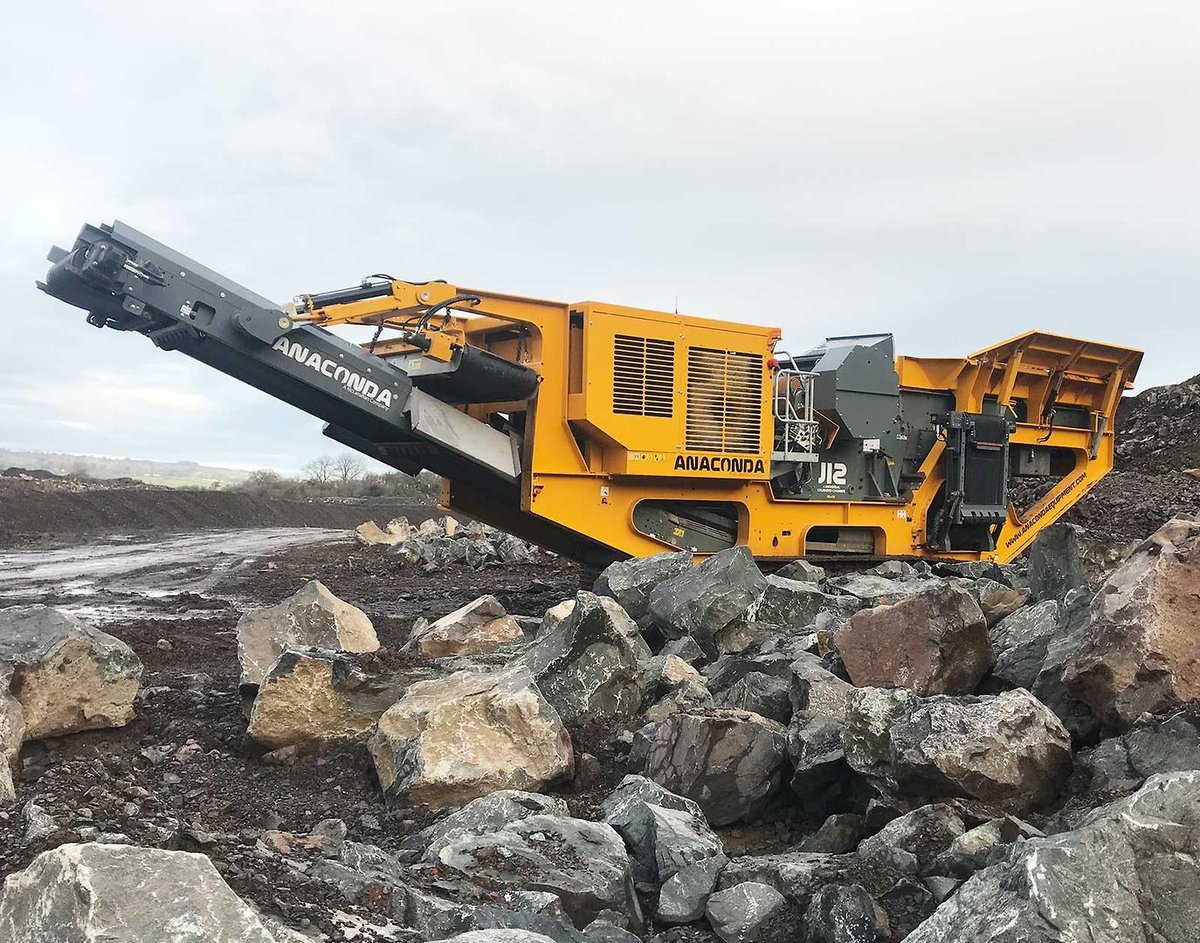

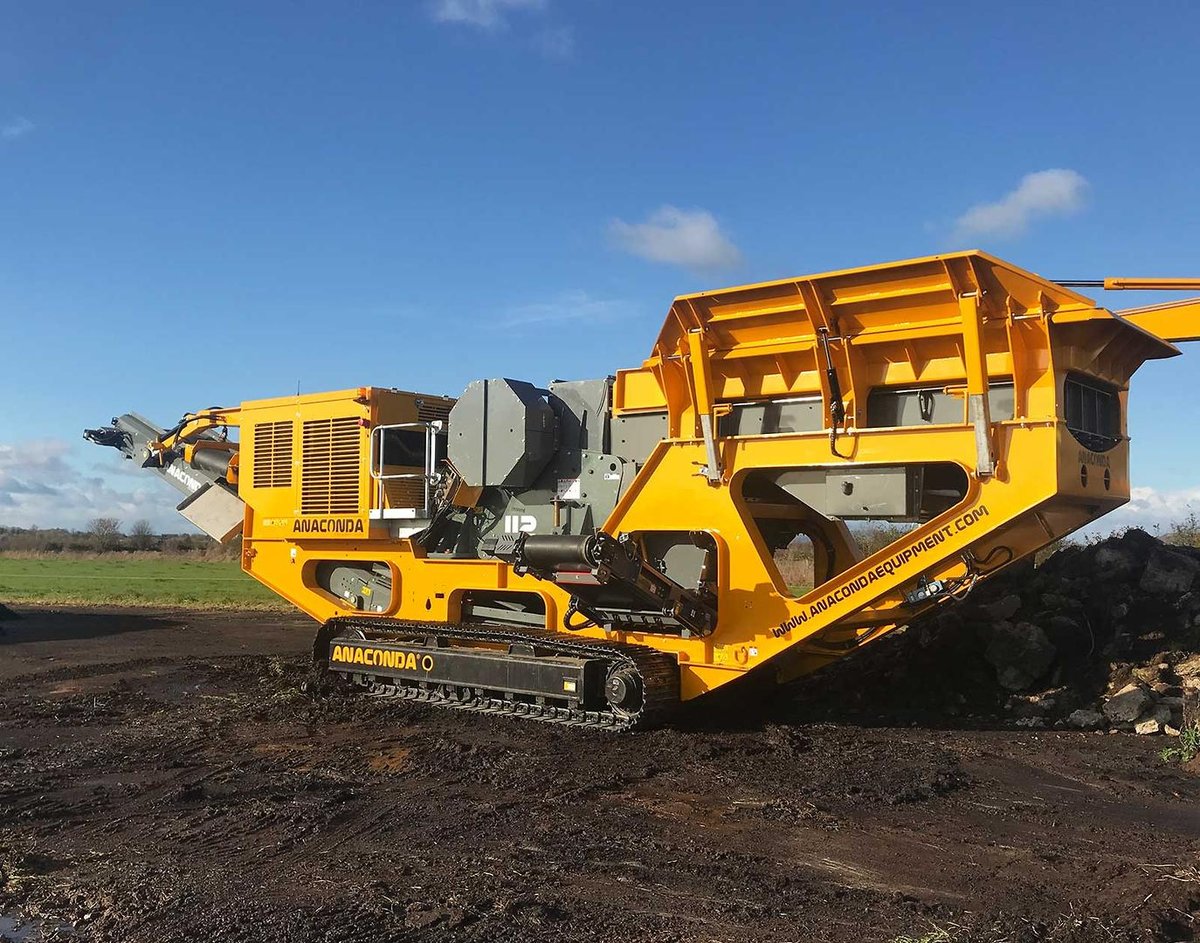

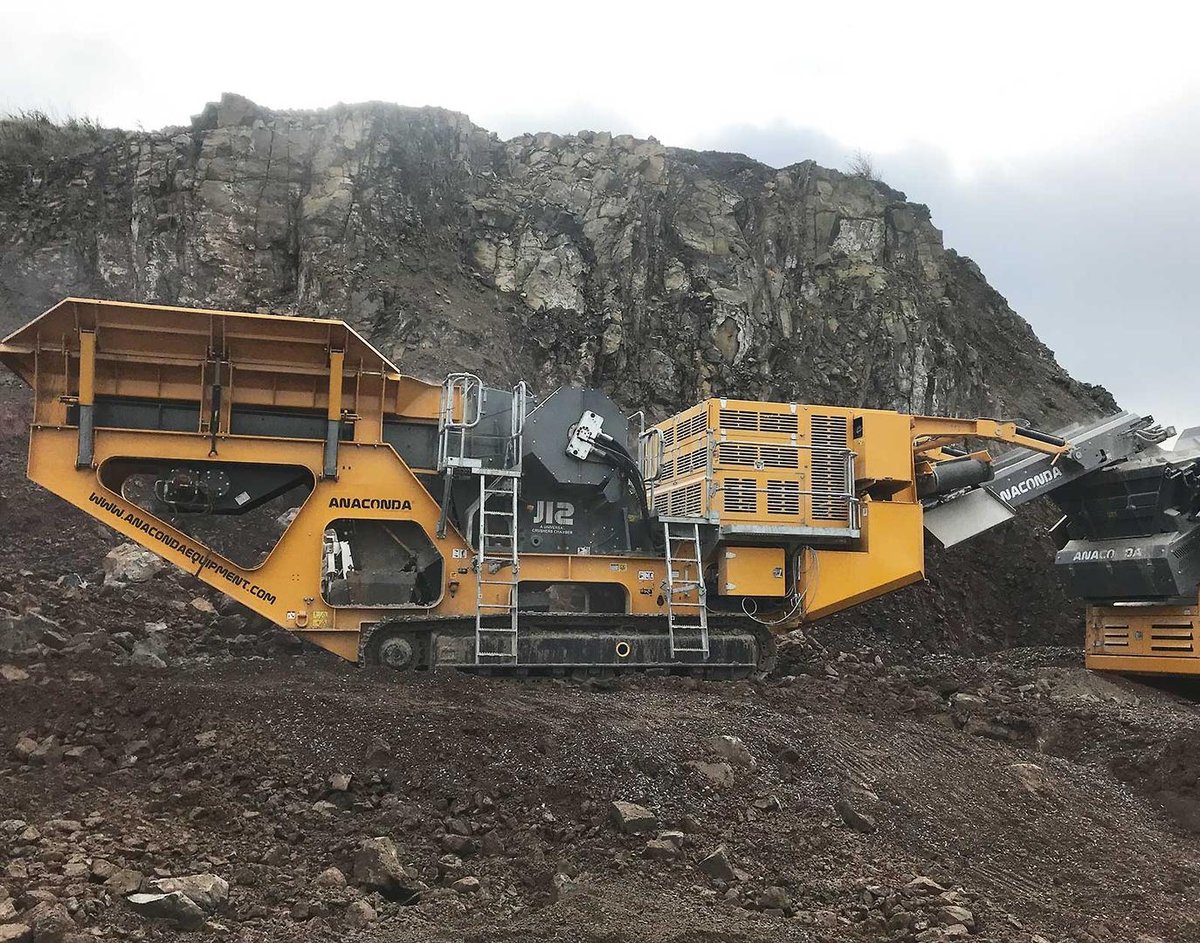

Anaconda J12 Jaw Crusher
WEIGHT: 45350KG
MISC: JAW CRUSHER BOX: MCLANAHAN UNIVERSAL JAW – 1100MM X 700MM (44" X 28"). DIRECT DRIVE HYDRAULIC, 250, 265-280RPM ON ROTOR. TOGGLE SETUP – ALL HYDRAULIC. TENSION ROD SETUP - HYDRAULIC CSS – CLOSED SIDE SETTING – 70-200MM.
POWER PACK: TIER 3 - CUMMINS – 283KW ENGINE, DIESEL TANK 530 LITRE, HYDRAULIC TANK 400 LITRE
OPERATION DIMENSION: LENGTH 14330MM, WIDTH 4270MM, HEIGHT 3830MM
TRANSPORT DIMENSION: LENGTH 14500MM, WIDTH 2990MM, HEIGHT 3395MM
FEEDER: CAPACITY 6.5M3 VIBRATING GRIZZLY FEEDER – LENGTH 4300MM, WIDTH 2020MM – 3015MM WITH EXTENSIONS PRESCREEN SECTION 920MM RADIO REMOTE INCL. FEEDER SPEED CONTROL
The Anaconda J12 Tracked Jaw Crusher is fitted with a 44" (1100mm) x 26" (700mm) direct hydraulic drive Universal Crusher Jaw Chamber. The chamber comes with full hydraulic adjustment and hydraulic tramp release and reset as standard. The direct hydraulic drive means the unit can also be ran in reverse to satisfy a multitude of customer applications.
