Dealer Comments

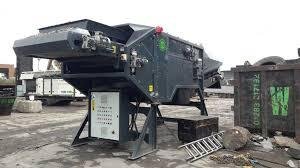

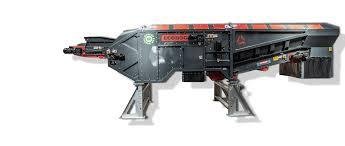

The Ecohog Windshifter is an air separation unit that splits waste or organic material according to density. Based on the customer's needs and the application it will be used in, various models and auxiliaries are available. The beauty is that it's compact and can be standalone or nicely integrated with existing equipment.
KEY FEATURES
Compact.
Precision settings to suit application.
99% separation efficiency depending on the material.
Protects other equipment in processing cycle Shredders.
Low maintenance.
Low operational costs.
Low dust emission due to controlled and recirculated air flow.
Adjustment settings to suit different materials.
INCLUDES
Infeed accelerator conveyor.
Hooded lights conveyor.
Radial blower fans.
Plugs into mains.
SPECIFICATION
Operating Weight 8500kg.
Transport Length 5393mm.
Transport Width 2596mm.
Transport Height 2187mm.
Max Operating Length 5393mm.
Max Operating Width 2596mm.
Max Operating Height 2187mm.
RADIAL BLOWER FANS
Centrifugal medium pressure fans and straight blade impeller.
2 x 7.5kW IP55 geared motors VSD.
Max Speed: 2900rpm.
Max Airflow: 0-3780 m³/h.
Sound pressure 87 dB (A).
ACCELERATOR CONVEYOR
1 x 4kW IP55 geared motor VSD.
Belt Length 2896mm.
Belt Working Width 1500mm.
ELECTRICAL
Manual start / stop of each motor.
Motor disconnect switches for maintenance.
Motor run and trip illumination on panel doors.
Complete with pre start siren and dual channel emergency stop circuit.
SUITABLE FOR
Fixed / static applications.
Construction and Demolition Waste.
Commercial and Industrial Waste.
Electronic and Electrical Waste.
Bottom Ash.
Refuse Derived Fuel (SRF / RDF).
MRF Glass Cleaning.
OPTIONAL EXTRAS
EH-81 Airhog.
Heavy Fraction Discharge Conveyor.
Head Drum Magnet.
Generator.
HYBRID options available.
