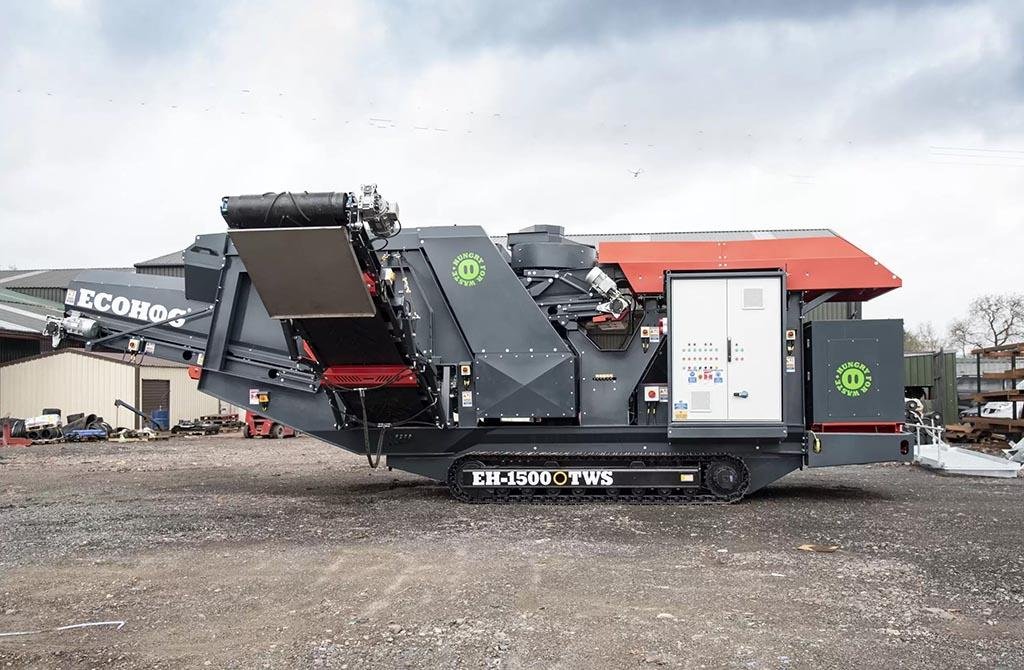

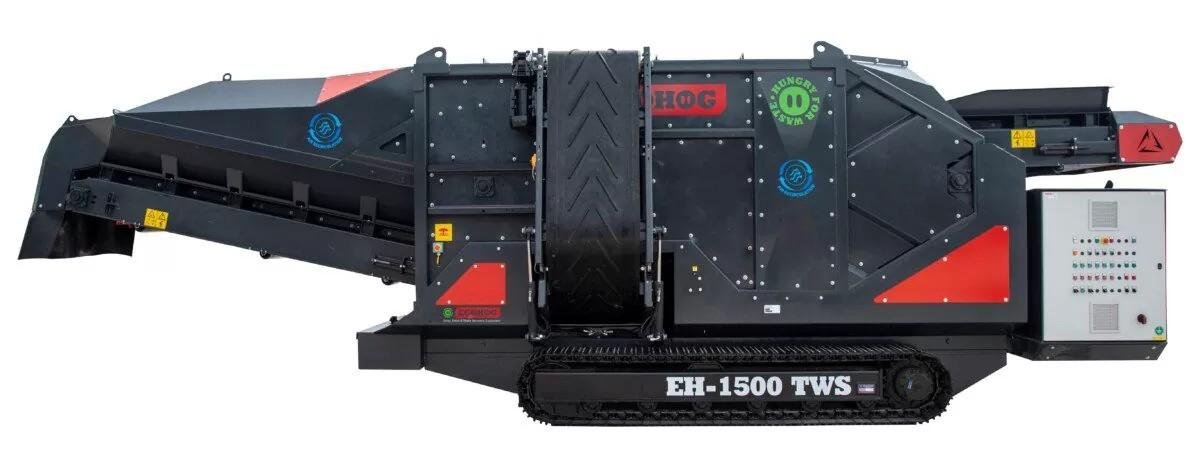

Incorporating air technology, the Ecohog EH1500-TWS Windshifter facilitates fraction
separation based on desired density. The Windshifter Unit controlled EH-81 Airhog suction fan removes light and superlight contaminants and separates the heavy fraction from the light fraction. Opting for a head drum magnet for the recovery of ferrous metals, the EH1500-TWS can achieve a three way split of 10mm-300mm material depending on bulk mass density. This unit has a range of features that positions it most desirable in the marketplace
KEY FEATURES
Tracked option for ease of transportation and site mobility.
3 way split enabling separation of light and heavy fraction and recovery of ferrous metals.
10mm-300mm separation depending on bulk mass density.
Onboard genset.
Integrated lights conveyor.
Suitable for stockpiling.
Integrated heavies conveyor.
Energy efficient motors.
Low maintenance.
Low operational costs.
INCLUDES
Adjustable infeed accelerator conveyor.
Hooded lights conveyor.
Radial blower fans.
Heavies material discharge conveyor with head drum magnet.
Plugs into mains.
SPECIFICATION
Operating Weight 17000kg.
Transport Length 9877mm.
Transport Width 2970mm.
Transport Height 3074mm.
Max Operating Length 9877mm.
Max Operating Width 4465mm.
Max Operating Height 3074mm.
RADIAL BLOWER FANS
Centrifugal medium pressure fans and straight blade impeller.
2 x 7.5kW IP55 geared motors VSD.
Max Speed: 2900rpm.
Max Airflow: 0-3780 m³/h.
Sound pressure 87 dB (A).
ACCELERATOR CONVEYOR
1 x 4kW IP55 geared motor VSD.
Belt Length 2896mm.
Belt Working Width 1500mm.
ELECTRICAL
Manual start / stop of each motor.
Motor disconnect switches for maintenance.
Motor run and trip illumination on panel doors.
Complete with pre start siren and dual channel emergency stop circuit.
SUITABLE FOR
Cleaning Compost / Compost Oversize.
Construction and Demolition Waste.
Commercial and Industrial Waste.
Glass (MRF) Clean up.
Trommel Fines.
Waste Wood processing.
RDF / SRF.
Green Waste.
OPTIONAL EXTRAS
HYBRID options available.
