Dealer Comments

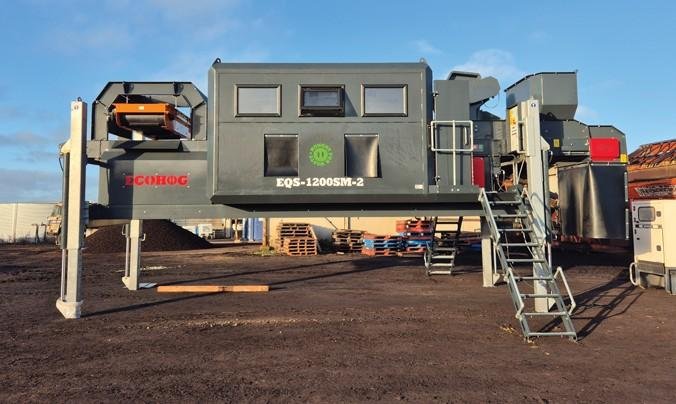

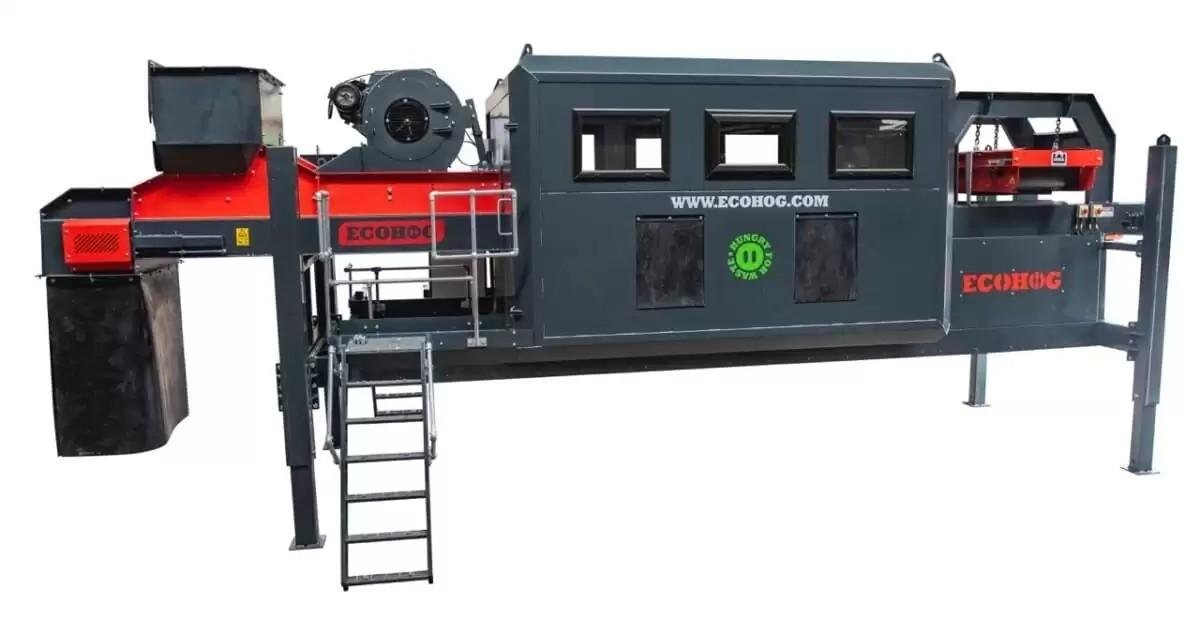

The EQS-1200SM-2 is the ideal downstream quality control station for post Windshifter applications. The EQS-1200SM-2 incorporates an Airhog blower fan and overband magnet offering the end user the capability of removing up to 6 variant contaminants from the valuable core end product. Designed for use with up to 20 yard skips. The control station is compact in size, with integrated controls, access platforms and adjustable support legs, suitable for set up in any location.
KEY FEATURES
2 Bay Quality Control Cabin.
1200mm Wide Picking Belt.
Adjustable Support Legs.
Overband Magnet for Ferrous Discharge.
EH-81 Airhog Blower Fan and Light Discharge.
Access Platform and Stairs.
Low Maintenance.
High Throughput.
Integrated Controls.
SPECIFICATION
Operating Weight 10000kg.
Transport Length 10785mm.
Transport Width 3200mm.
Transport Height 3329mm.
Max Operating Length 10785mm.
Max Operating Width 5112mm.
Max Operating Height 3235mm.

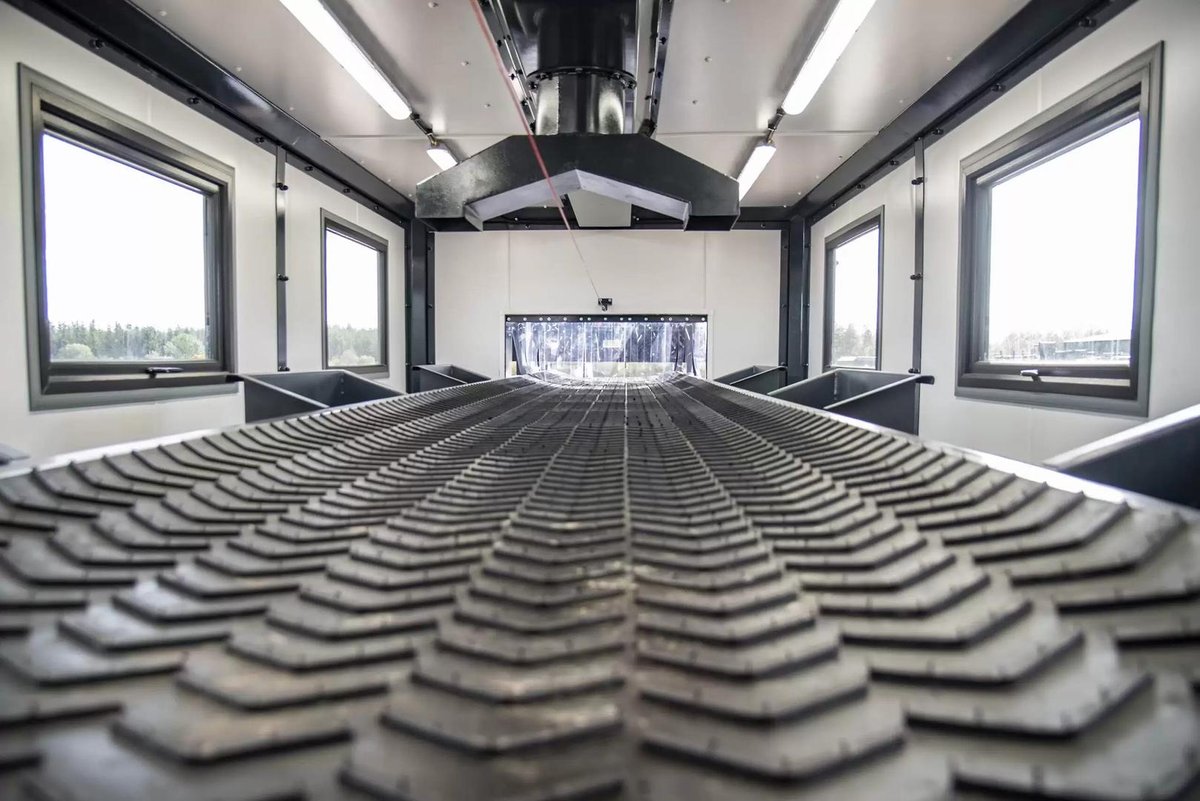

PICKING CABIN
Cabin Length 4012mm.
Cabin Width 3200mm.
Picking Belt Width 1200mm.
VSD geared motors.
Double skin insulated cabin.

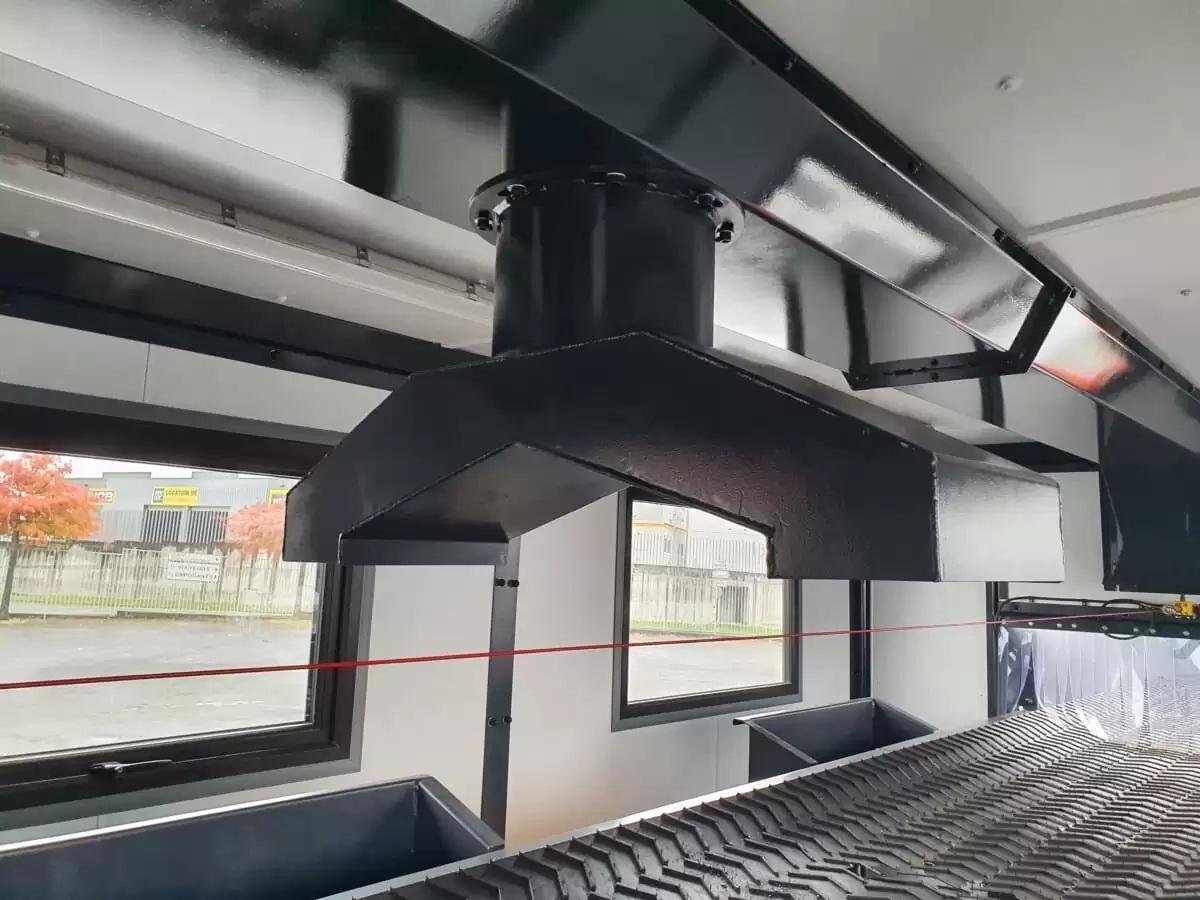

AIRHOG SUCTION SYSTEM
EH-81 Airhog.
Radial Fan.
OVERBAND MAGNET
Cross-belt magnet.
Self-cleaning rubber belt.
DOL Geared motor.
CHASSIS
Steel chassis.
Galvanised steel support legs.
Adjustable height.
Access stairs.
SUITABLE FOR
Construction and Demolition Waste clean up.
Commercial and Industrial Waste clean up.
Skip Waste processing.
Scrap Metal quality control.
MSW.
Landfill Reclaim.
MDR.
RDF / SRF.
Aggregate recycling.
OPTIONAL EXTRAS
HYBRID options available.
