Dealer Comments

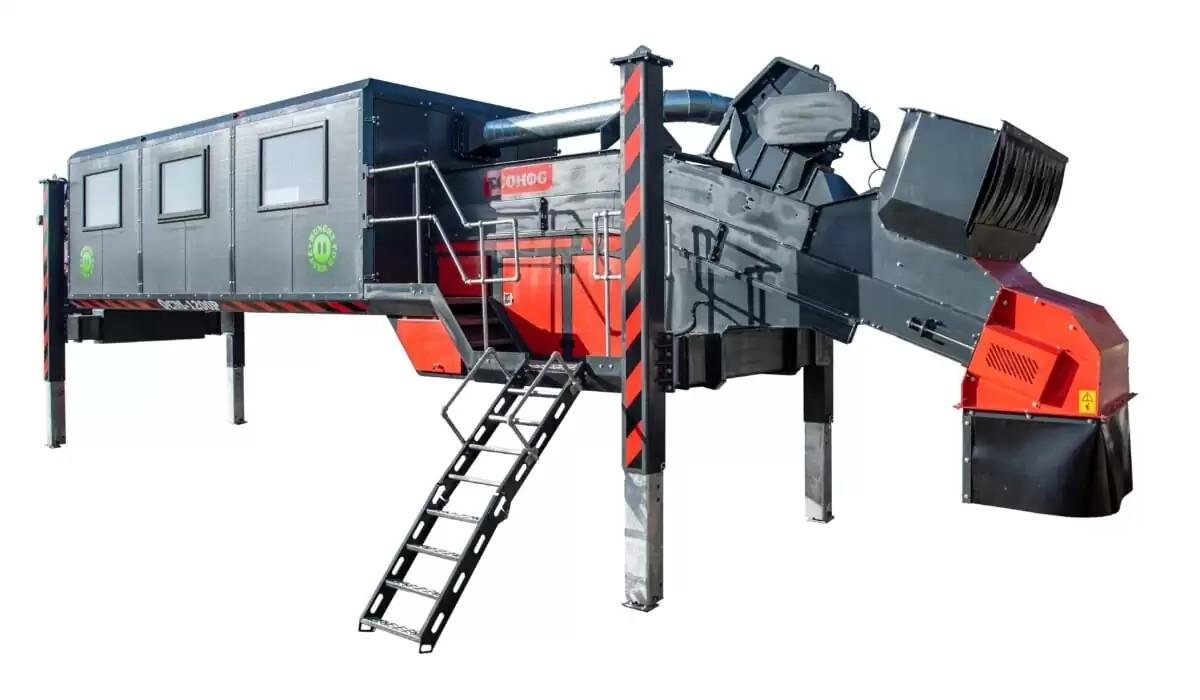

The EQS-1200SM-3 Quality Control Cabin offers waste processors the opportunity to maximise product quality recovery capturing up to 8 materials from 1 unit and is designed for up to 40 yard skip size. The EQS-1200SM-3 incorporates a dual action blower and suction Airhog system for 2 stage super light fraction removal. The 3 bay heavy duty insulated cabin offers up to 6 manual material collection points and features a powerful overband magnet for additional Ferrous metal recovery. the hydraulically operated mobile chassis ensures ease of transportation with adjustable operating heights.
KEY FEATURES
3 Bay Quality Control Cabin.
1200mm Wide Picking Belt.
Hydraulic Support Legs.
Overband Magnet for Ferrous Discharge.
EH-81 Airhog Blower Fan and Light Discharge.
Access Platform and Stairs.

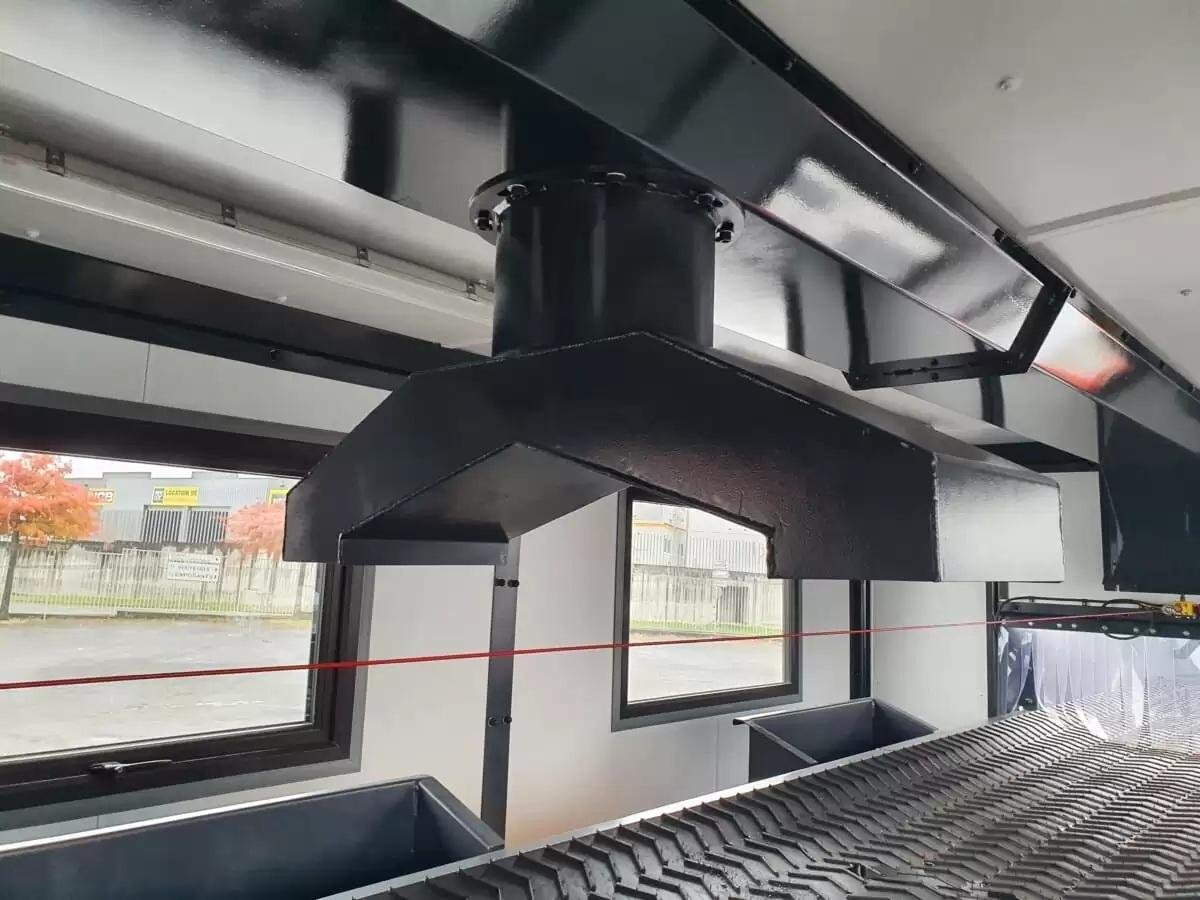

Extraction System Inside Cabin.
Low Maintenance.
High Throughput.
Integrated Controls.
Hydraulically Driven.
SPECIFICATION
Operating Weight 17000kg.
Transport Length 16693mm.
Transport Width 3000mm.
Transport Height 3699mm.
Max Operating Length 16693mm.
Max Operating Width 3000mm.
Max Operating Height 5218mm.

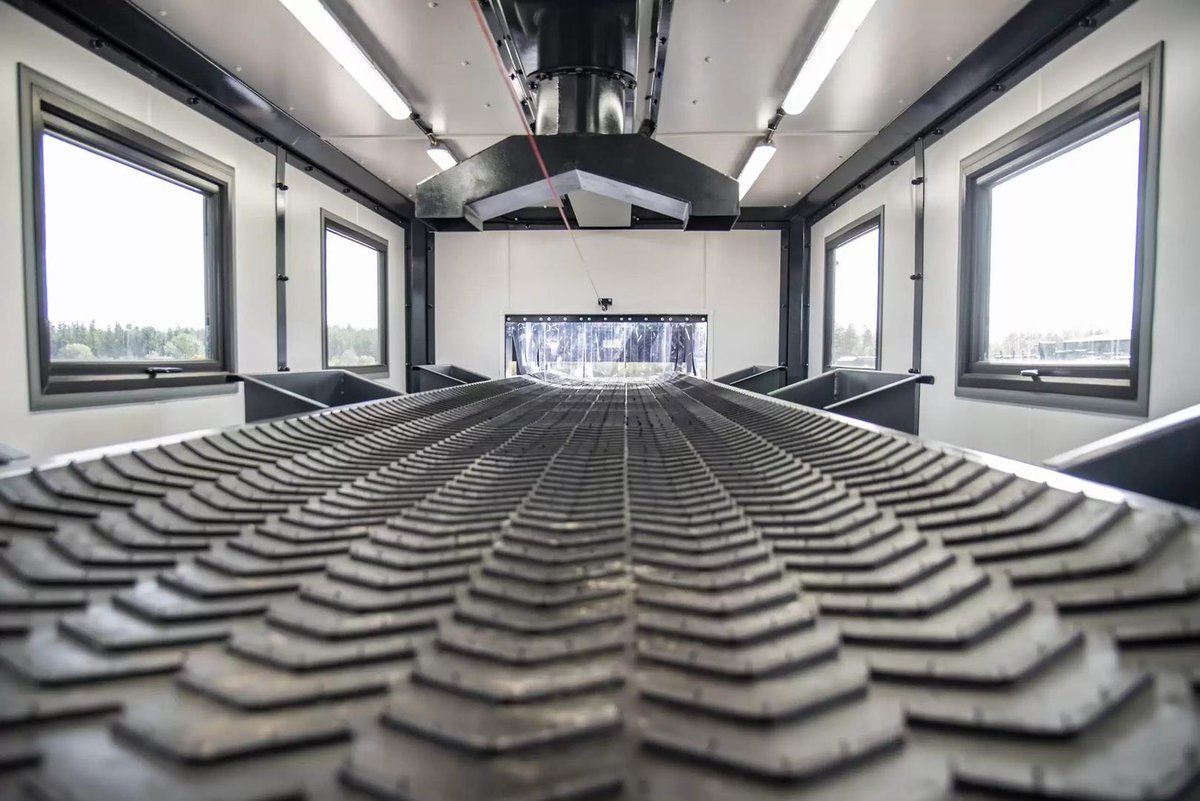

PICKING CABIN
Cabin Length 7630mm.
Cabin Width 2947mm.
Picking Belt Width 1200mm.
VSD geared motors.
Double skin insulated cabin.
AIRHOG SUCTION SYSTEM
EH-81 Airhog.
Radial Fan.
OVERBAND MAGNET
Cross-belt magnet.
Self-cleaning rubber belt.
DOL Geared motor.
CHASSIS
Steel chassis.
Galvanised steel support legs.
Adjustable height - hydraulically driven.
Access stairs.
POWER SUPPLY
Genset onboard.
SUITABLE FOR
Construction and Demolition Waste clean up.
Commercial and Industrial Waste clean up.
Skip Waste processing.
Scrap Metal quality control.
MSW.
Landfill Reclaim.
MDR.
RDF / SRF.
Aggregate recycling.
OPTIONAL EXTRAS
HYBRID options available.
