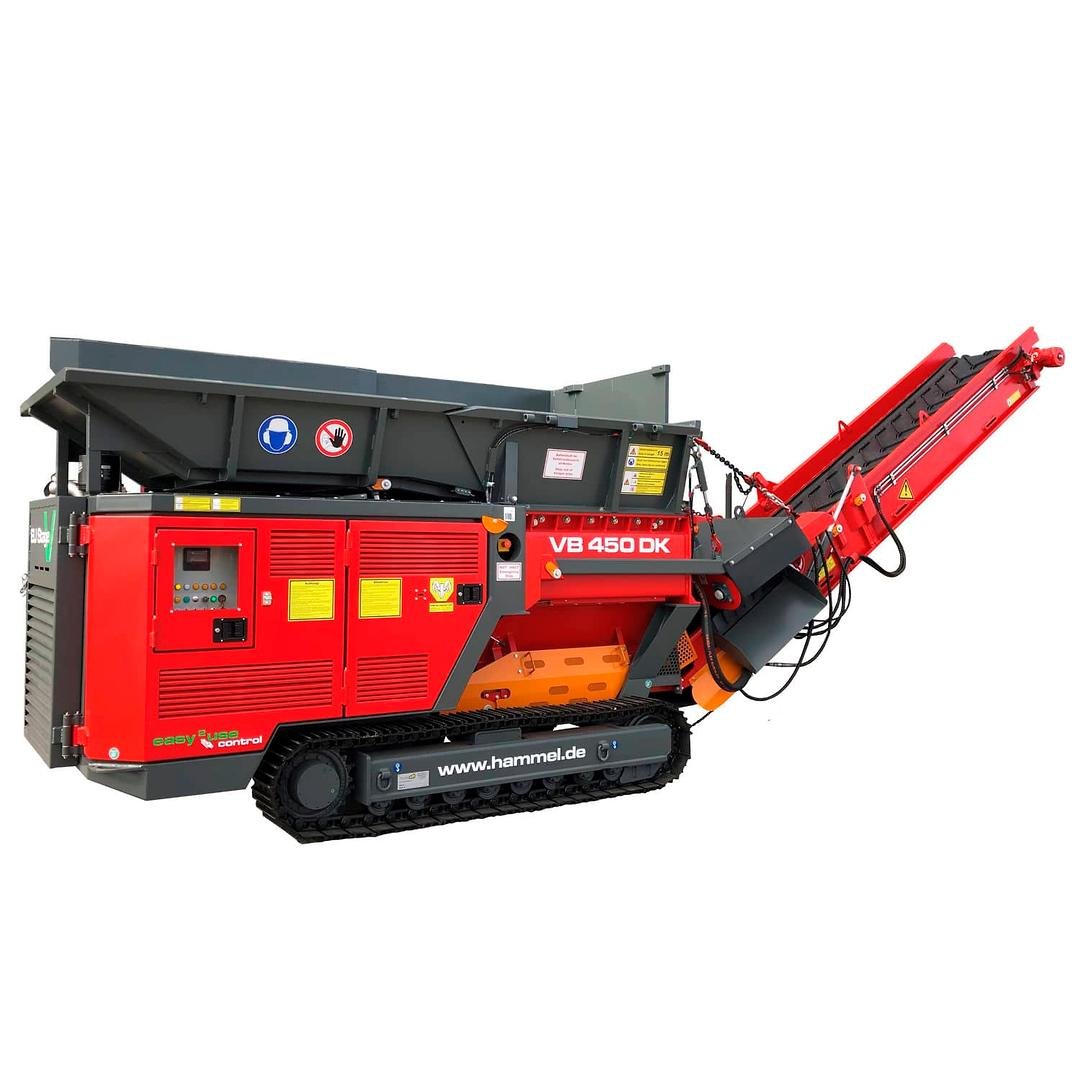

Hammel VB 450 DK

Dealer Comments

ENGINE
Cummins F3.8 Diesel Engine Stage 5
Performance 152 HP / 154 PS

GEAR BOX
Max torque of 80,000 Nm
Engine speed 2,100 rpm

FUEL CAPACITY
160 Litre

DISCHARGE BELT
Belt width 800mm
Discharge height 2,800mm bei 33°

SHAFTS
Working length 1,212mm
Total length 1,540mm
Diameter 450mm
Rotation of shafts in min-1: 8-32

HOPPER
Hopper volume 2m³
Main and tilting hopper with surface for long materials

PERFORMANCE
Capacity up to 8 T/Hour on mixed materials

WEIGHT
Approx 11,000kgs with additional equipment

TRACKS
Width 300mm

OPERATING DIMENSIONS
Length 7,300mm / Width 1,700mm / Height 3,600mm

TRANSPORT DIMENSIONS
Length 5,900mm / Width 1,700mm / Height 2,400mm
