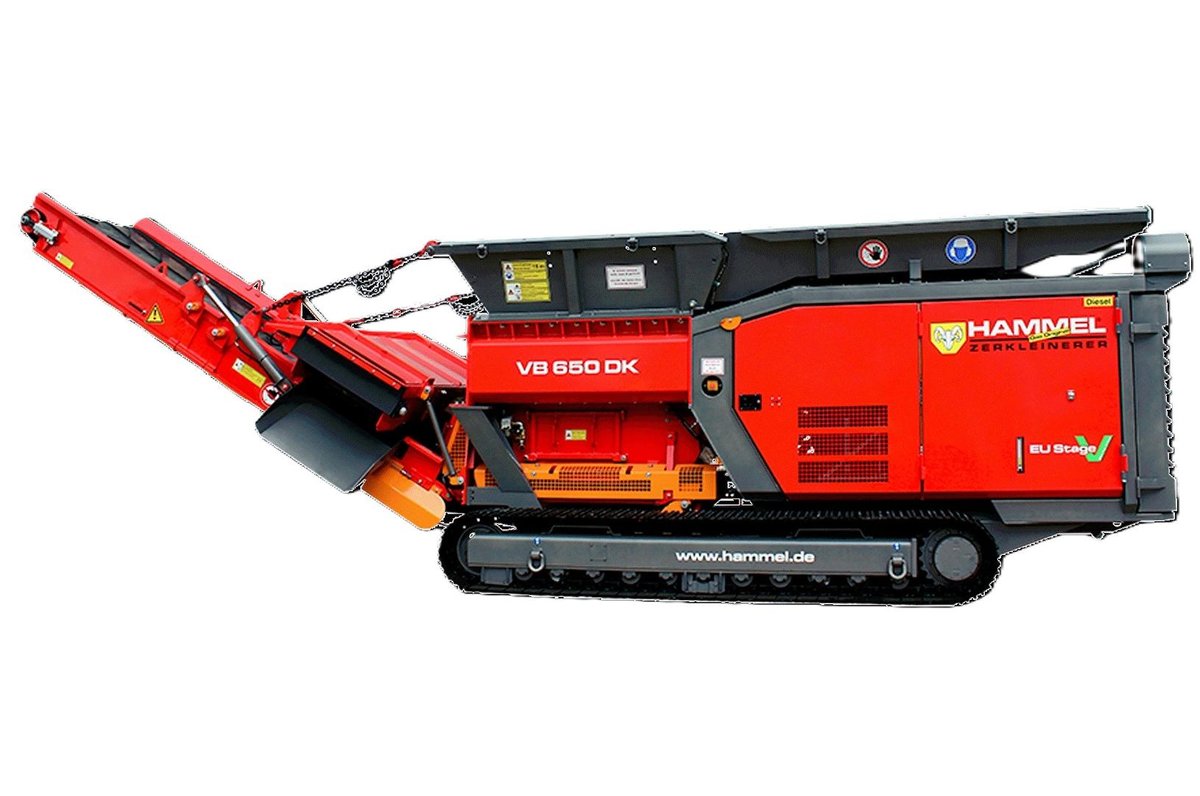

Hammel VB 650 DK

Dealer Comments

ENGINE
Cummins B6.7 Diesel Engine Stage 5
Performance 275 HP / 280 PS

GEAR BOX
Max torque of 160,000 Nm
Engine speed 1,900 rpm

FUEL CAPACITY
500 Litre

DISCHARGE BELT
Belt width 1,400mm
Discharge height 3,300mm bei 33°

SHAFTS
Working length 1,497mm
Total length 1,874mm
Diameter 650mm
Rotation of shafts in min-1: 13-33

HOPPER
Hopper volume 5m³
Main and tilting hopper with surface for long materials

PERFORMANCE
Capacity up to 15 T/Hour on mixed materials

WEIGHT
Approx 17,000kgs with additional equipment

TRACKS
Width 400mm

OPERATING DIMENSIONS
Length 9,400mm / Width 2,500mm / Height 4,500mm

TRANSPORT DIMENSIONS
Length 7,700mm / Width 2,500mm / Height 2,700mm
