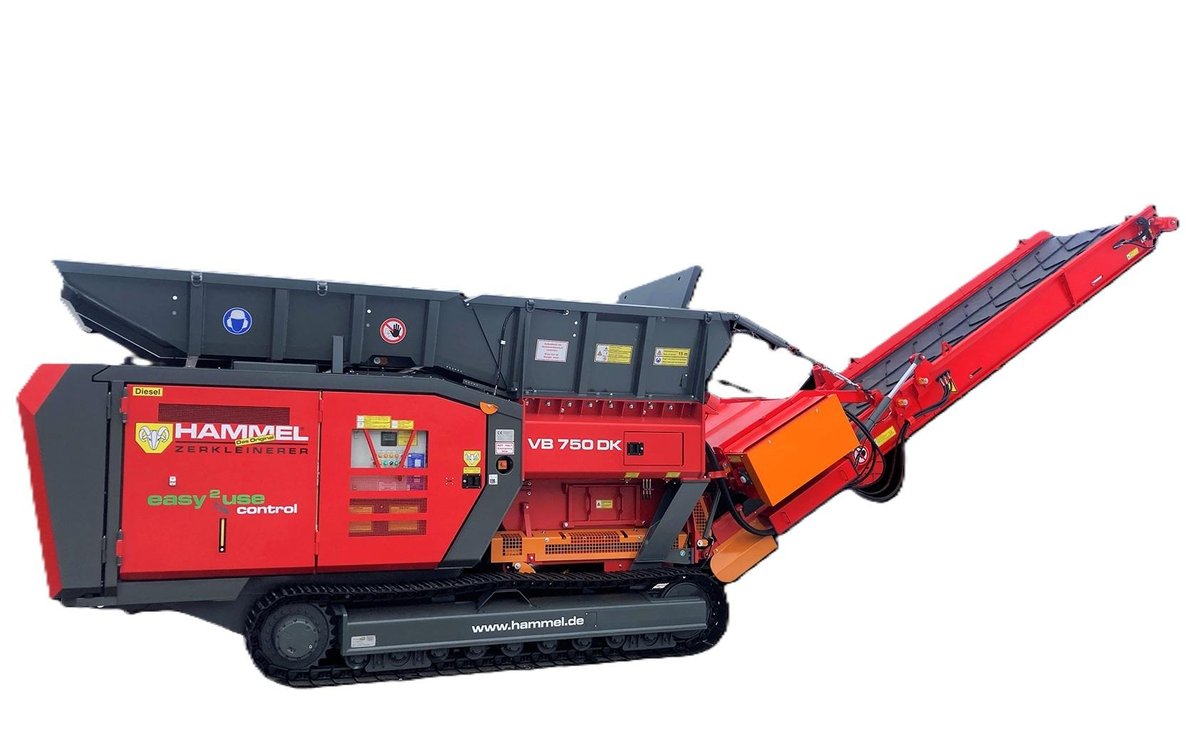

Hammel VB 750 DK

Dealer Comments

ENGINE
CAT C9.3 Diesel Engine Stage 5
Performance 374 HP / 380 PS

GEAR BOX
Max torque of 240,000 Nm
Engine speed 2,100 rpm

FUEL CAPACITY
470 Litre

DISCHARGE BELT
Belt width 1,400mm
Discharge height 4,600mm bei 33°

SHAFTS
Working length 2,000mm
Total length 2,348mm
Diameter 650mm
Rotation of shafts in min-1: 40

HOPPER
Hopper volume 8m³
Main and tilting hopper with surface for long materials

PERFORMANCE
Capacity up to 30 T/Hour on mixed materials

WEIGHT
Approx 23,000kgs with additional equipment

TRACKS
Width 400mm

OPERATING DIMENSIONS
Length 11,900mm / Width 2,500mm / Height 5,600mm

TRANSPORT DIMENSIONS
Length 8,000mm / Width 2,500mm / Height 2,900mm
