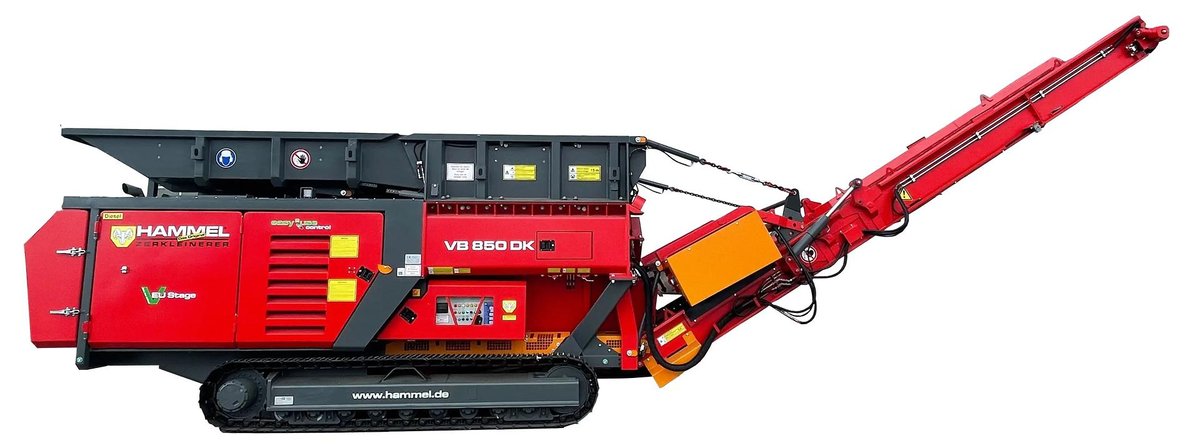

Hammel VB 850 DK

Dealer Comments

ENGINE
Cummins X12 Diesel Engine Stage 5
Performance 518 HP / 525 PS

GEAR BOX
Max torque of 320,000 Nm
Engine speed 1,900 rpm

FUEL CAPACITY
680 Litre

DISCHARGE BELT
Belt width 1,400mm
Discharge height 5,000mm bei 33°

SHAFTS
Working length 1,700mm
Total length 2,350mm
Diameter 650mm
Rotation of shafts in min-1: 7-24

HOPPER
Hopper volume 8m³
Main and tilting hopper with surface for long materials

PERFORMANCE
Capacity up to 50 T/Hour on mixed materials

WEIGHT
Approx 34,000kgs with additional equipment

TRACKS
Width 400mm

OPERATING DIMENSIONS
Length 12,800mm / Width 2,600mm / Height 6,000mm

TRANSPORT DIMENSIONS
Length 8,600mm / Width 2,600mm / Height 3,200mm
