Dealer Comments

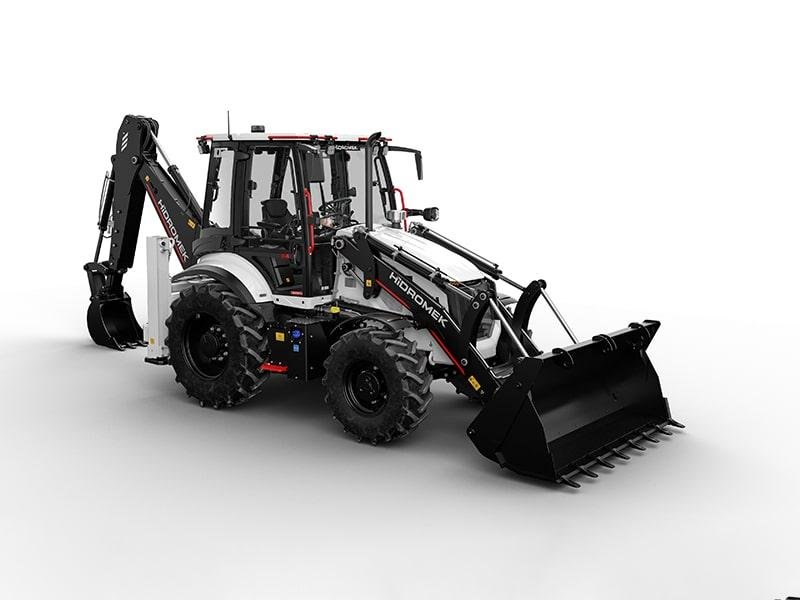

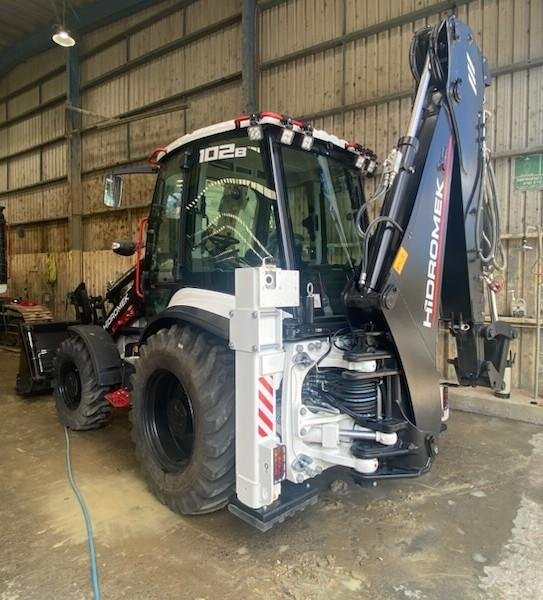

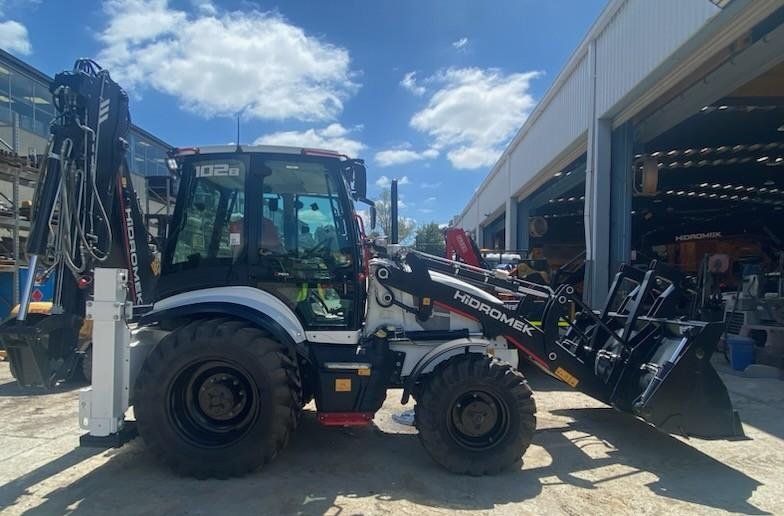

POWER: 74.5 kw (100 hp), Operating Weight: 9,500 kg

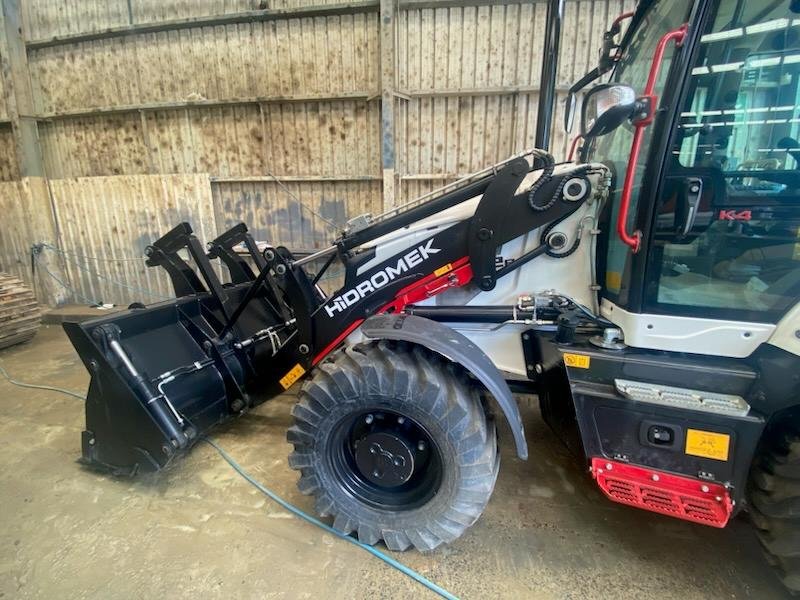

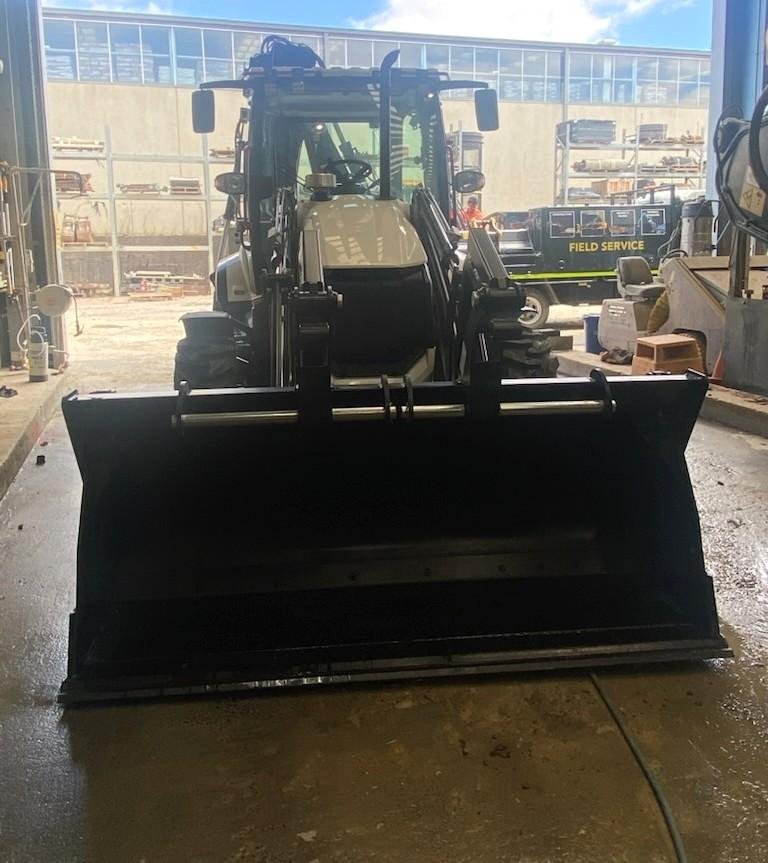

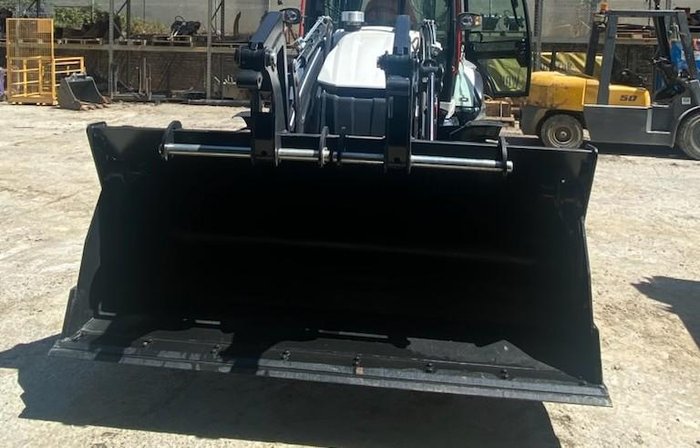

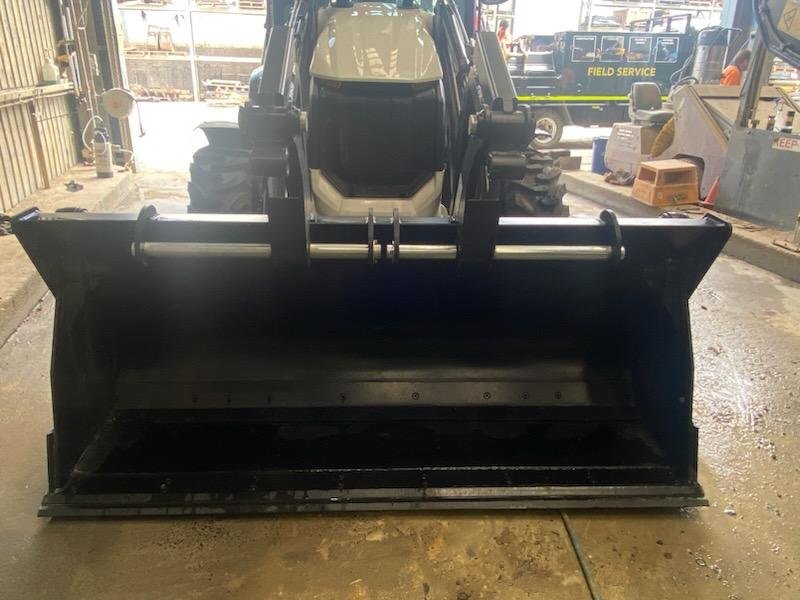

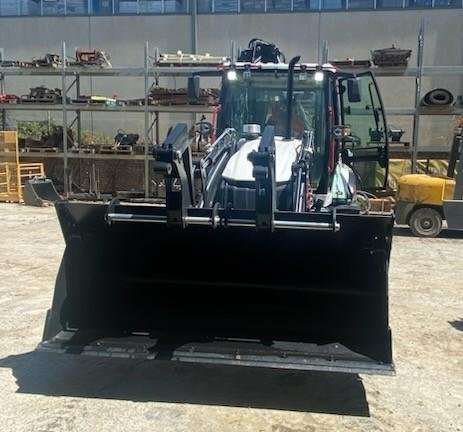

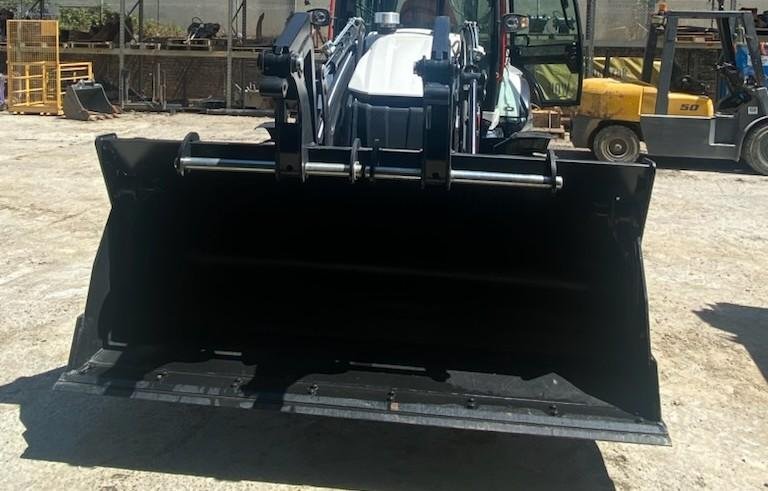

1.1 m3 6-in-1 Front Bucket (BOCE) with roll over forks

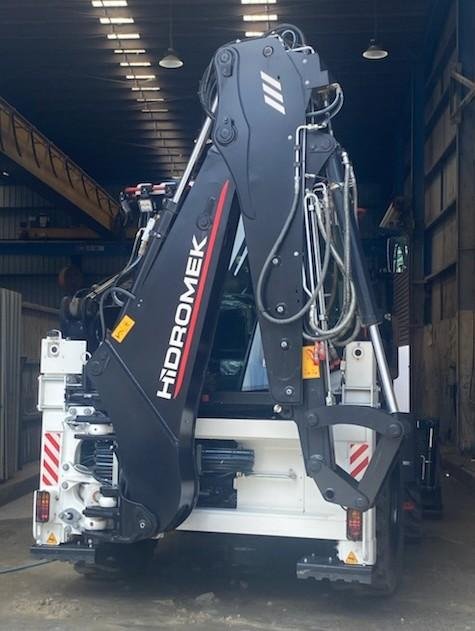

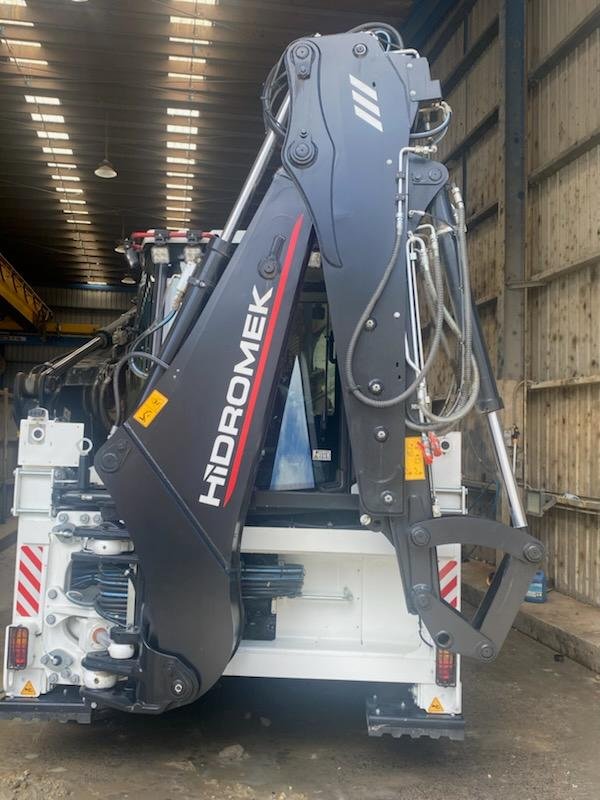

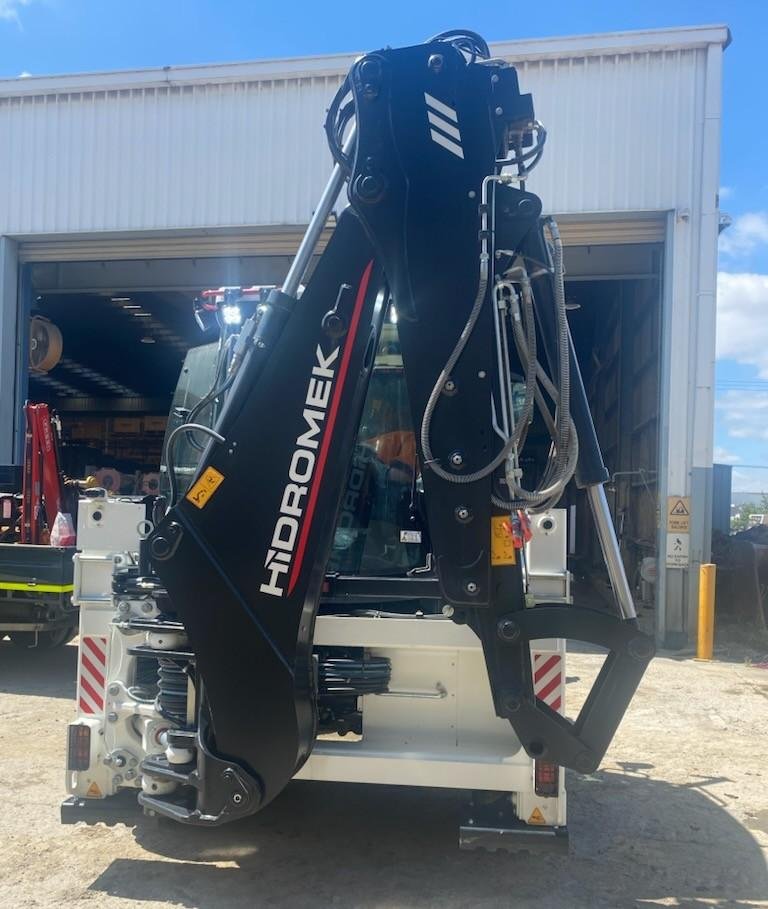

8.18m extending Backhoe arm, Hydraulic side shifter
Tyres 16.9 – 28 Rear, 16/70-20 Front
ENGINE & RELATED ITEMS
Perkins 11040-44TA engine, 4 Cycle, 4 Cylinder Turbocharged, Phase III-A (Tier 3)
Turbo charged, inter-cooled, direct Injection, electronic controlled diesel engine.
74.5 kw (100 hp) @ 2200 rpm. 410 Nm Torque @ 1300 rpm
EPA Tier IIIA regulation arrangement.
DRIVES & BRAKES
Heavy-duty type automatic transmission, 6 forward 3 reverse gear
• 1st Gear 5.6 km/h
• 2nd Gear 8.9 km/h
• 3rd Gear 11.4 km/h
• 4th Gear 18.1 km/h
• 5th Gear 23 km/h
• 6th Gear 40 km/h
Electric controlled 2-wheel drive or 4-wheel drive selection, Transmission oil cooler,
Forward-reverse direction control on front loader control lever TIPSHIFT
Hydraulic actuated, Wet Disc brakes actuate on all 4 Wheels.
HYDRAULIC SYSTEM
Flow sharing and Flow charging Hydraulic System. Variable axial piston type, 163 L/min.
Pilot pressure-controlled type. Anti-shock and anti-cavitation valves
As a standard equipment, FLOWSHARING valves provides excellent hydraulic control independently, allows simultaneous boom, arm and bucket motions.
CONTROL
Ride Control System
Hydrodynamic load-sensitive steering
Single lever pilot loader control. Two joy stick backhoe control with pattern changer
Hydraulic side shift backhoe
FNR Tip Switch Kick-Down Function (forward/neutral/reverse).
Auto return to dig button (RTD)
6 in 1 Clam opening and closing proportional button
ELECTRICAL SYSTEM
Alternator 85 Amp, Batteries Maintenance-free 165 amp / hour
Starter motor 24V
SAFETY EQUIPMENT
Factory ROPS certified cab.
Security valves on backhoe stabilizers. Anti-slip plates.

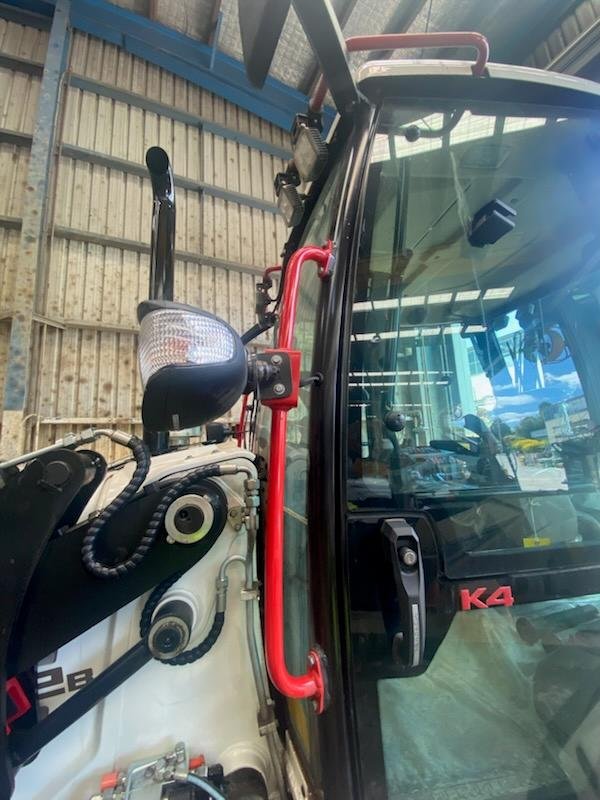

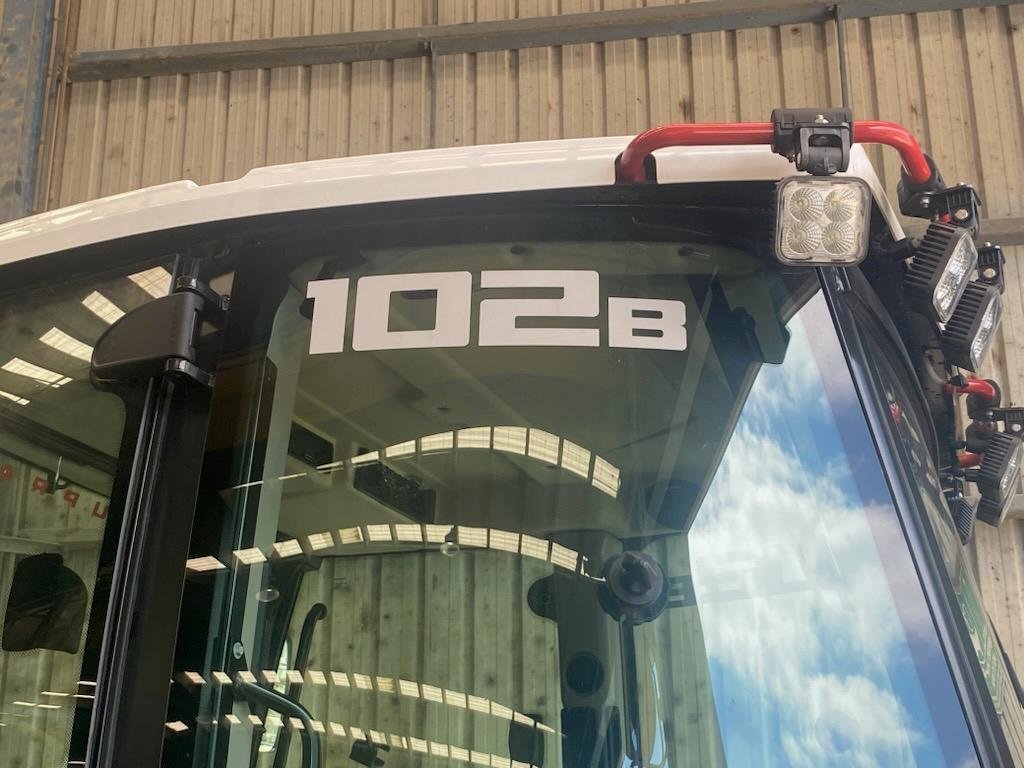

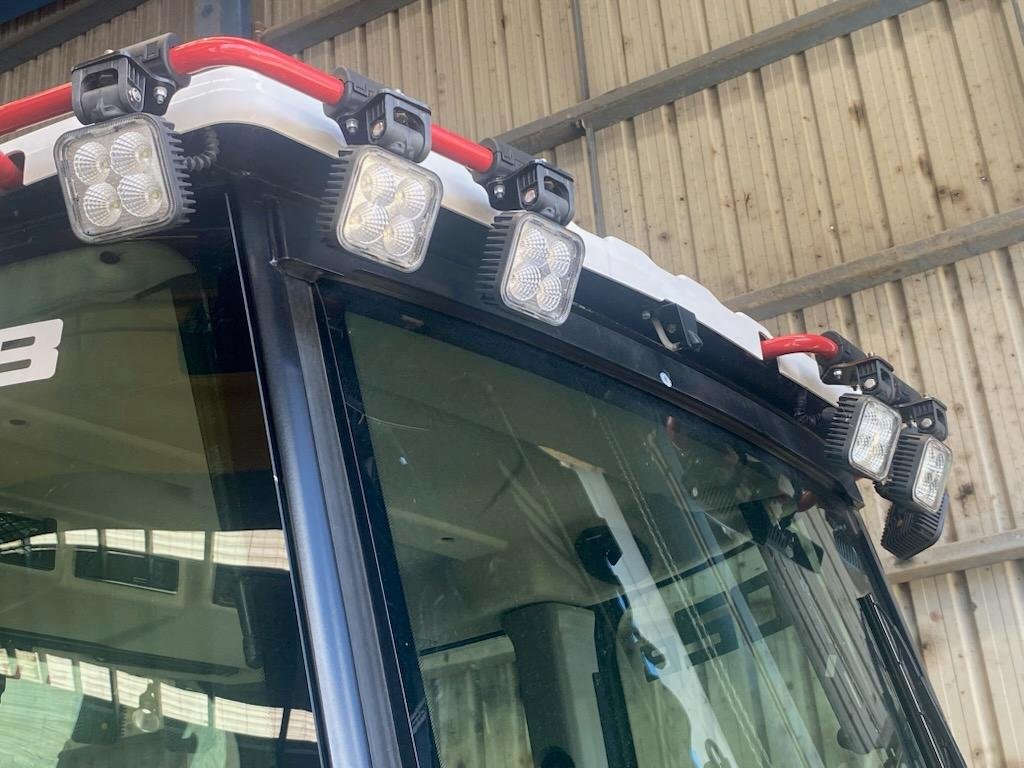

Safety glass windows. Four front LED working lights. Four Rear LED working lights. Fenders and step lights
Hydraulic backhoe boom lock.
Dual Brake Pedals. Emergency Brake accumulator.

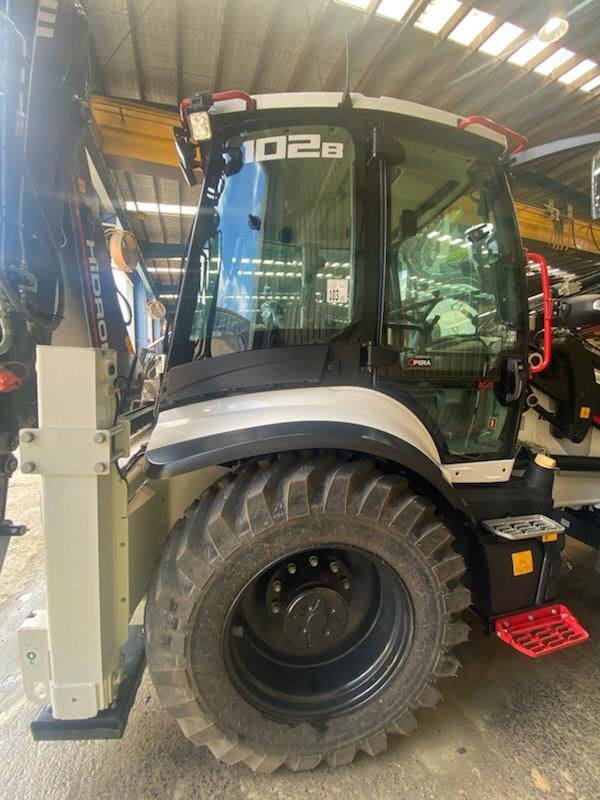

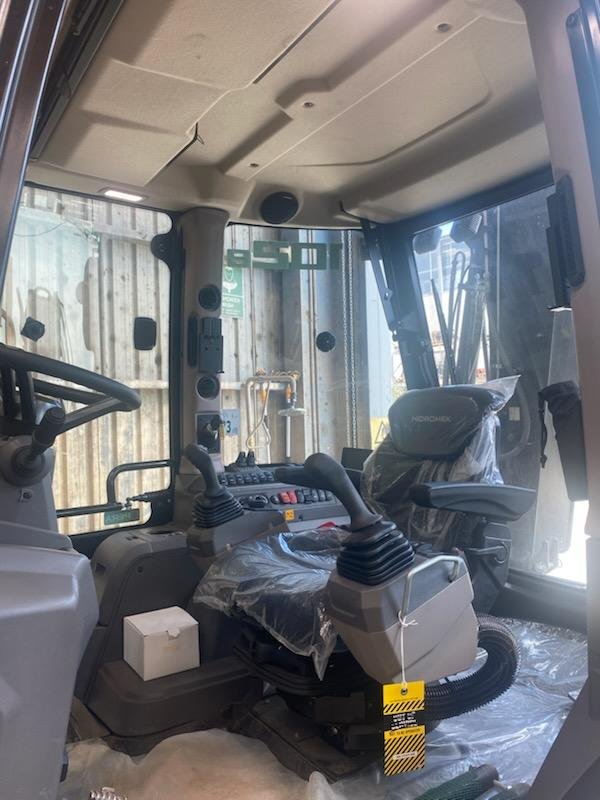

OPERATOR ENVIRONMENT
Climate controlled, advanced air-conditioned cabin (15 outlets). Cool box

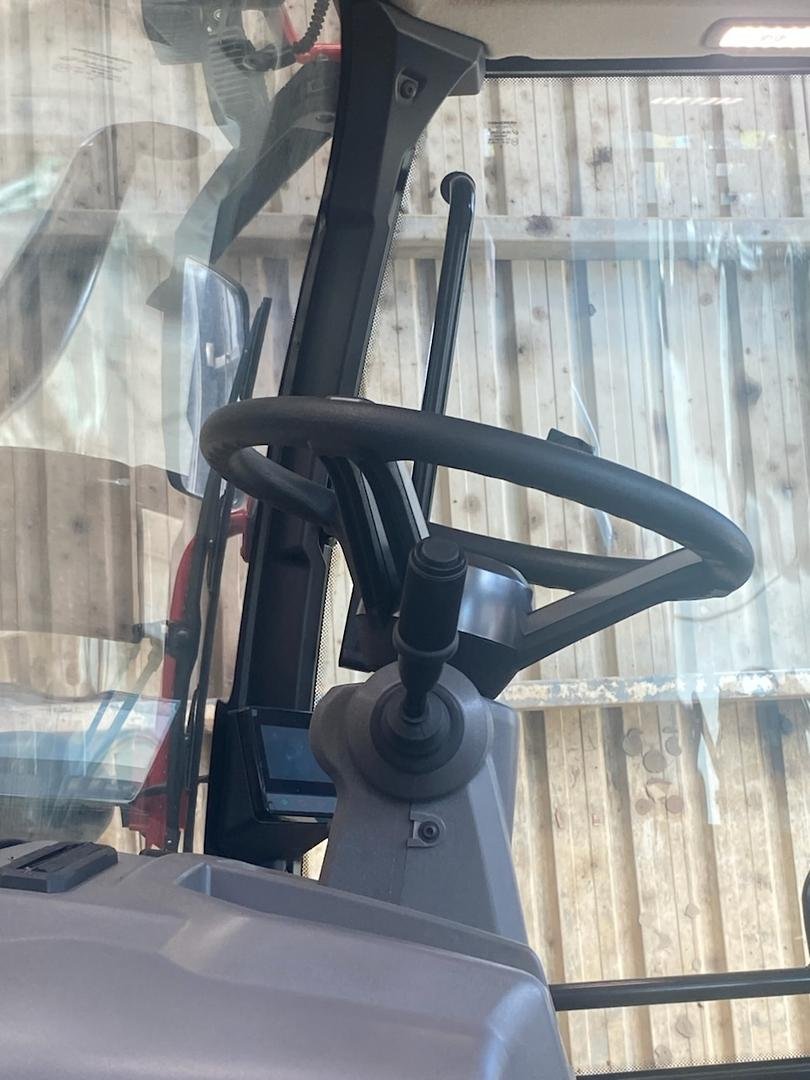

Adjustable steering wheel. Ergonomically designed and located control panels
CD/MP3 player. Air Suspension seat. Adjustable backhoe control joy sticks.
OTHER STANDARD EQUIPMENT (Factory Fitted Options)
Loader Bucket Cylinder Check Valve
Loader Arm Cylinder Check Valve
Backhoe Side Check Valve Boom and Arm
Backhoe QC Line

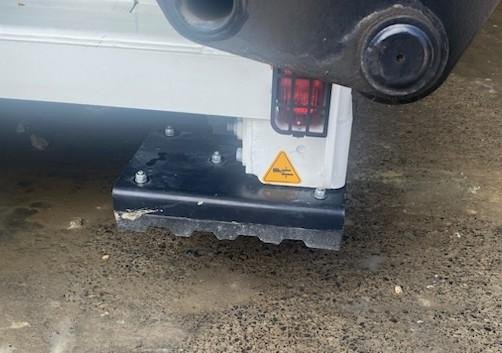

Stabilizer Pads
D/A piping
Extra Hydraulic Line
Hyd. Side Shifter
Without Backhoe Bucket but with Pin Set
Front Bucket 1.1m3 Bolt on Cutting Edge
Hardened Pins 2 sets
Bluetooth
MATERIALS
Comes with Delivery kit, Operators manual, Parts manual, Risk Assessment
Free 150 Hour First Service Included
WARRANTY
3 years / 6000 hours or whichever occurs first.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.
