Dealer Comments

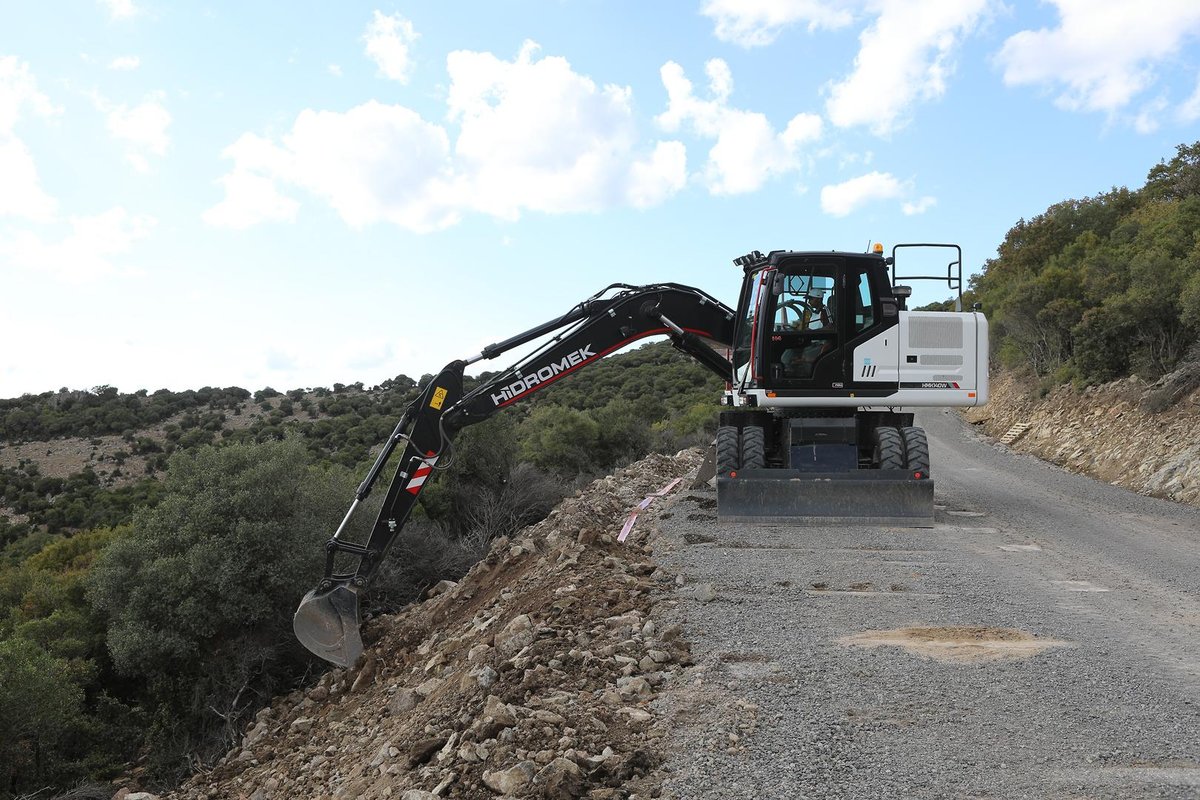

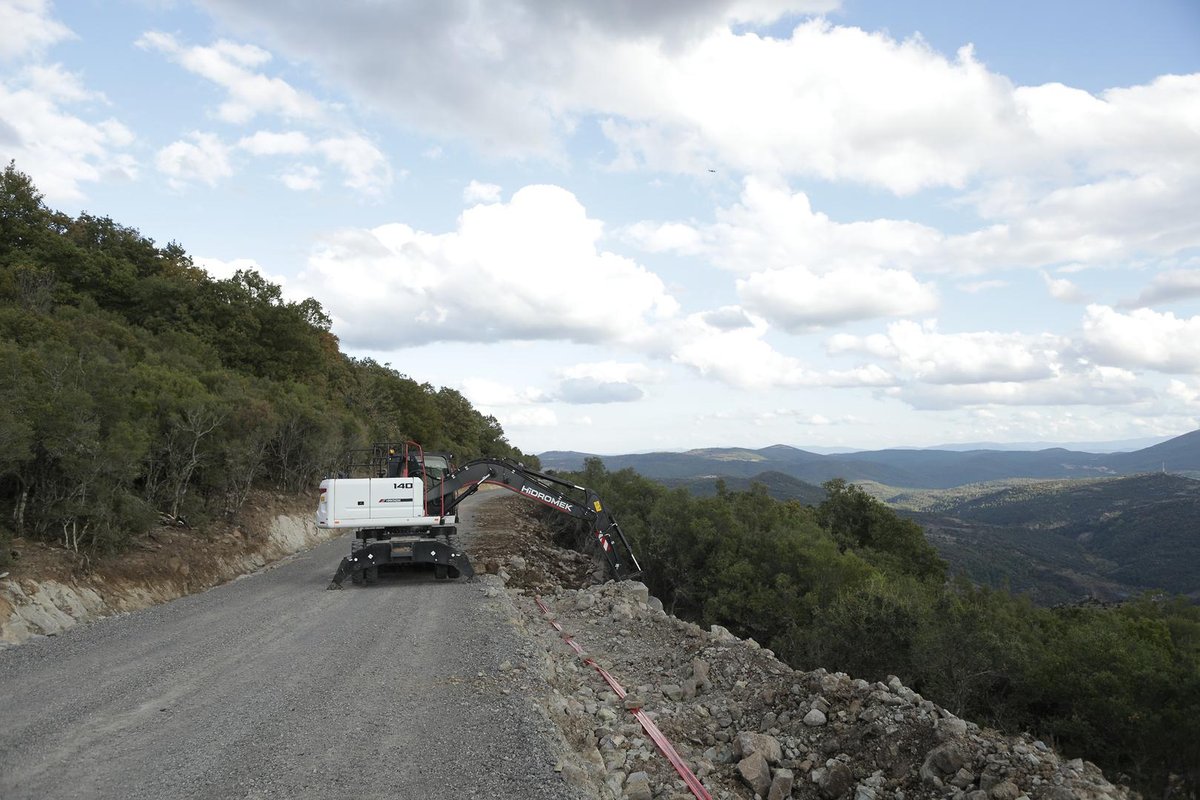

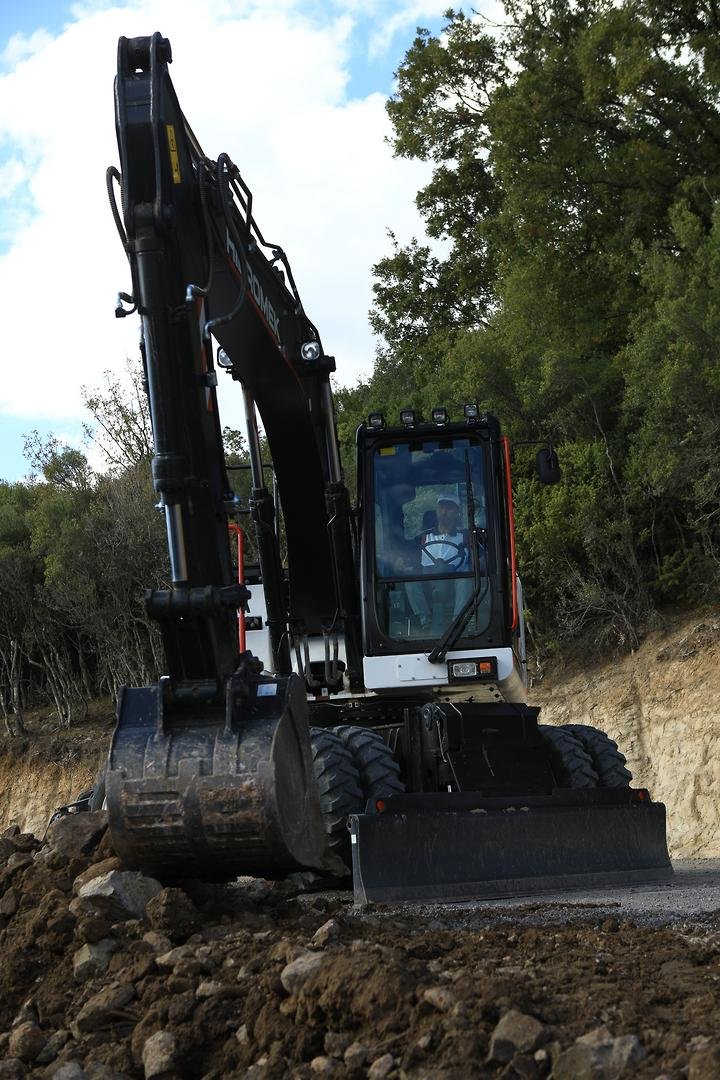

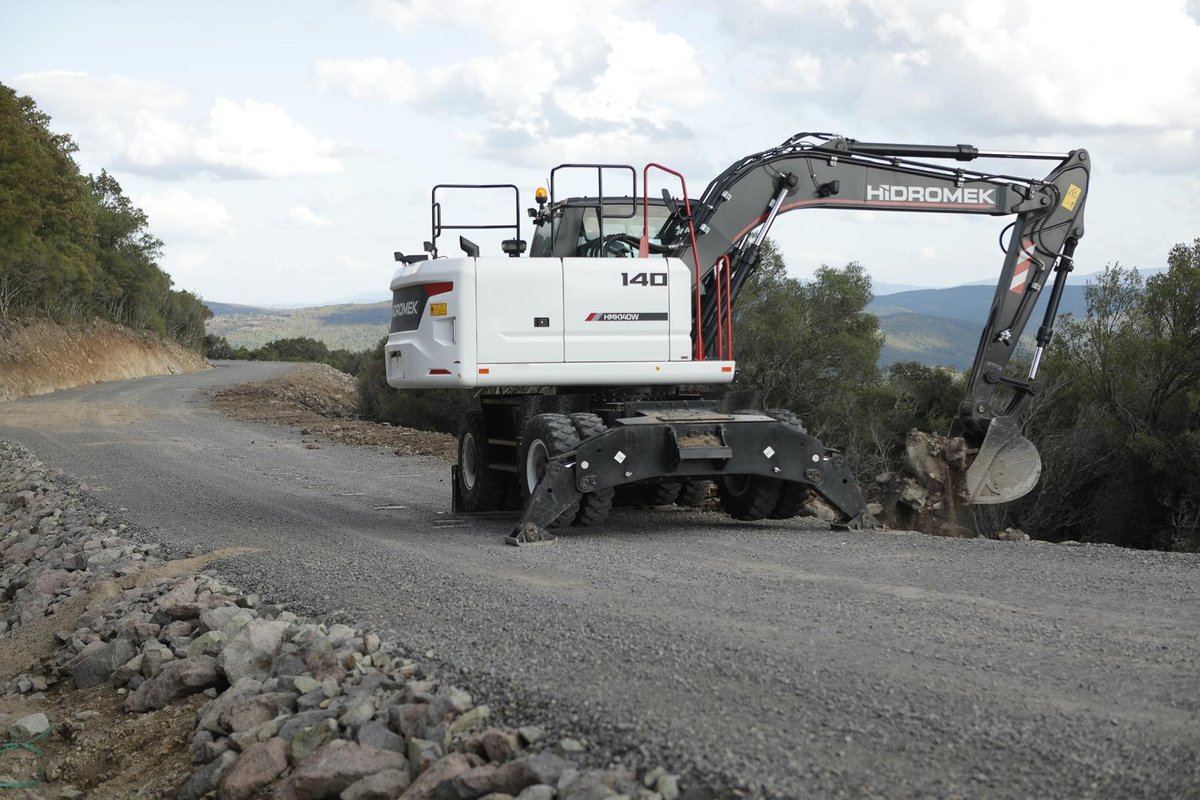

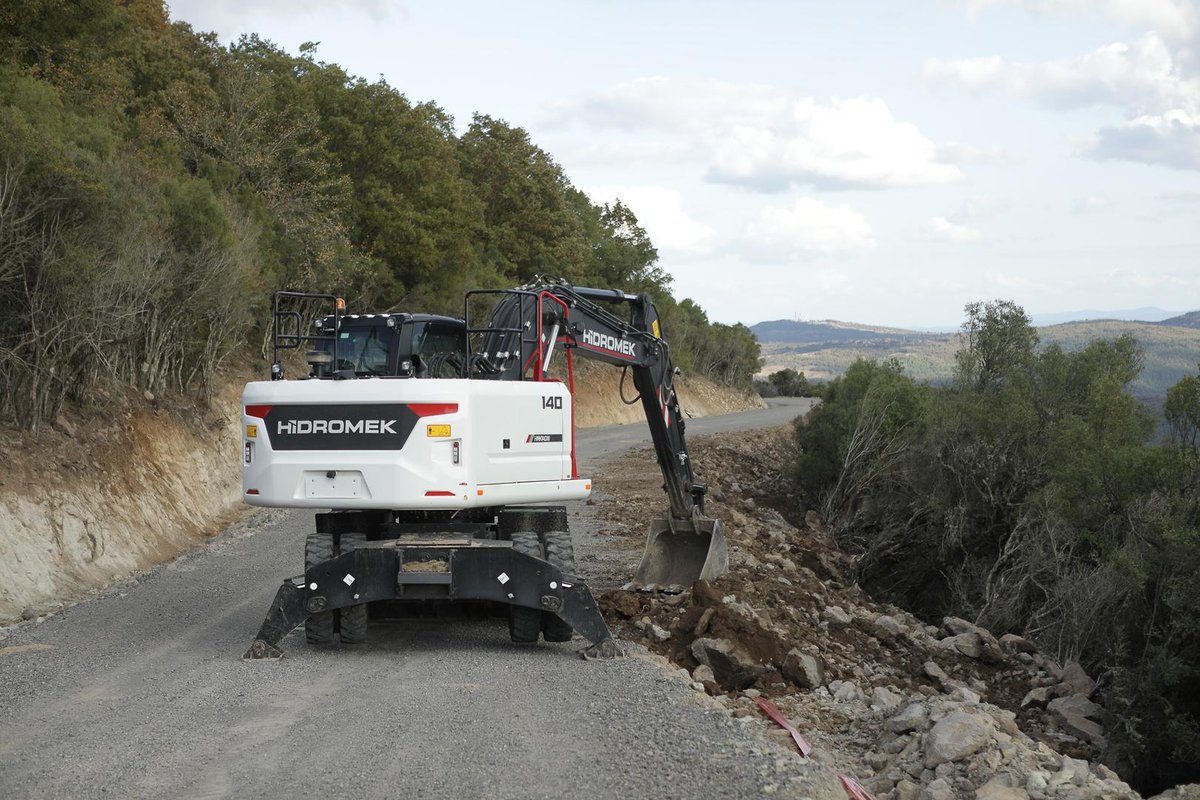

NEW Hidromek HMK140W Wheel Excavator
GENERAL
Operating Weight 15,700 kg. (approx. plus configuration)
Wheeled Excavator with Dozer Blade and Rear Stabilizers.
10.00 Pneumatic Tyres and Rims
ENGINE & RELATED ITEMS
ISUZU AI-4JJ1X Tier IIIA engine, water-cooled, 4-cycle Diesel, 4-cylinder in-line, Direct injection, Turbocharged,
Charge air cooled, Low emission.
92 kw (123 hp) @ 2200 rpm
420 Nm Torque @ 1800 rpm
HYDRAULIC SYSTEM
Variable displacement tandem-axis piston pumps,
Max. Flow 2 x 160 L/min.
Cross-sensing and fuel saving fuel pump.
Two-speed axial pistons travel motor with brake valve and parking brake.
Hose Burst Valves to Boom & Arm Cylinder.
SAFETY EQUIPMENT
Factory ROPS certified cab. Factory FOG guard - roof
Safety Lock Valve for arm & boom fitted.
Two outside rear-view mirrors.
Grab rails factory. Anti-slip plates.
Safety glass windows.
Front work lights.
Rear-view camera.
OPERATOR ENVIRONMENT
Climate Controlled Air-conditioned cabin.
Sliding fold-in front window. Removable rear window
Adjustable Suspension seat.
Opera control system, Colour TFT display monitor, USB Connected MP3 player.
Transparent cabin roof cover.
OTHER STANDARD EQUIPMENT
Double acting hydraulic piping - joystick control
Rotating hydraulics circuit - joystick control
Quick Hitch Piping.
Travel Alarm. Flashing Beacon.
0.6M3 985 mm Standard GP Bucket with teeth.
2 Piece Hydraulic Split Boom with Hose Burst Valves Boom & Arm Cylinders.
2.3M Stick
MATERIALS
Complete with Delivery kit, Operators manual, Parts manual, Risk Assessment and Tool Kit.
Free 150 Hour First Service Included.
WARRANTY
3 years / 6000 hours or whichever occurs first.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.
