Dealer Comments

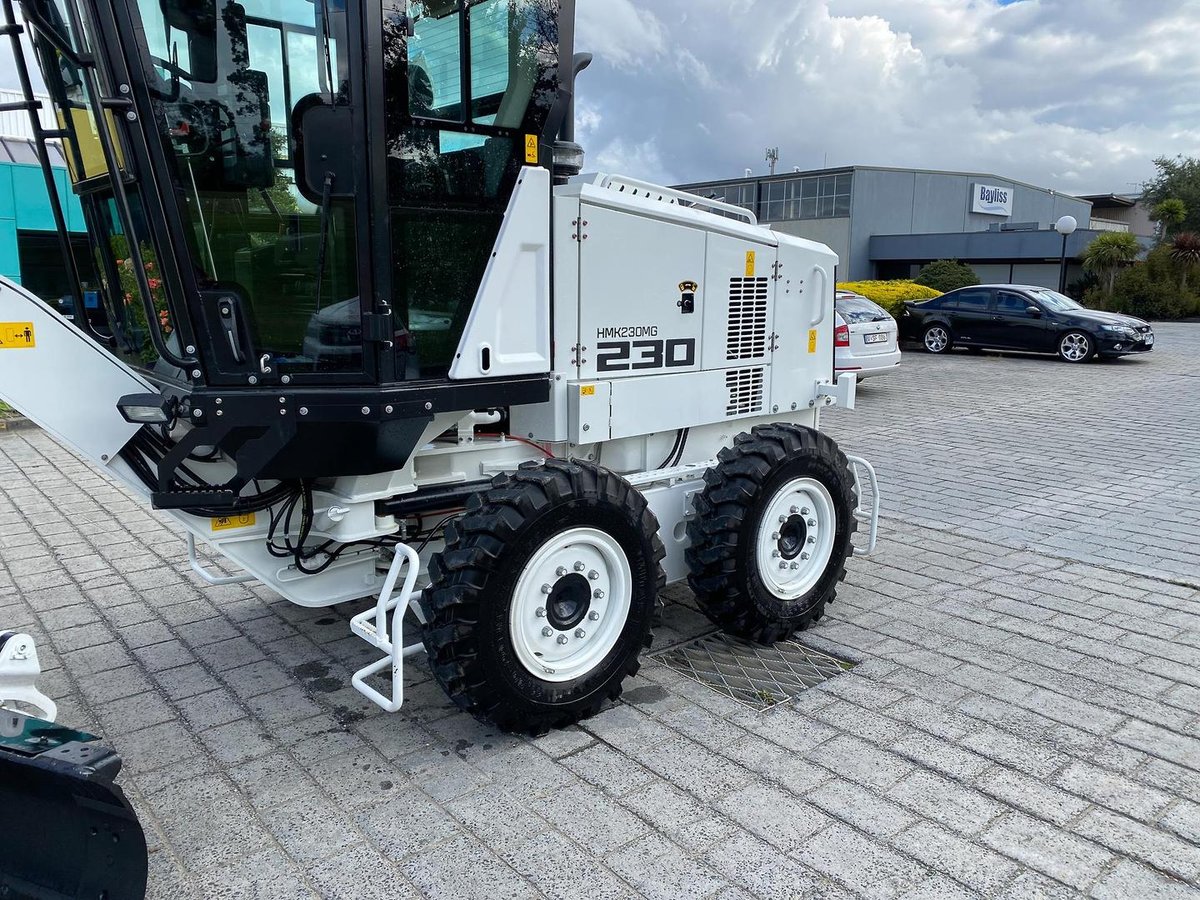

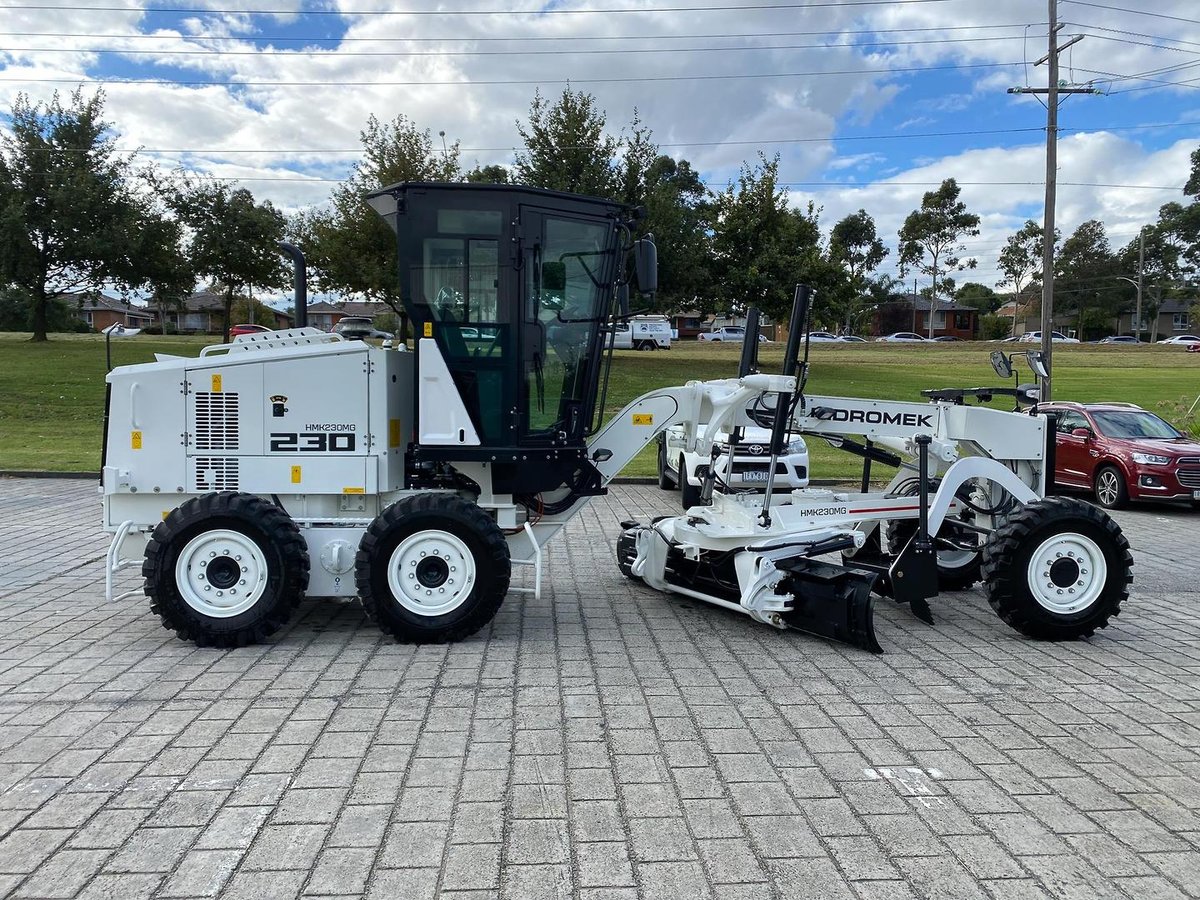

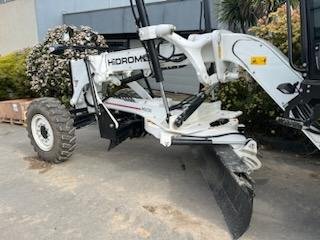

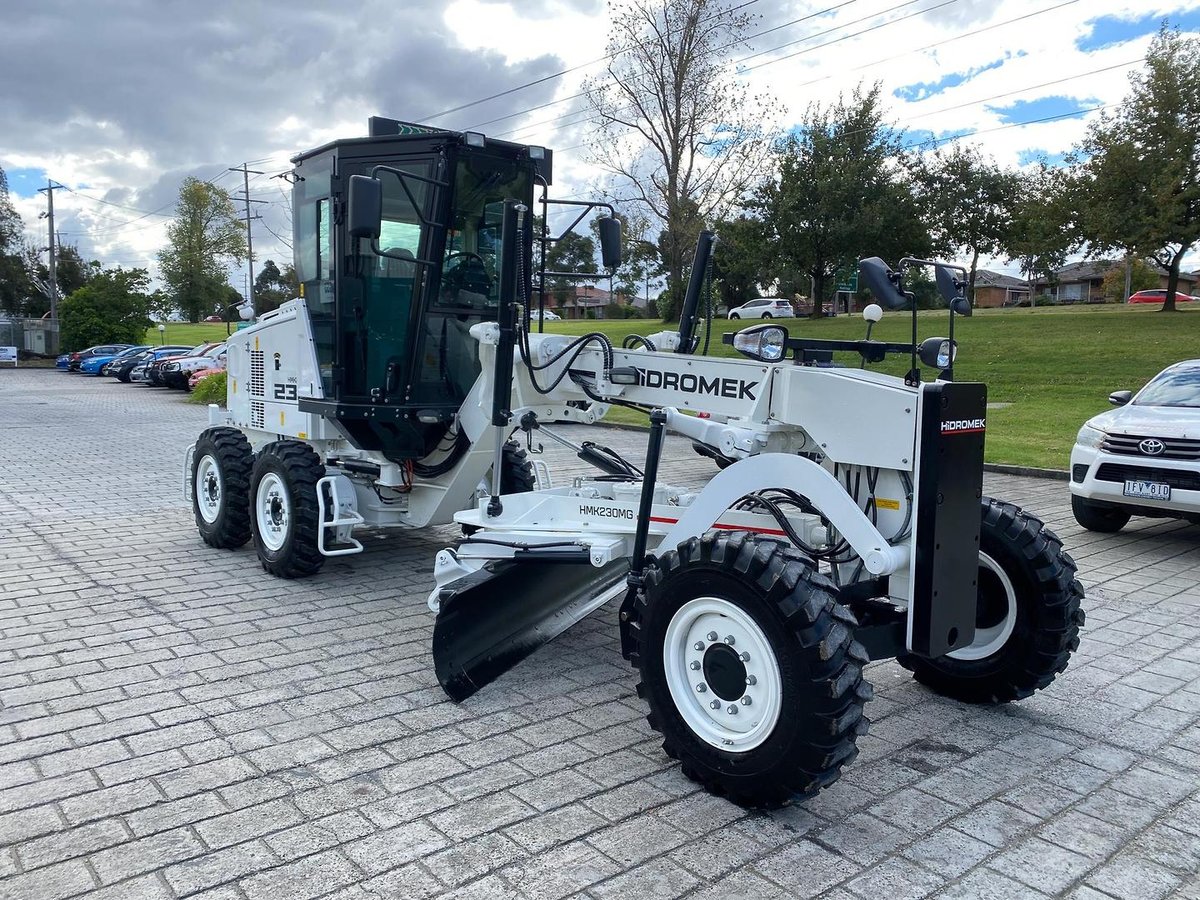

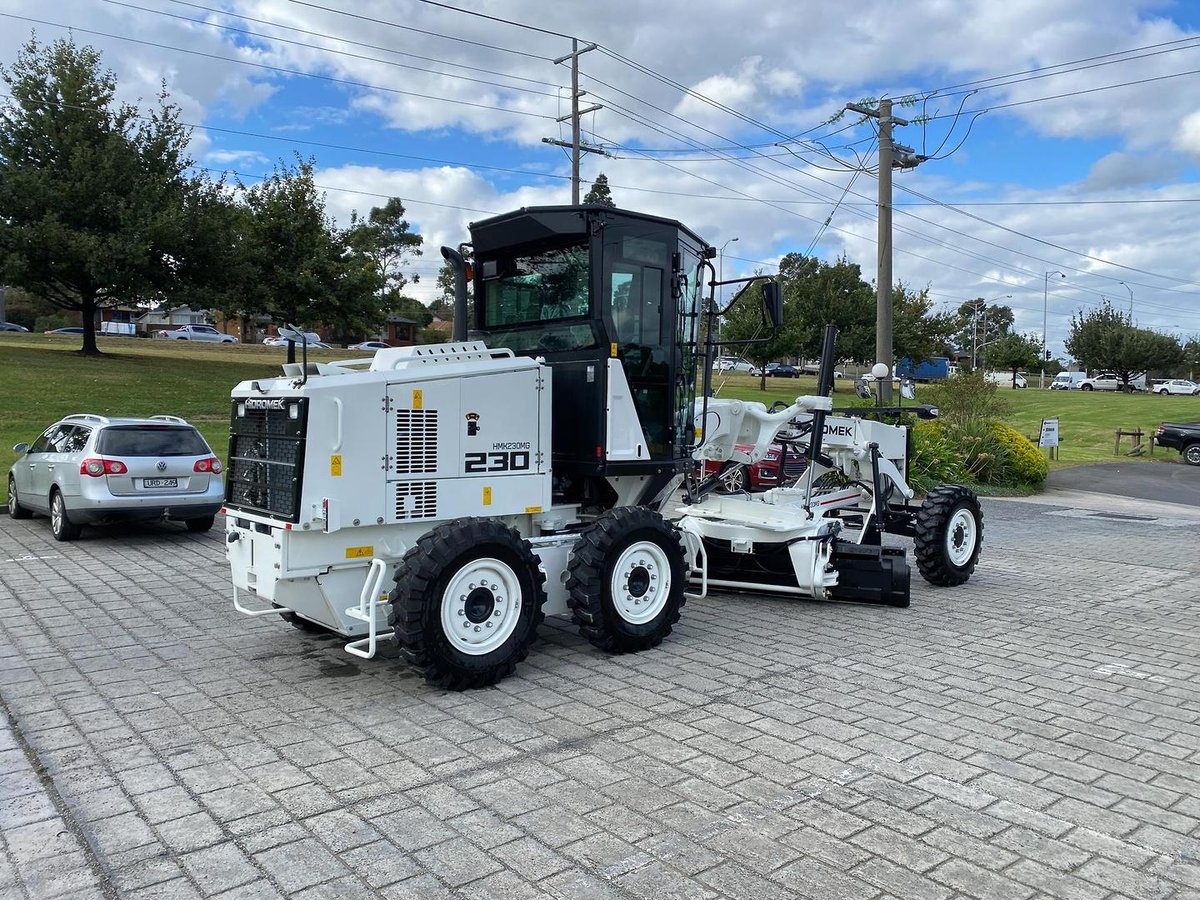

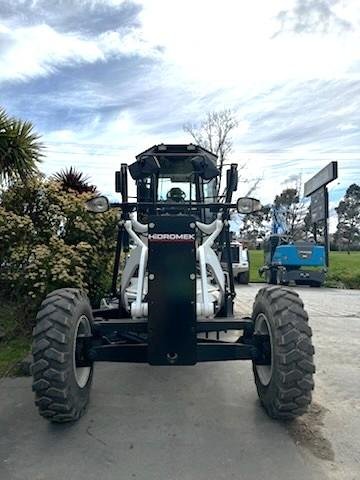

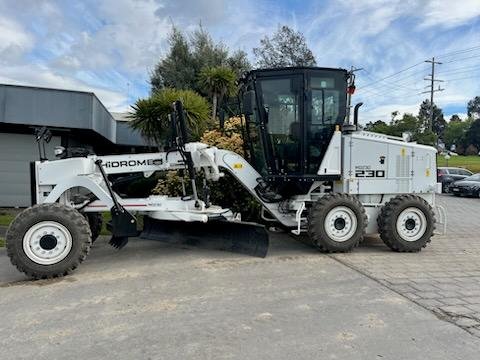

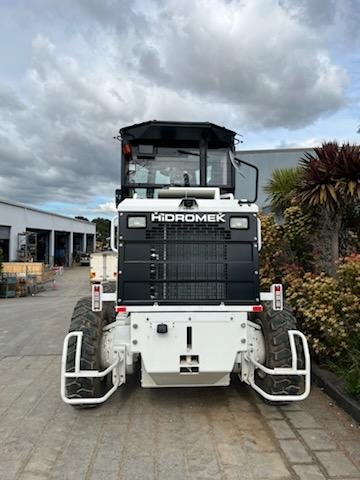

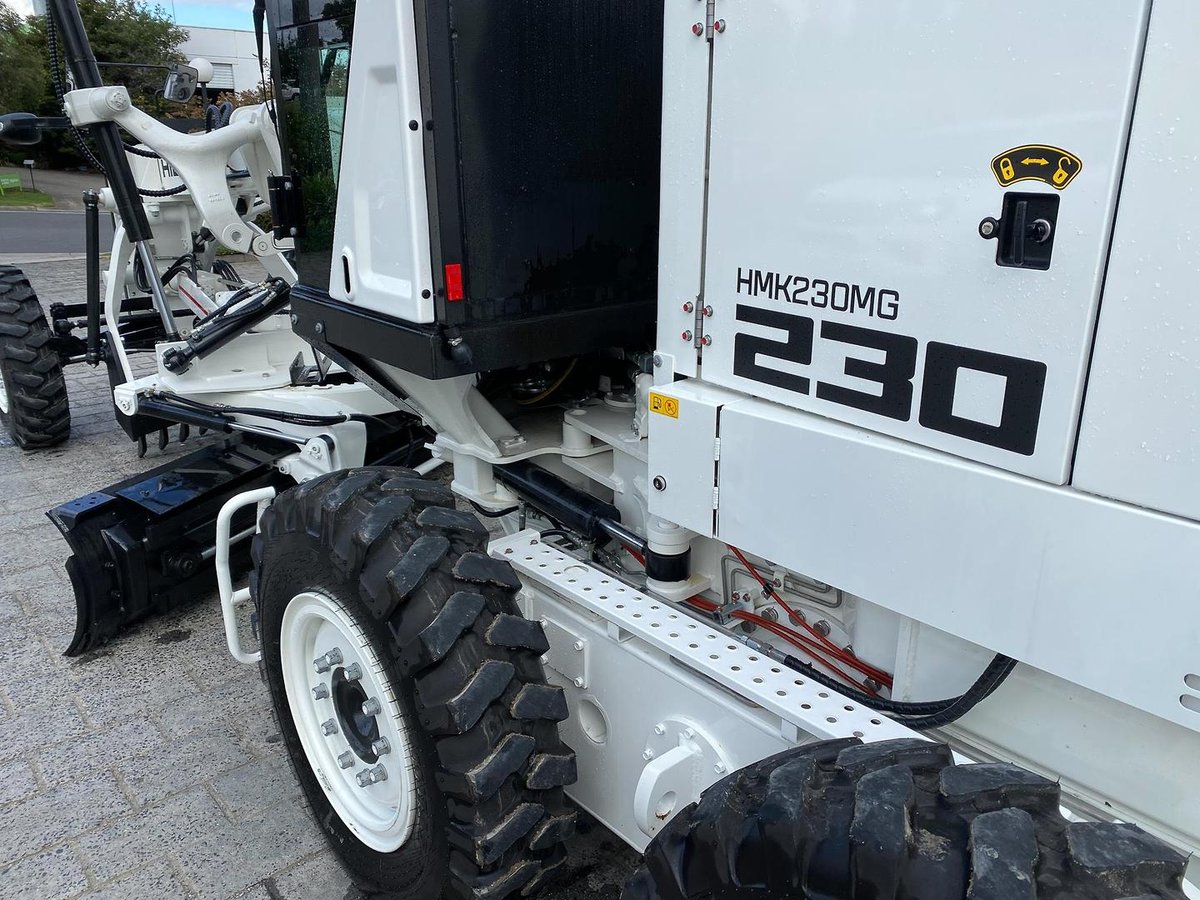

NEW Hidromek HMK230MG Grader
Product specifications

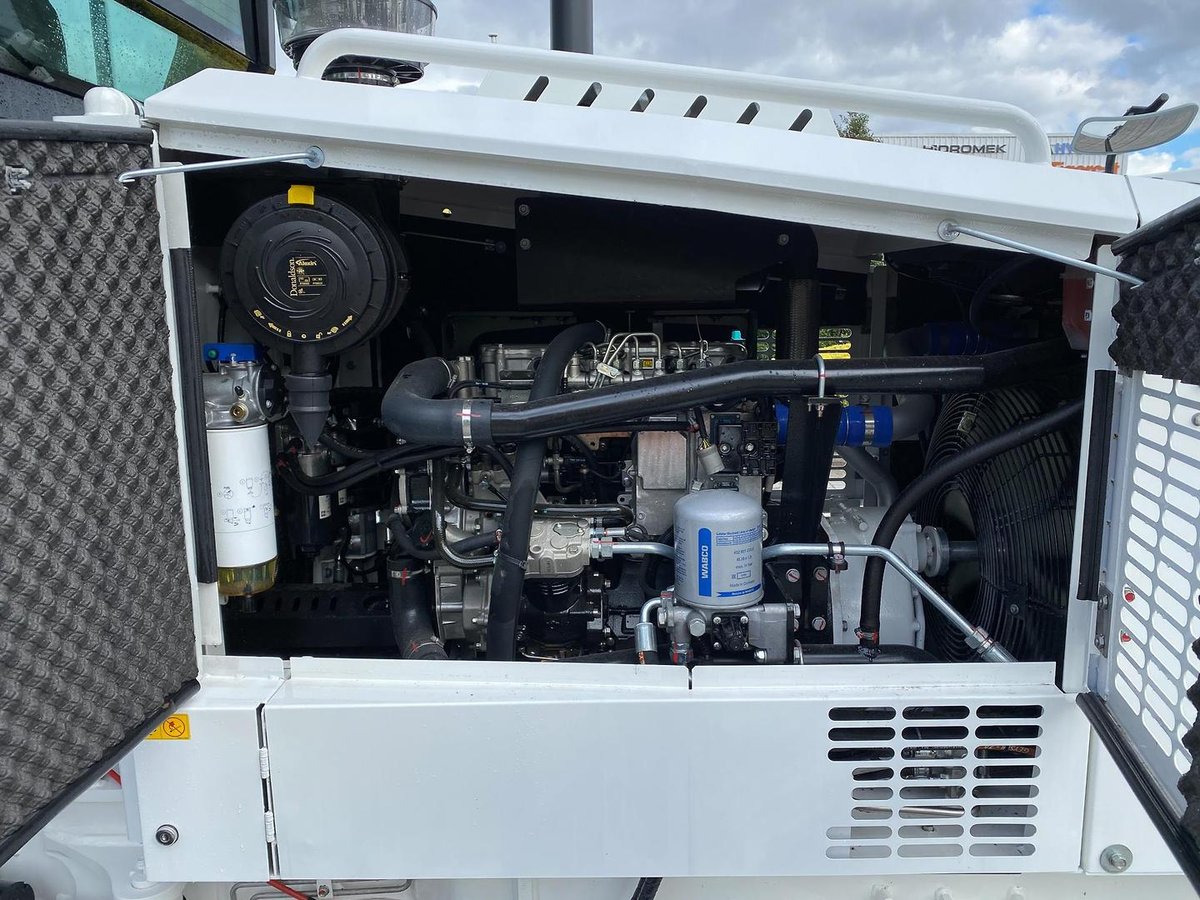

ENGINE Perkins Tier 3A
4 Cylinders, 4400 cc
Net Power : 124 HP (92,6 kW) @2200 rpm
Max torque : 530 Nm @1400 rpm
HYDRAULIC SYSTEM
Closed center system with load sensing capability
Variable displacement piston pump
146 L/min Max. Working Pressure : 172 bar
TRANSMISSION
Direct Drive Powershift (planet gear, Hydraulic-Powered) Gear : 6 Forward 6 Reverse Speeds
TIRES - 11.00-20 16PR
Double-reduction drives by spiral bevel and planetary gears with operator controlled hydraulically lock differential

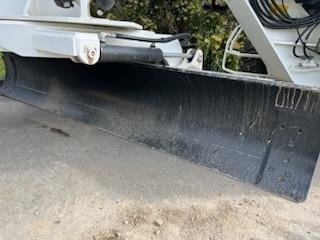

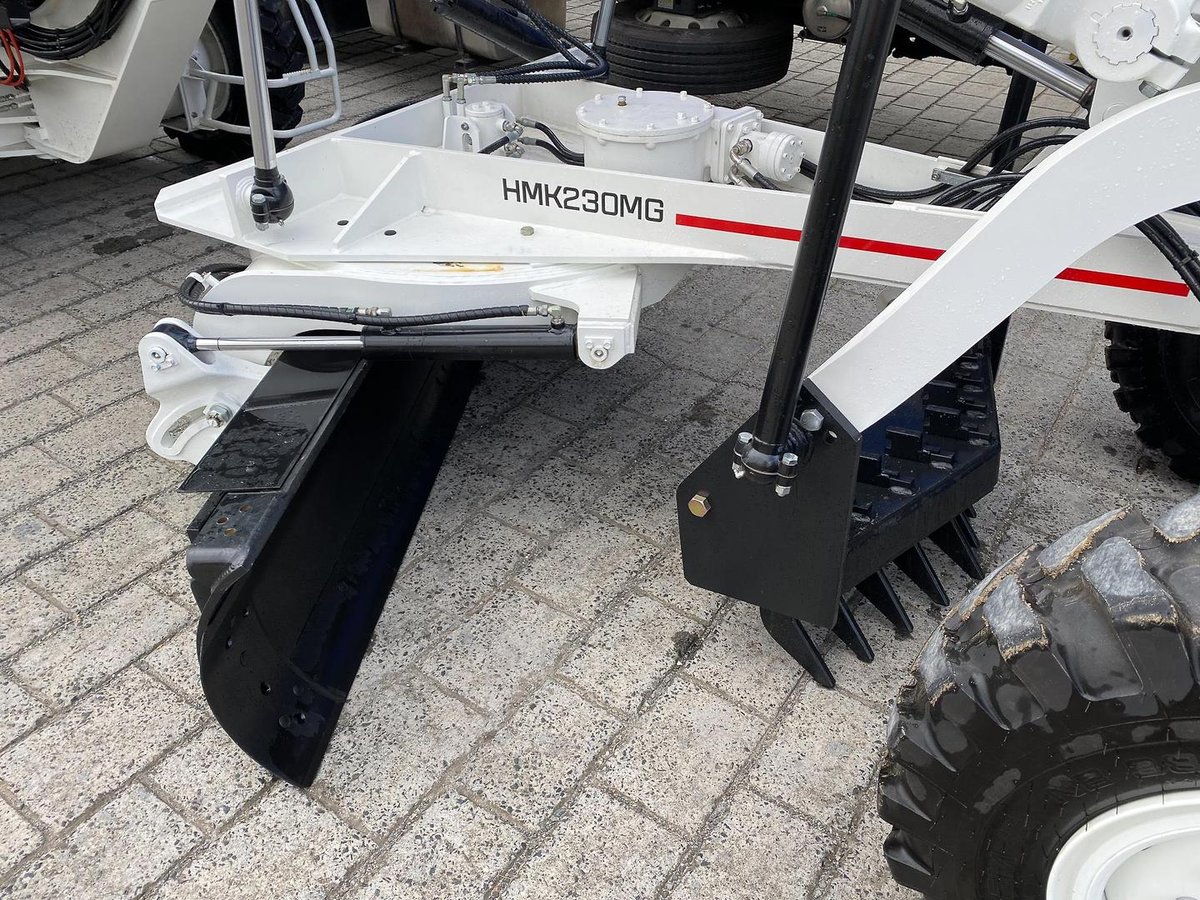

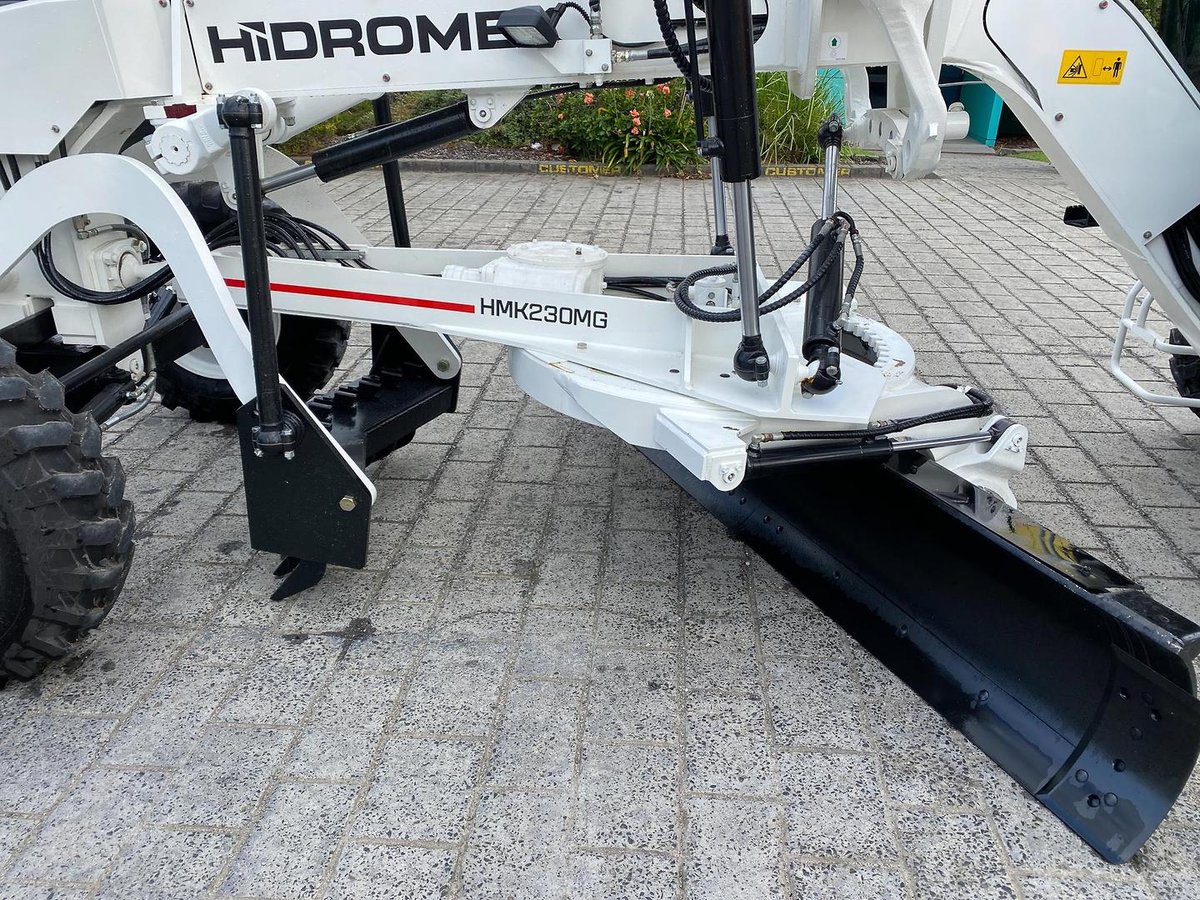

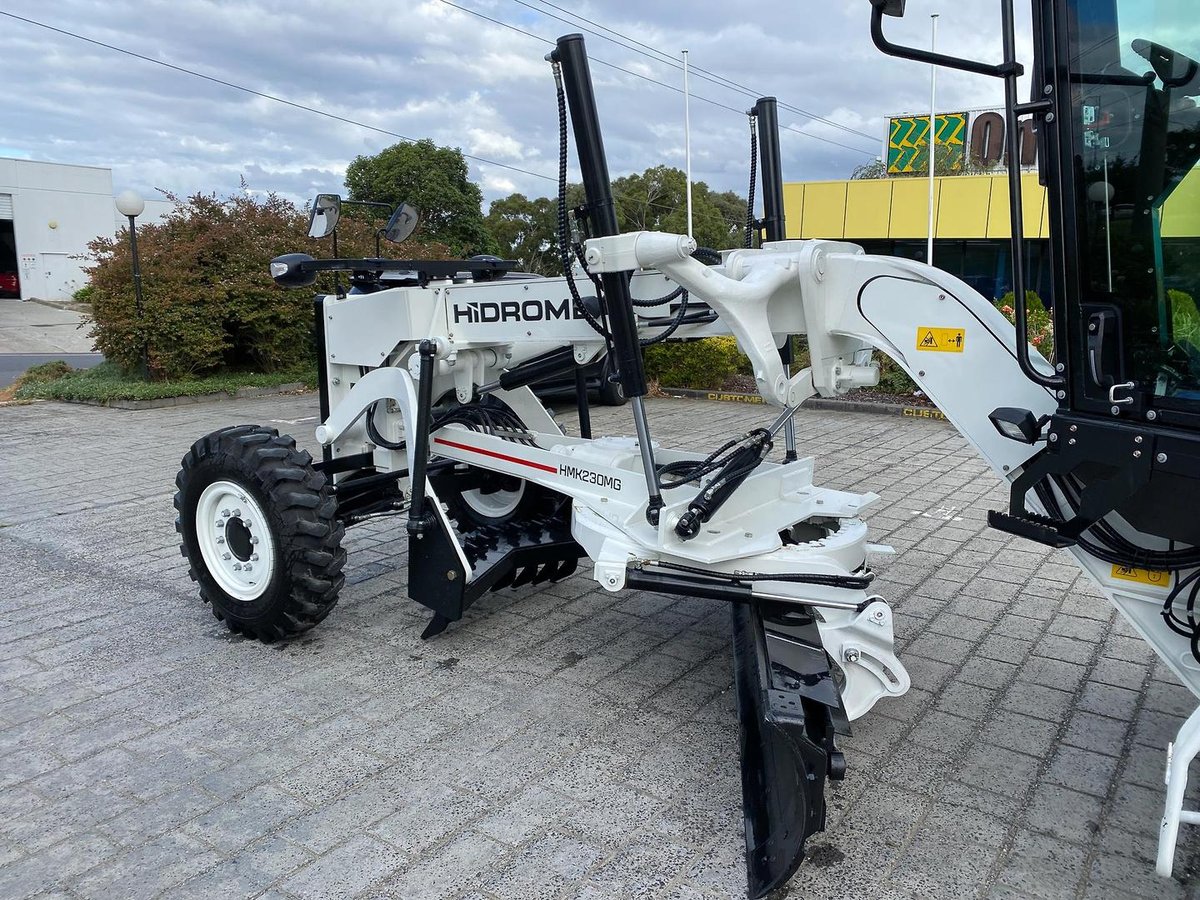

BLADE
Wear resistant steel, with box section reinforcement with hydraulic side shift.
Length : 3,100 mm Height : 530 mm
Max. height from ground : 430 mm Max depth from ground : 410 mm
Blade Turning Angle : 360° Max. Bank Cutting Angle : 90°
Cutting angle : 36-81 degree
CHASSIS
Articulation Angle : 26°
Construction : Box type steel plate welded construction
FRONT AXLE
Oscillation : 30° Wheel Leaning : 20°
Overall Height : 487 mm
BRAKES
Service Brakes : Dual Circuit Air Activated Wet Multiple Discs Acting on 4 Rear Wheels
Parking Brake : Wet multiple discs in Transmission

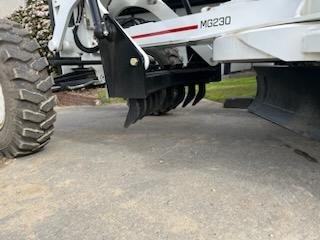

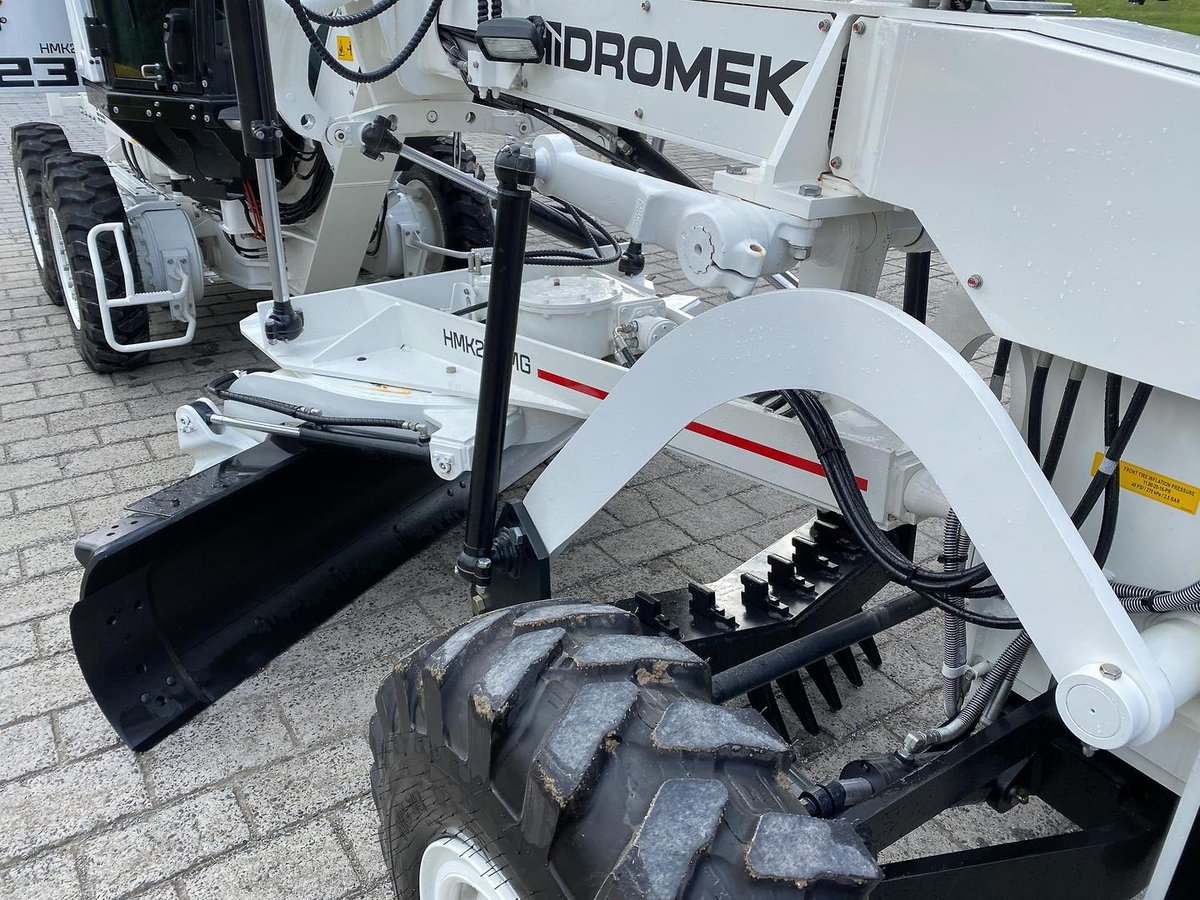

SCARIFIER - 9 Pcs. Digging Depth : 192 mm

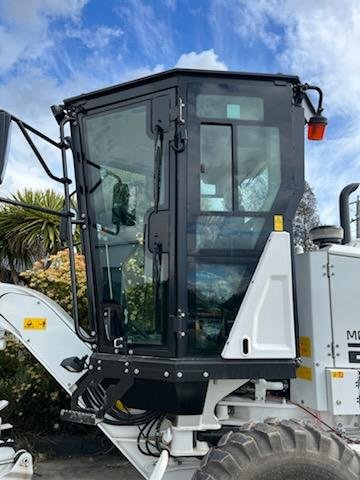

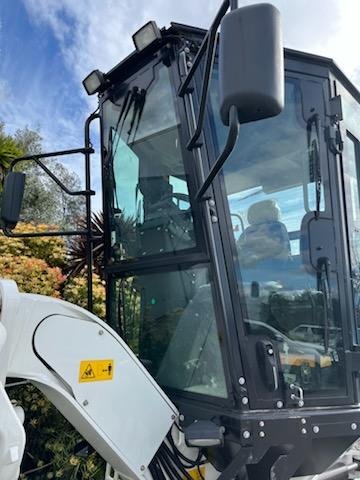

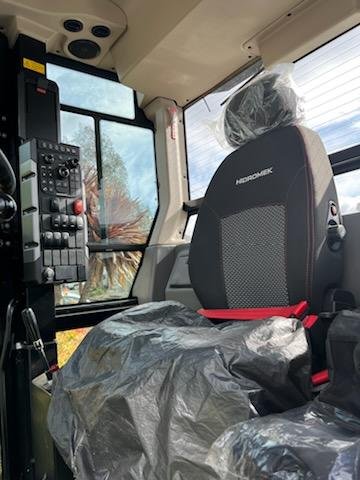

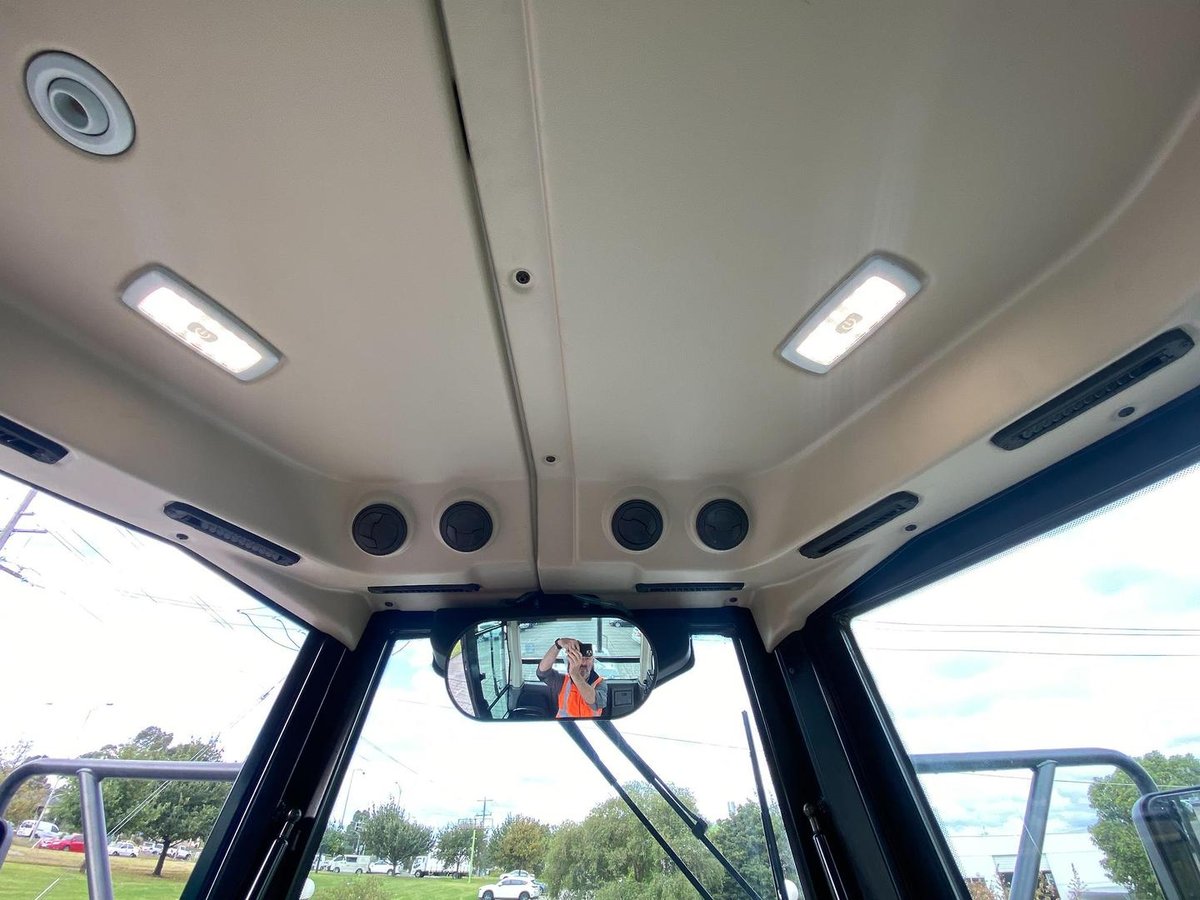

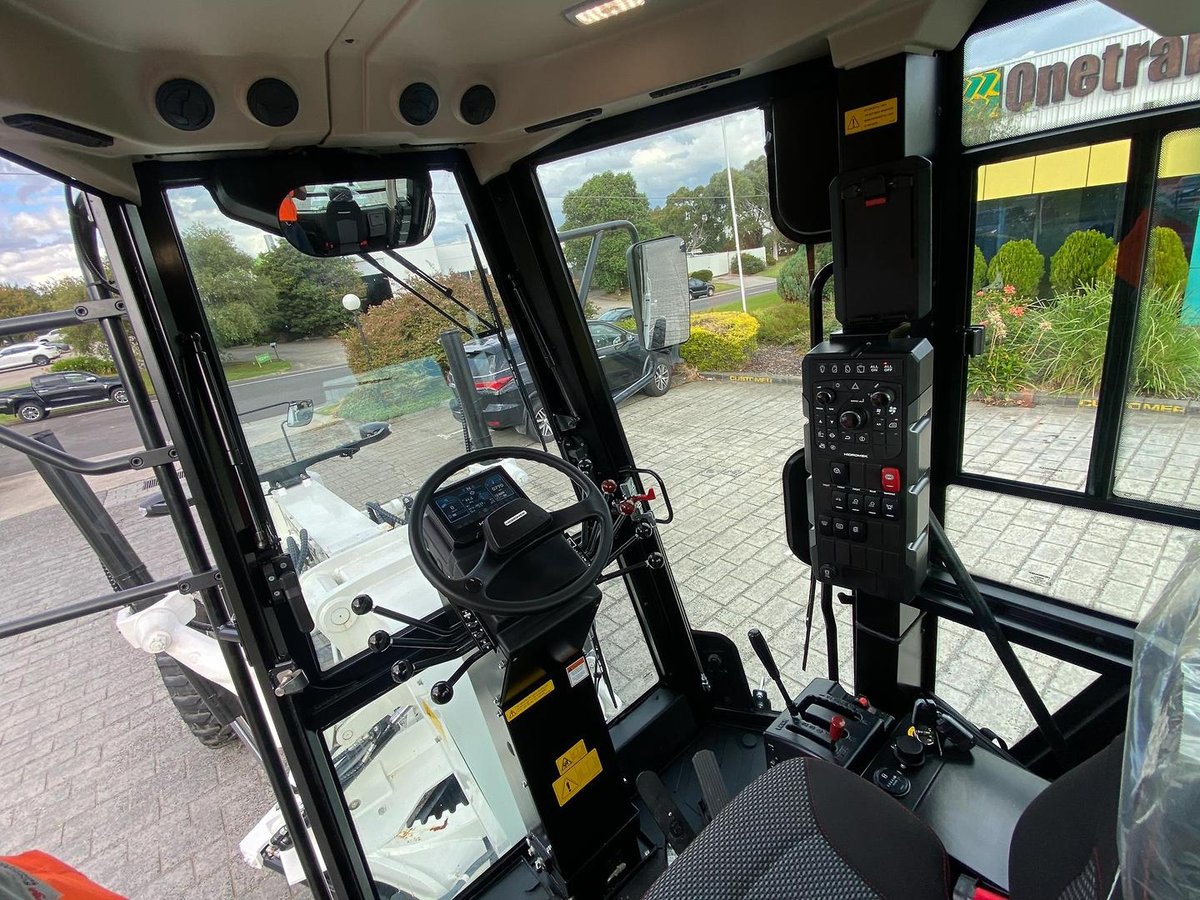

CABIN ROPS/FOPS II

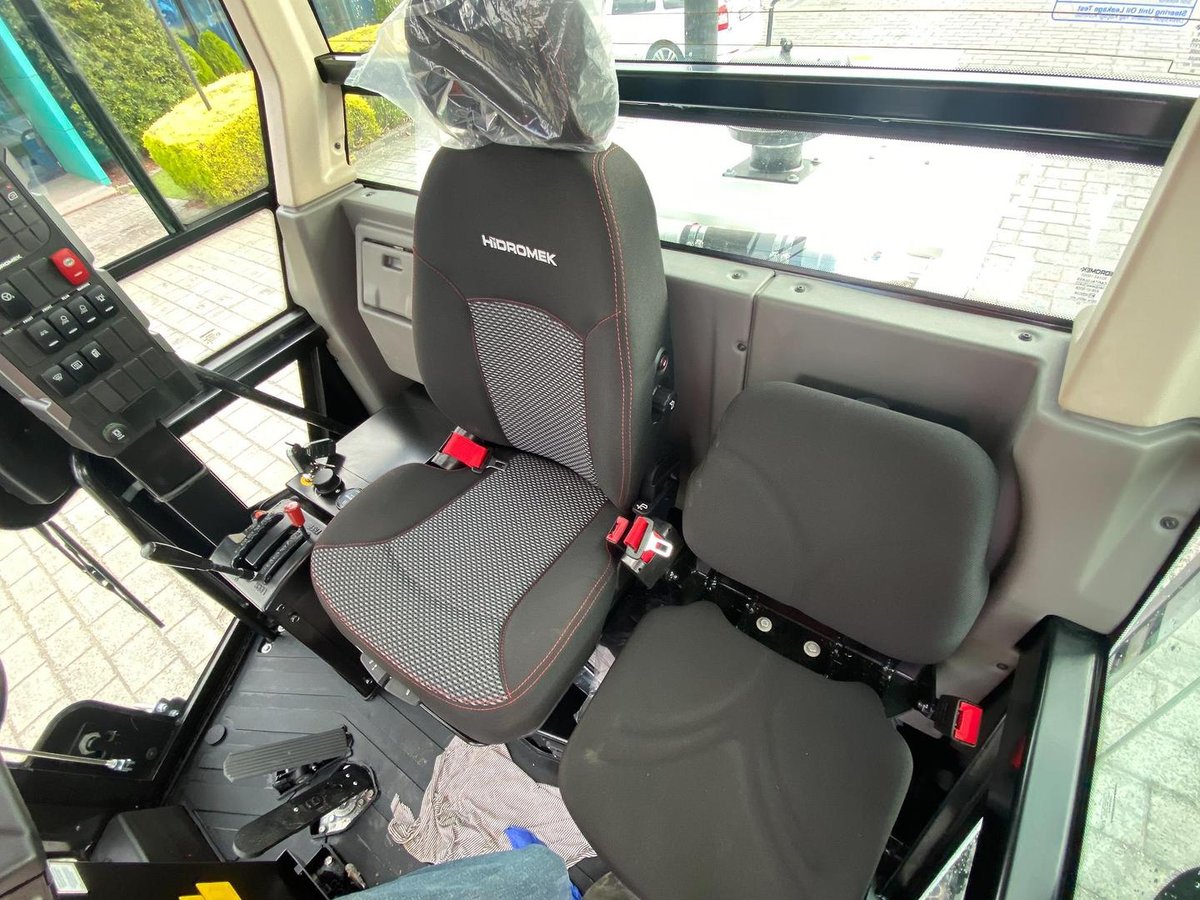

Air Suspension, Adjustable, Heated Operator Seat with co-operator seat
GENERAL DIMENSIONS
Overall Lenght : 7,602 mm
Overall Wide : 2,180 mm
Overall height ( to upper end of muffler) : 2,710 mm
Overall height (to upper face of cab) : 3,280 mm
Wheel base : 5,300 mm
Operating weight : 12,100 kg
STANDARD DEVICES ATTACHED
Lighting Fixture Set
Hydraulic Type Blade Tip
100 A Standard Alternator
Wet Multiple Disc Brake on Rear 4 Wheels
All Steel Construction Totally Closed Cab for 2 Person
Air Conditioner
Work Light (for cab)
Yellow Rotation Light
Differential (with lock)
Seat for Sub Operator
Front Counterweight

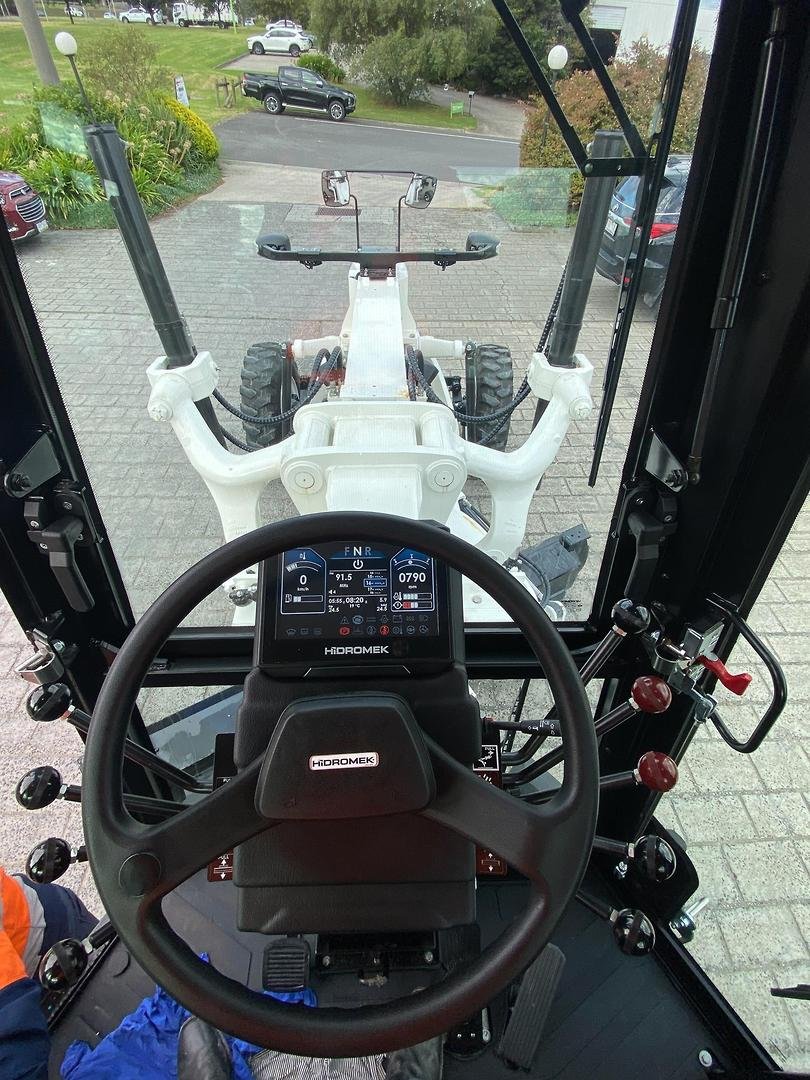

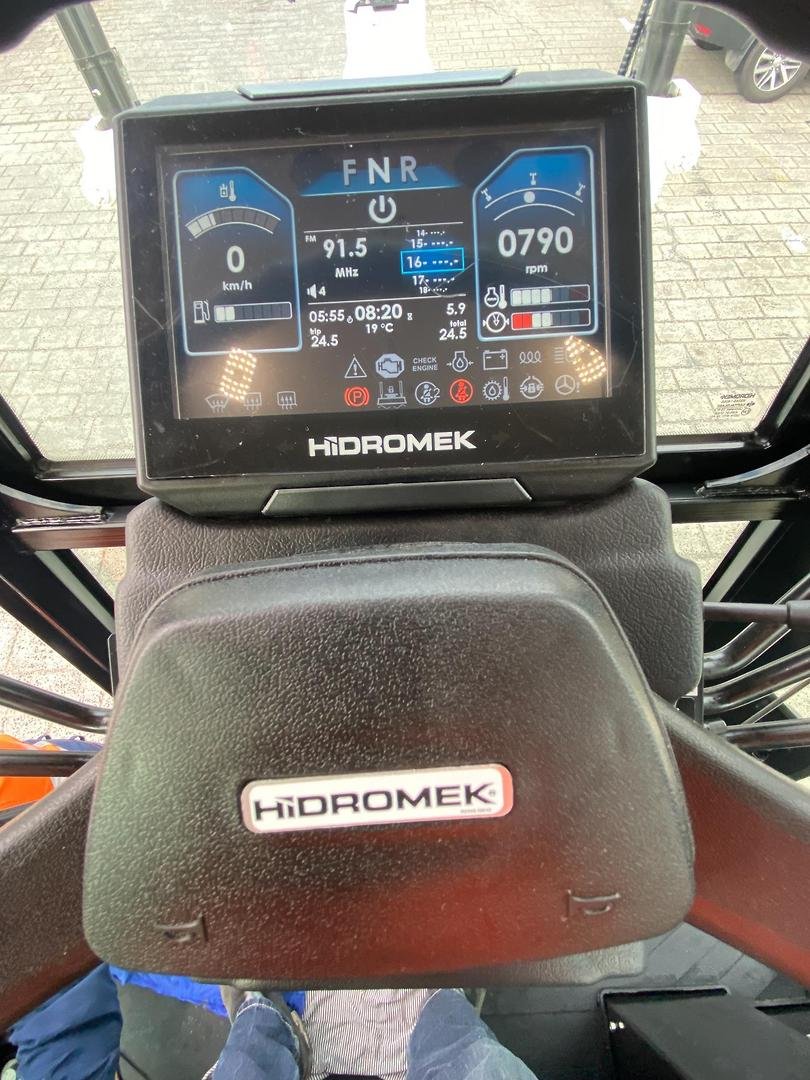

Electronic Front Display
Resistance Heated Windows
Radio, MP3 Player / USB Port

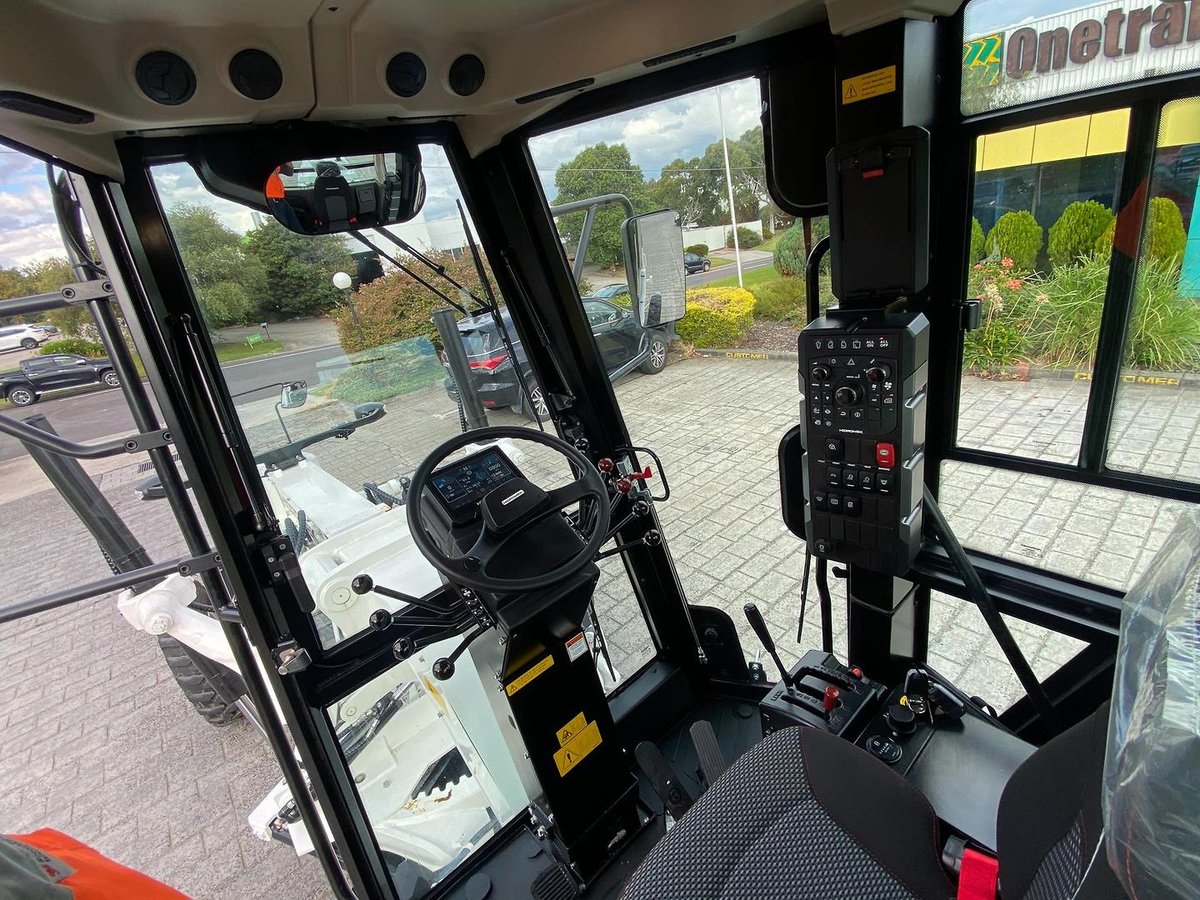

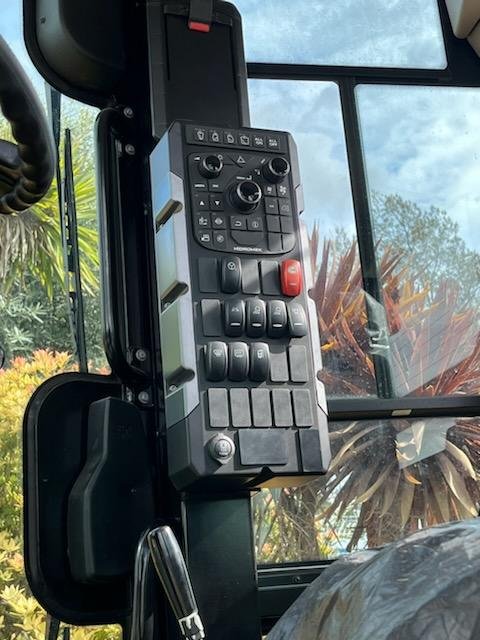

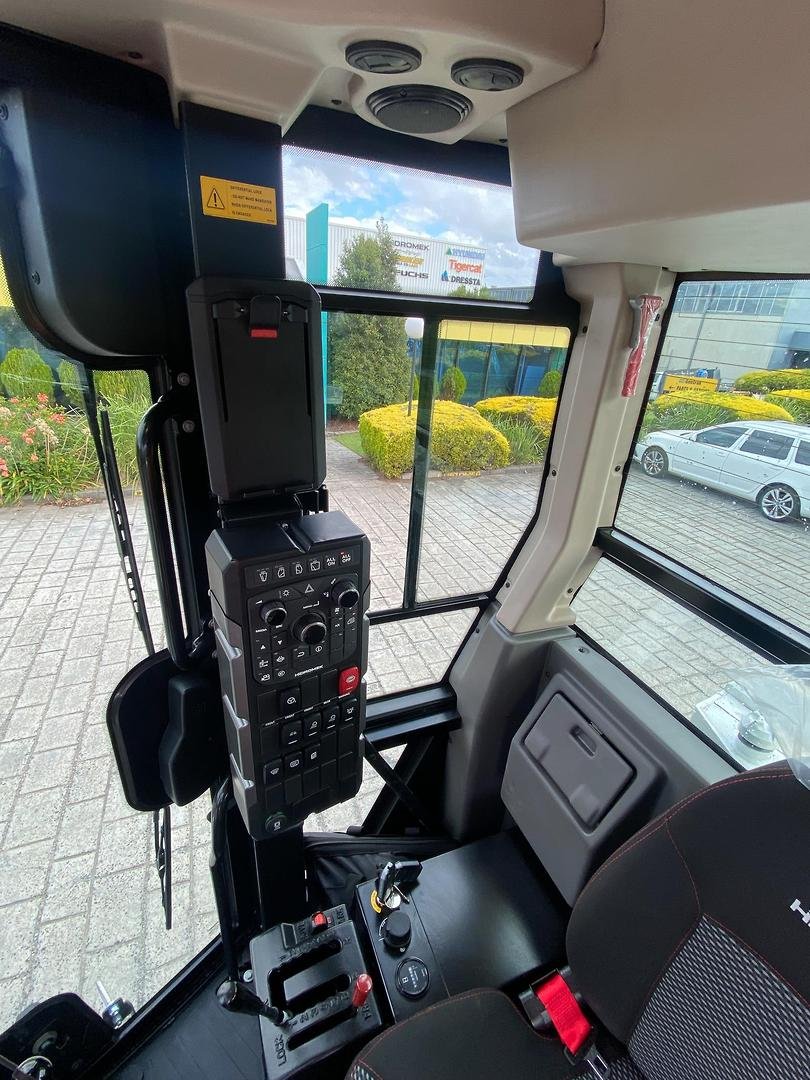

Operator Side Control Panel (Opera)
Rear View Camera
Resistance Heated Adjustable Mirrors
Emergency Steering System
MATERIALS
Comes with Delivery kit, Operators manual, Parts manual, Risk Assessment.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.
PRICING
Prices are subject to change without notice, this quotation is valid for fourteen (14) days. Orders are subject to confirmation and factors such as factory price movements, shipping and currency fluctuations.
WARRANTY
3 years / 6000 hours or whichever occurs first.
