Dealer Comments

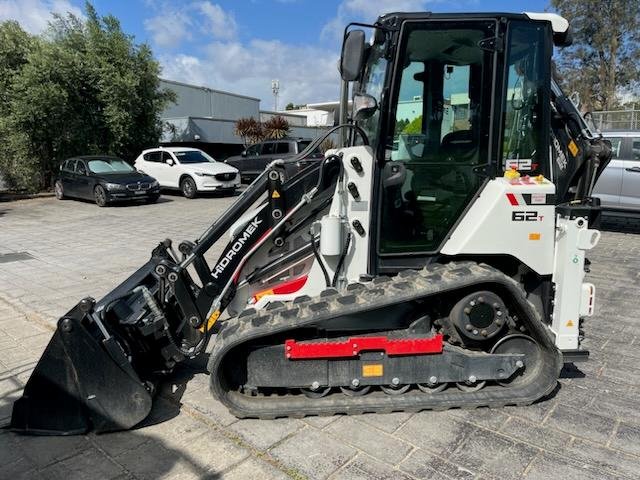

GENERAL

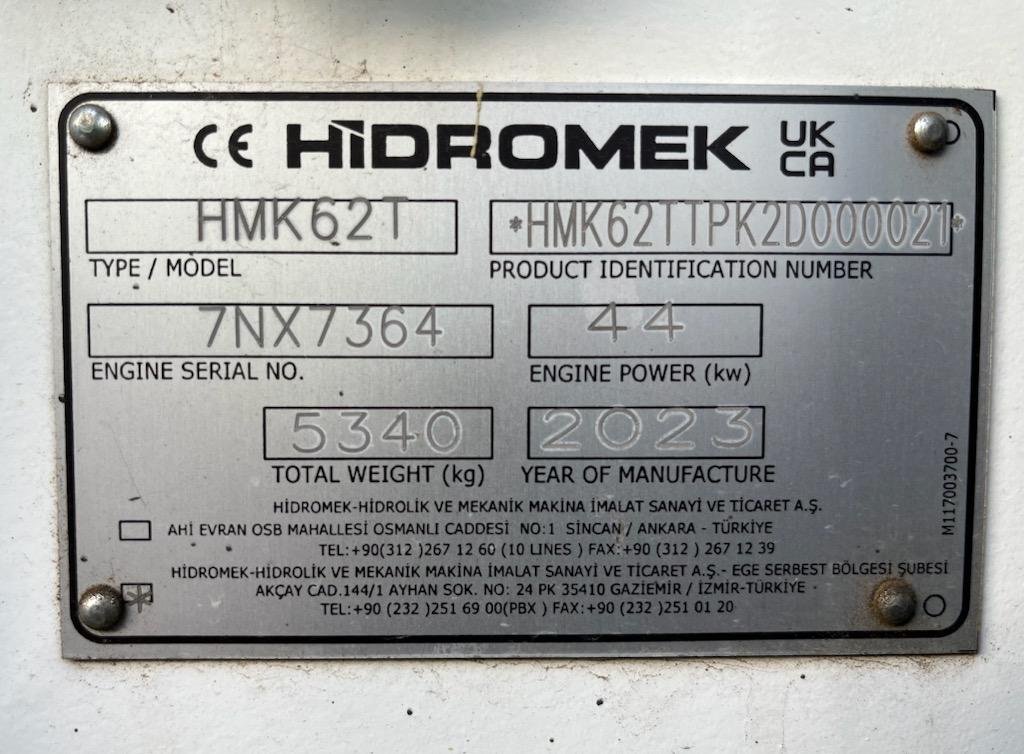

Operating Weight 5,280 kg.

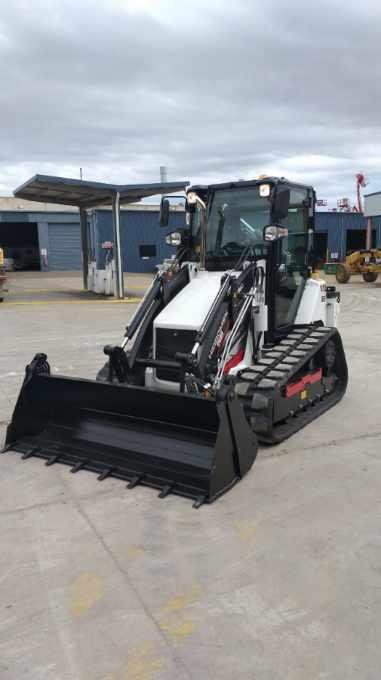

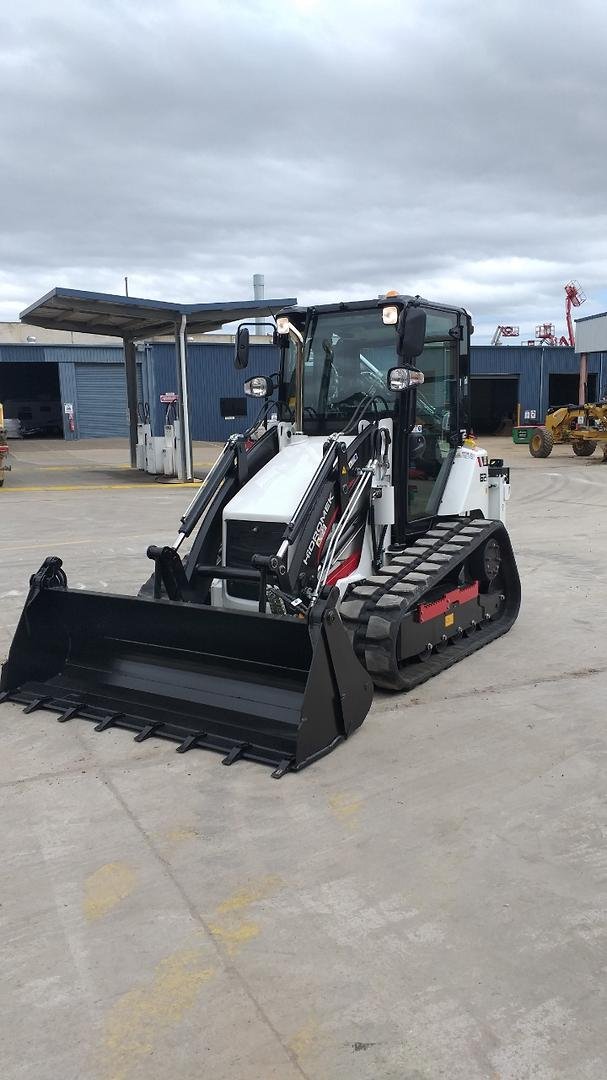

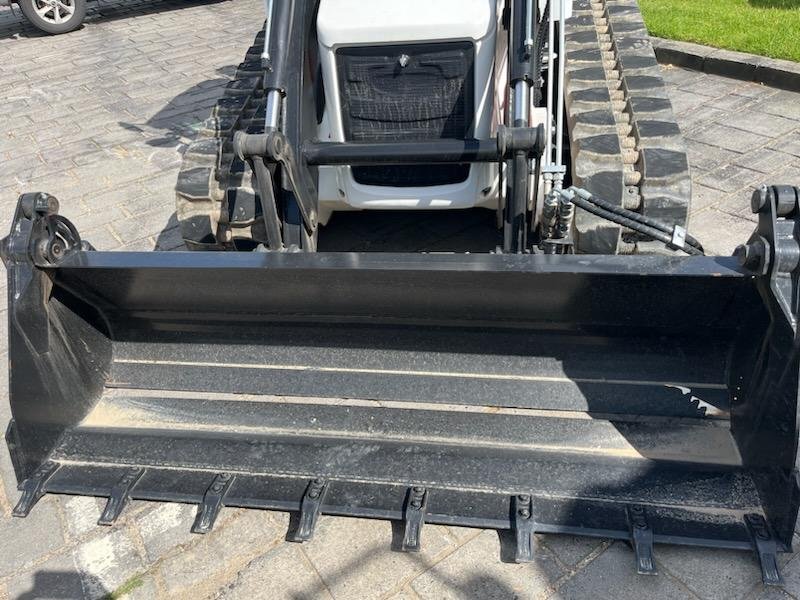

0.45 m3, 4 in 1 Front Bucket Capacity.
0.06 m3, Backhoe Bucket Capacity

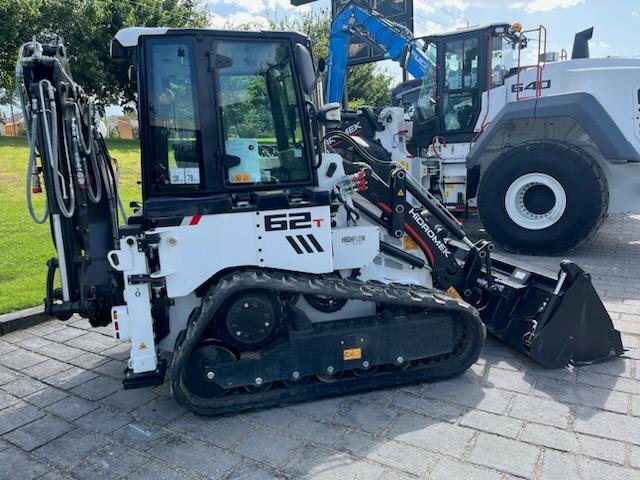

Rubber tracks 56 x 400mm wide, pitch 86
ENGINE & RELATED ITEMS
KUBOTA V2403-M-T-E3B
Water-cooled, 4 stroke turbocharged diesel engine
59 kw (44 hp) @ 2700 rpm
165 Nm Torque @ 1600 rpm
SPECIAL ARRANGEMENTS
EPA Tier IIIA regulation arrangement.
DRIVES & BRAKES
Hydraulic system with variable displacement piston type pump
Driving speed 0-7,5 km/hour
HYDRAULIC SYSTEM
Main pump flow: 60l/min @ 2700rpm
Pressure: 220 bar
CONTROL

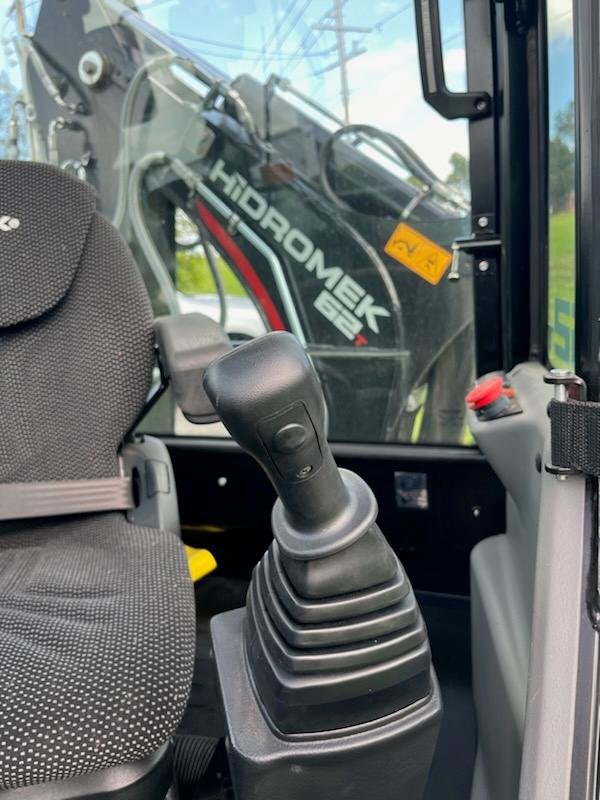

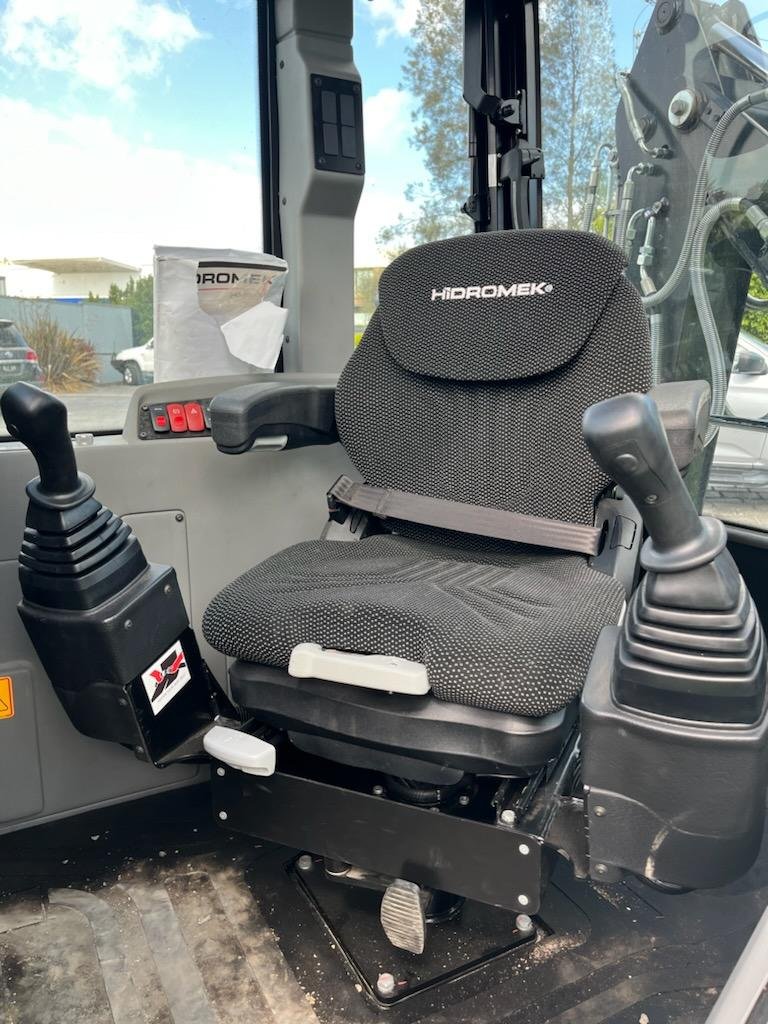

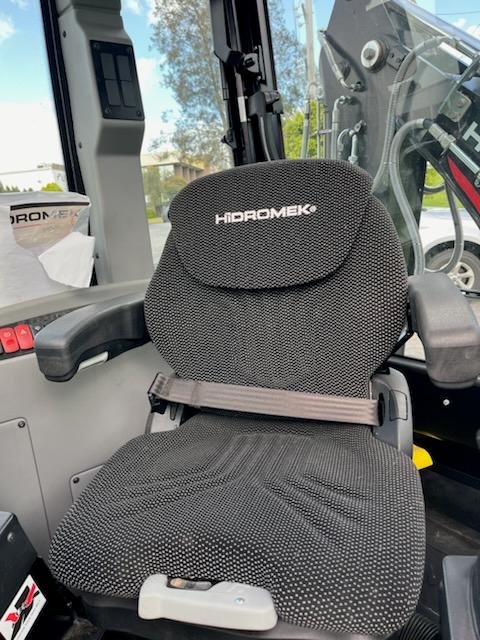

Comfortable use with joysticks integrated into the seat used for loading, digging and travelling.
STANDARD EQUIPMENT
ROPS / FOPS certified cab.
Air conditioner

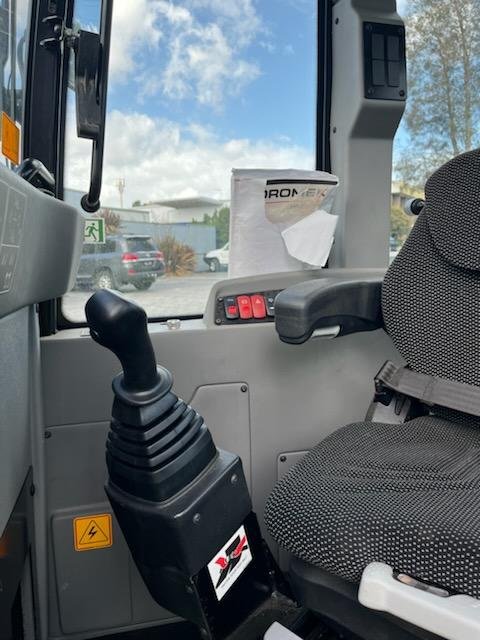

Ergonomic joystick controls integrate to seat
Quick coupler loader attachment
Immobilizer
Radio and MP3 player
Cylinders with cushion
Back attachment lock
Breaker Hydraulic Line
Rotating beacon
12 volt socket
Hand throttle

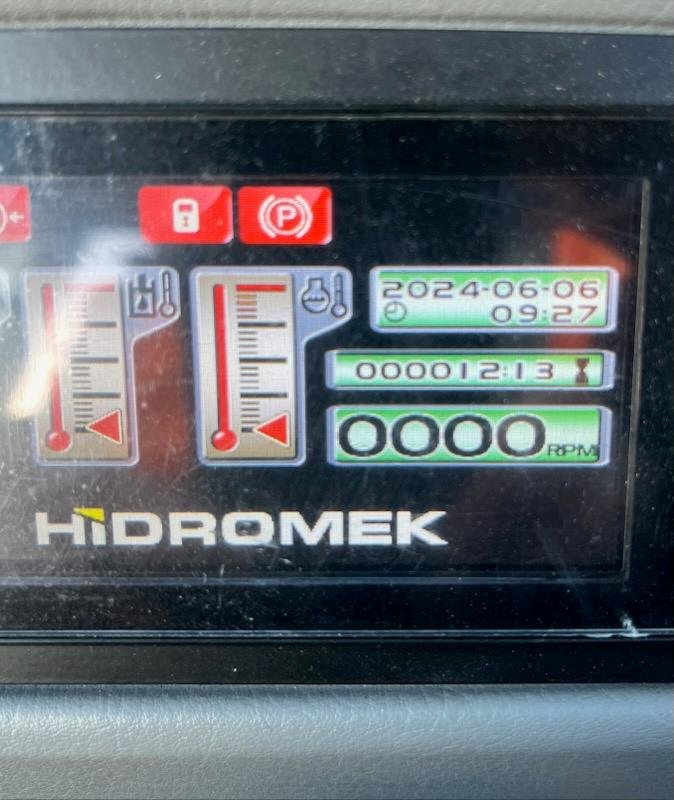

LCD information display
SPECIFIC TO THIS MACHINE

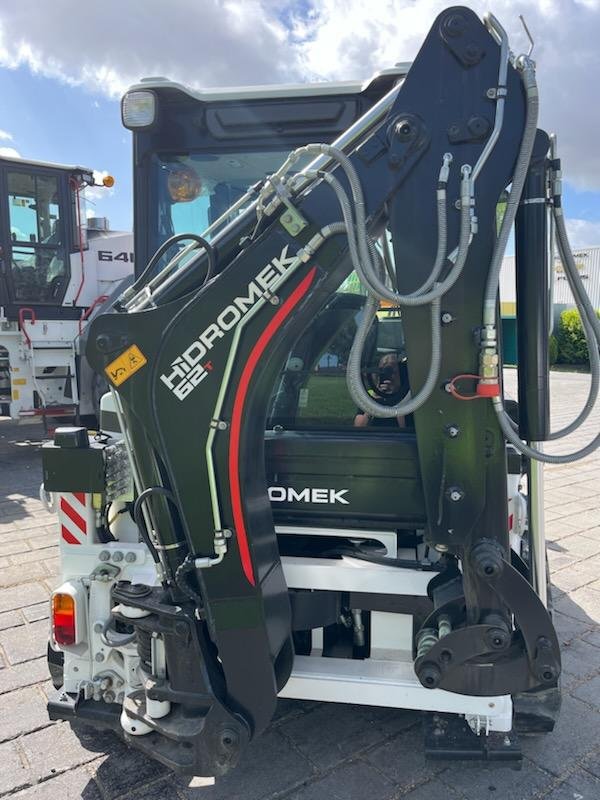

Telescopic Backhoe dipper arm

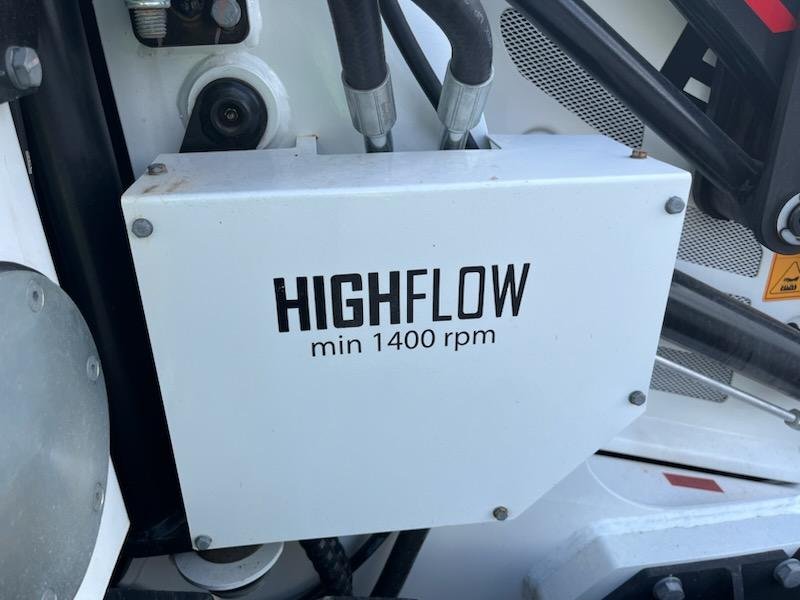

High Flow Auxiliary Line for Loader Side
Stabilizer rubber pads
Double acting line for backhoe side
MATERIALS
Comes with Delivery kit, Operators manual, Parts manual, Risk Assessment
Free 150 Hour First Service Included
WARRANTY
3 years / 6000 hours or whichever occurs first.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.
