Dealer Comments

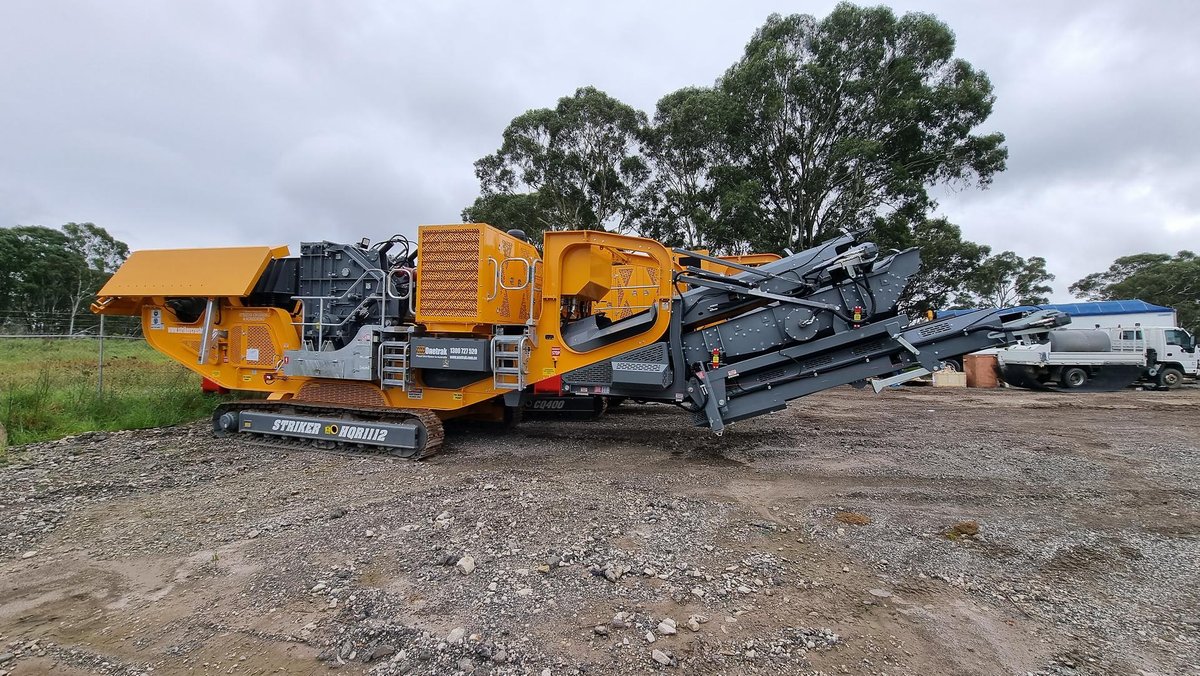

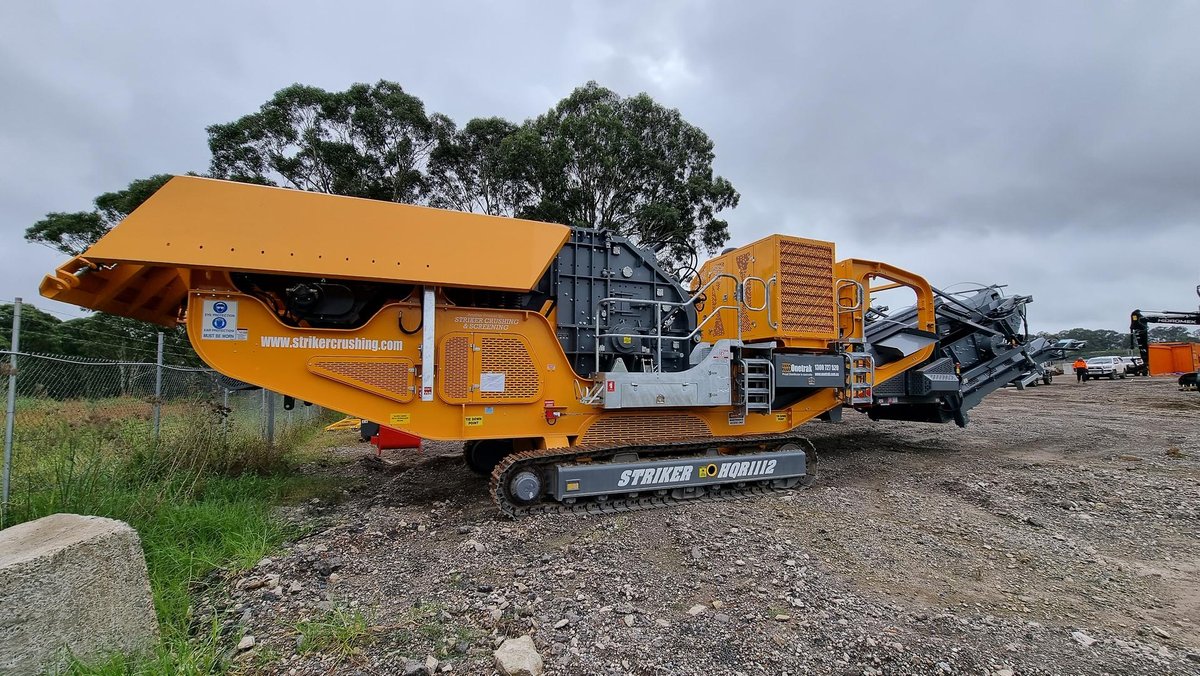

New Striker HQR1112 Impact Crusher
HOPPER
7 / 10 m3 Capacity, Hydraulic Folding, Hydraulic Locking, Blanking Plates & 43mm Grizzly bars
POWER PACK
Caterpillar C9 265kw Tier 111 Diesel Engine,
Fuel Tank 820 litre, Hydraulic Tank 600 litre
Radiator Blast Guards
Load Sensing hydraulic system
CRUSHER
1,120mm x 1,210mm (44 x 48)
SCREEN
3,200mm x 1,500mm (11x 5) Single Deck, (Double Deck Option)

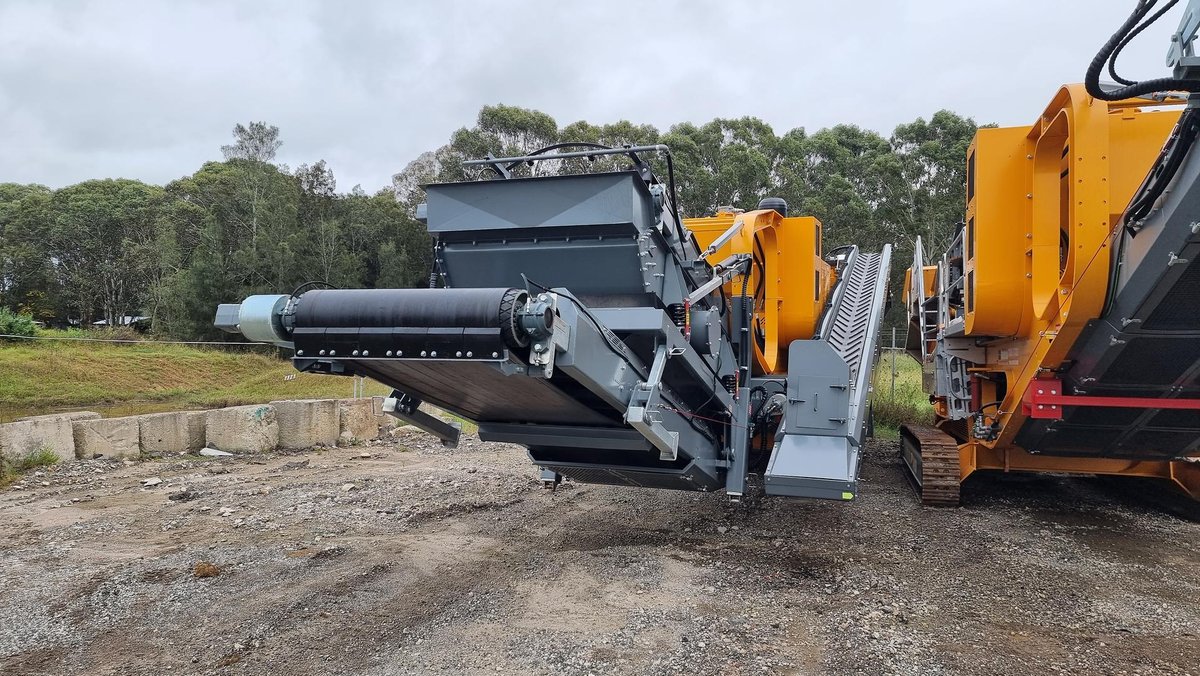

CONVEYORS
Forward Product Conveyor Width 1,200m, Discharge Height 2,444mm
Dust Spray bars fitted to Forward Product Conveyor, Water Manifold fitted
Over-band Magnet, Stacker Outlet
PERFORMANCE
Capacity up to 350 T/Hour Gap setting 10mm 150mm
CONTROL
Full Radio Remote Control, Striker Optimax engine and feeder controller
TRACKS
Length 3,840mm, Width 400mm
OPERATING DIMENSIONS
Length 16,616mm, Width 5,055mm, Height 5,073mm
TRANSPORT DIMENSIONS
Length 16,918mm, Width 3,532mm, Height 3,779mm
Weight 47,000kg
SPECIFIC OPTIONS FOR THIS MACHINE
High & Wide Track Kit, 4 x Manganese Full Height Blow Bars, Manganese Body Liners and Impact Plates, Blow Bar Lifting Cradle, Detachable Single Deck Screen Box, Nip Point Guarding, E-Stops, Central Greasing Banks, Warning Siren for tracking and startup, Fixed Recirc Conveyor
WARRANTY
1-year/2000hr Full Factory Warranty. 5-year Frame Warranty
MANUALS
2 operation and parts manuals are included with every machine.
COMMISSIONING
Includes 1 full day commissioning by experienced representative.
RISK ASSESSMENT
All new machines come with a risk assessment upon delivery.
