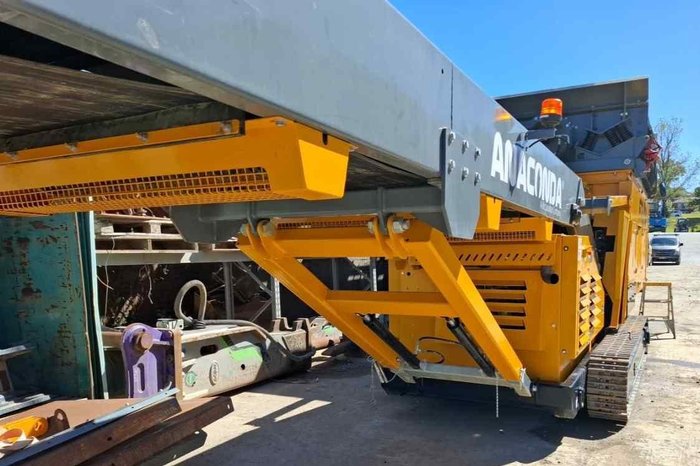

Anaconda FTR100

The Anaconda FTR100 is robust and can be used in a variety of applications including sand & gravel, aggregates, compost and coal.
The unit has a variable speed belt feeder and a 33ft stockpiling conveyor which is ideal for truck/wagon/barge loading or to act as a surge feeder in a new or existing quarry plant.

WEIGHT: WEIGHT 12700KG - WEIGHT WITH TIPPING GRID 14400KG - WEIGHT WITH VIBRATING GRID 17200KG
POWER PACK: TIER 3 JCB 444 DIESELMAX – 63KW ENGINE, DIESEL TANK 160 LITRE, HYDRAULIC TANK 345 LITRE
OPERATION DIMENSION: LENGTH 11680MM, WIDTH 2250MM, HEIGHT 4150MM
TRANSPORT DIMENSION: LENGTH 11900MM, WIDTH 2250MM, HEIGHT 2500MM
FEEDER: CAPACITY 10M3 WITH EXTENSIONS, BELT FEEDER, FEEDER CONVEYOR BELT WIDTH 1050MM
