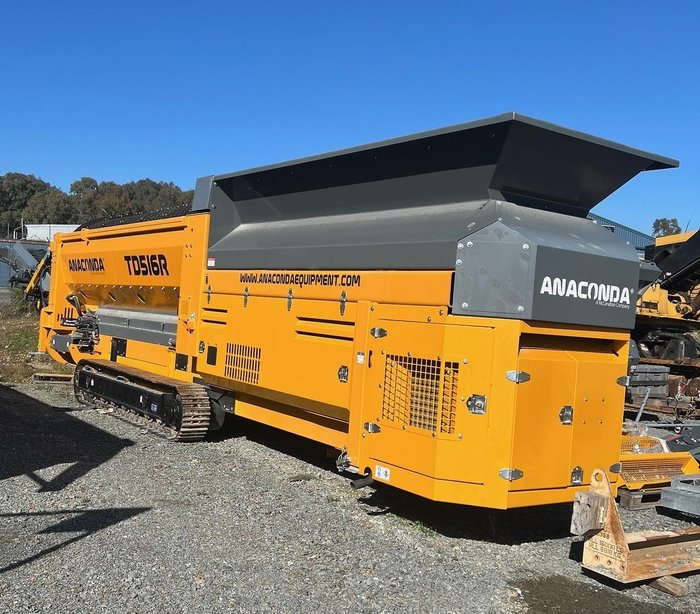

Anaconda TD516R

NEW Anaconda TD516R Trommel

The Anaconda TD516R Trommel Screen is robust and easy to use ensuring optimum levels of performance every time. This is our smaller trommel screen but its results are anything but! Fully equipt with a 5.15m x 1.37m screening drum this compact trommel ensures that you are able to get the most fines from your given application as possible. Complete with 2 conveyors to separate and stockpile your product the TD516R has no issue separating tonnages of 250 TPH, Proving its capabilities.

Weight: 14500kg
Power Pack: TIER 3 - JCB 444 DIESELMAX 63KW Engine, Diesel Tank 260 Litre, Hydraulic Tank 345 Litre
Operation Dimension: :Length 13370mm, width 6370mm, Height 3150mm
Transport Dimension: Length 11690mm, Width 2280mm - 2420mm, Height 2540mm - 2730mm
Feeder: Capacity 4M3 Without Extensions, Belt Feeder, Feeder Conveyor Belt Width 900mm
Drum: Length 5150mm x Diameter 1370mm (16’9 X 4’5). Tracks: Width 300mm
