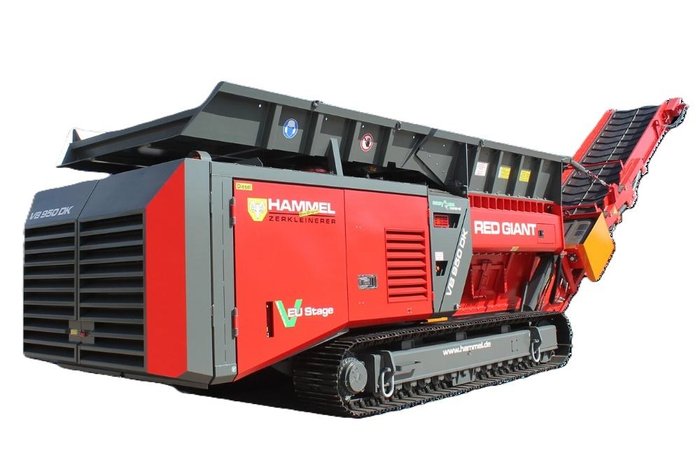

Hammel VB 950 DK

ENGINE
CAT C18 Diesel Engine Stage 5
Performance 563kW / 766 PS

GEAR BOX
Brand Bondioli & Pavesi
Max torque of 480,000 Nm

DISCHARGE BELT
Belt width 1,400mm
Discharge height 5,300mm bei 33°
Foldable for transport

SHAFTS
Working length 2,370mm
Total length 3,000mm
Diameter 870mm
Rotation of shafts in min-1: 33

HOPPER
Hopper volume 11m³
Main and tilting hopper with feeding surface for long materials

PERFORMANCE
Capacity up to 100 T/Hour on mixed materials

WEIGHT
Approx 47,000kgs with additional equipment

TRACKS
Width 600mm

OPERATING DIMENSIONS
Length 15,500mm / Width 3,070mm / Height 6,010mm

TRANSPORT DIMENSIONS
Length 11,390 mm / Width 3070mm / Height 3,320mm
