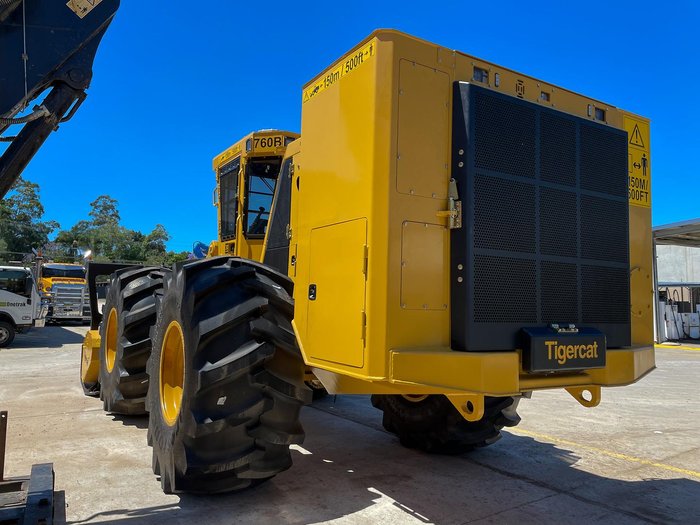

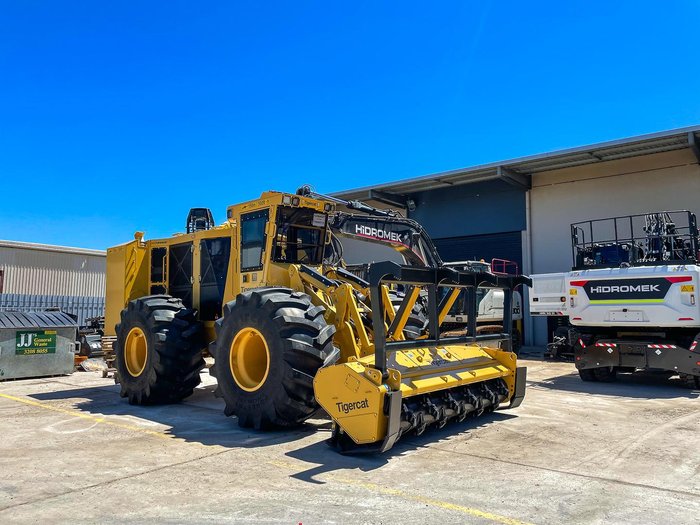

Tigercat 760B

Product specificationsENGINE Tigercat (FPT) C13 420 kw (563hp) @ 1,800 rpm tier 2 engine

WHEELS 35.5 x 32, 30PR Firestone CRC

BRAKES Spring applied, hydraulic release, wet friction disc type

CONTROLS Electronic for travel/steering/boom, joystick control. Electronic travel speed control limiter, cruise control. Electronic control system with colour LCD touchscreen for machine monitoring and function adjustment

COOLING SYSTEM Side-by-side aluminium radiator, oil cooler, charge air cooler and A/C condenser; Aluminium pump drive gearbox cooler; Swing-out intake debris screen

HYDRAULICS Dedicated variable displacement pumps for attachment and boom

CAB Insulated, pressurized and isolation mounted, two doors with 12mm (1/2") thick polycarbonate windows (in lieu of glass) with guards; Removable steel and polycarbonate skylight, Air-conditioned, heater and defroster, forward sloping polycarbonate windshield

RADIO AM/FM digital stereo with CD player; Bluetooth® audio and hands-free calling

LIGHTING High output LED work lights

ACCESSORIES Compressed air package includes engine driven air compressor, hydraulic tank vacuum system

BOOM FLOAT FUNCTION Standard boom float functionality built in

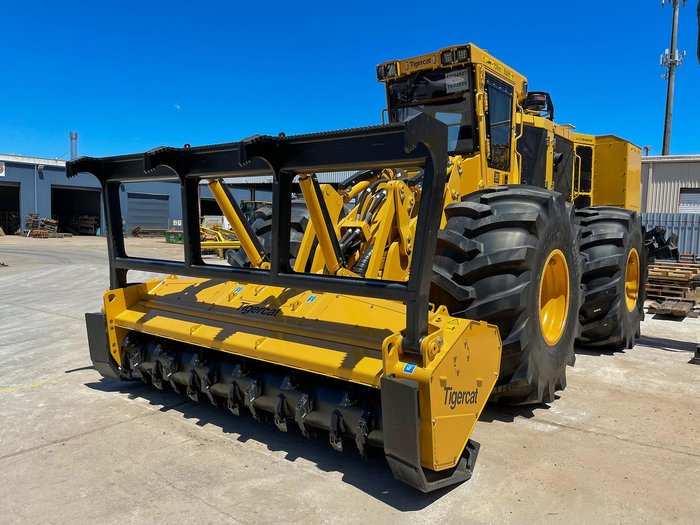

ATTACHMENT Tigercat 4061-30 Mulching head 3.0m (10ft) w/ hydraulic push bar, debris door, poly-chain belt drive and variable displacement motors. Oscillating frame to carrier connection, taper tooth rotor with 60 triple carbide teeth, straight shear bar, steel chain style debris guard kit, rubber debris guard kit, wear liner insert.

FIRE SYSTEM Fogmaker fire suppression system (factory installed), requires activation and certification by distributor or owner prior to placing machine in service

FUEL FILL SYSTEM Ground level fuelling system

WINCH 35,000 lbs hydraulic recovery winch (cable not included)

TELEMATICS LogOn™ local wifi machine monitoring system.

OTHER
Electric hydraulic oil fill pump
Rear camera systems
Boom float system
Air compressor with 24,5 L (6.5 US gal) tank
Booster cable 6m - connector plug - clamps
Pre-cleaner guard extension

PRODUCT SUPPORT PLUS Hydraulic tune & inspection every 1000 hours up to & inc 4000hrs. UHF Radio supplied & fitted (manufactures warranty only)

MANUALS 2 operation and 1 parts manuals.

COMMISSIONING Includes 1 full day commissioning by experienced representative.

RISK ASSESSMENT Supplier risk assessment upon pre-delivery.

WARRANTY Standard warranty - 1 year/ 2000 hrs whichever occurs first. Secure drivetrain + engine - 3 years/ 6000 hrs whichever occurs first

DELIVERY Pricing does not include machine delivery unless otherwise quoted and shown within this submission. Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.

PRICING Prices are subject to change without notice, this quotation is valid for fourteen (14) days. Orders are subject to confirmation and factors such as factory price movements, shipping and currency fluctuations.
