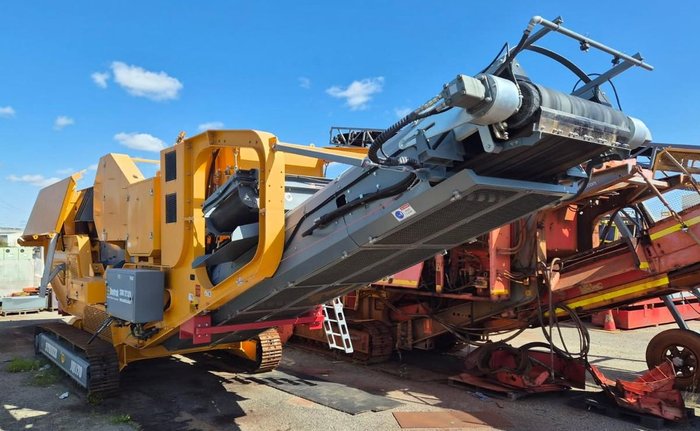

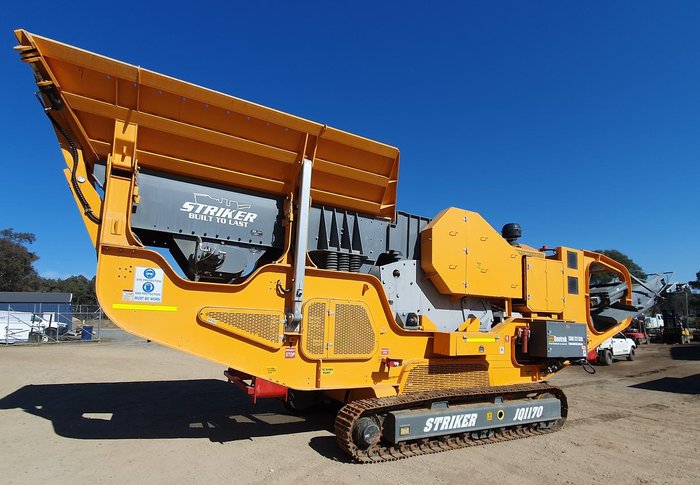

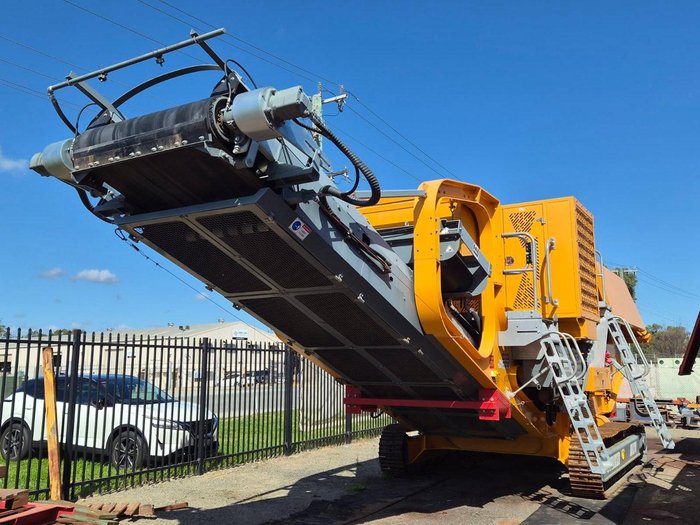

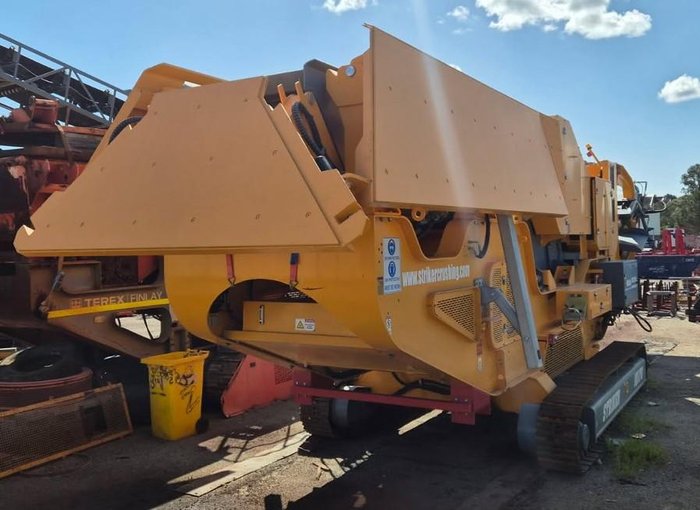

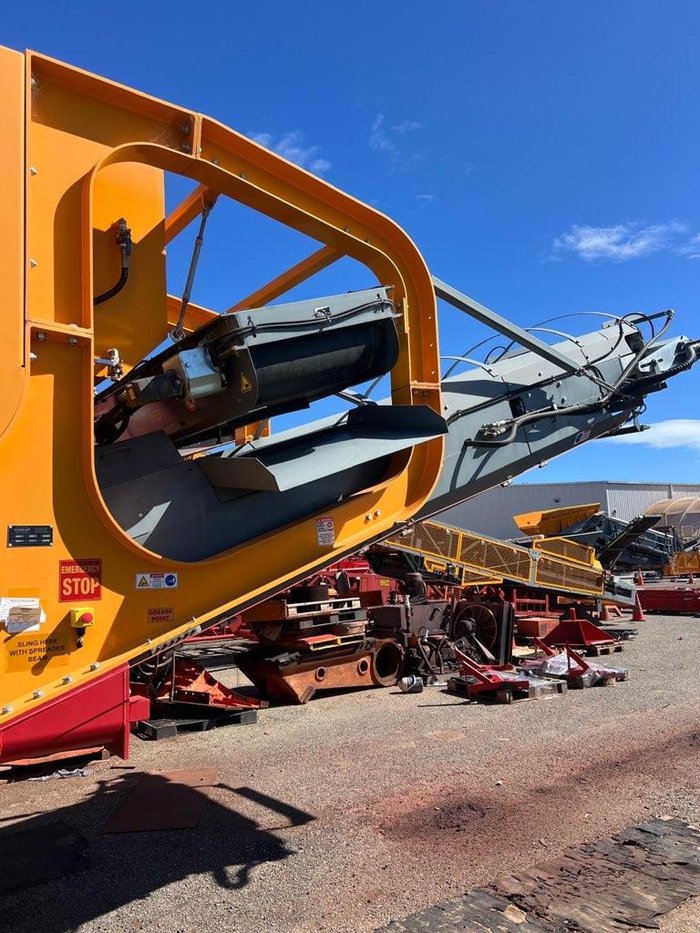

2024 Striker JQ1170

HOPPER
7 / 10 m3 Capacity, Hydraulic Folding, Hydraulic Locking, 65mm Grizzly bars

POWER PACK
Caterpillar C9.3 265kw Tier 3 Diesel Engine
Fuel Tank 640 litre, Hydraulic Tank 600 litre
Radiator Blast Guards ? not available on New Cat 9.3
Load Sensing Hydraulic System

CRUSHER
1,070mm x 740mm (42? x 29?)

CONVEYORS
Forward Product Conveyor Width 1,200mm, Discharge Height 3,300mm,
Dust Spray bars fitted to Forward Product Conveyor, Water Manifold fitted
Over-band Magnet, Stacker Outlet

PERFORMANCE
Capacity up to 325 T/Hour, Gap setting 50mm ? 175mm

CONTROL
Full Radio Remote Control, Striker Optimax engine and feeder controller

TRACKS
Length 3,800mm, Width 400mm

OPERATING DIMENSIONS
Length 14,931mm, Width 4,066mm, Height 4,516mm

TRANSPORT DIMENSIONS
Length 15,139mm, Width 3,200mm, Height 4,041mm
Weight 48,000kg

INCLUDED OPTIONS
Deflector Plate under Crusher
High & Wide Track Kit
Nip Point Guarding
E-Stops
Central Greasing Banks
Warning Siren for tracking and startup

SPECIFIC TO THIS MACHINE
Jaw level sensor
Primary hopper Hardox wear liners
Blanking plates for grizzly
Stacker outlet to run Striker radial stacking conveyor
Magnet preparation c/w hosing, shedder plate and mounting bracket
Single pole magnet c/w hosing, shedder plate and mounting bracket
Control panel positive pressurisation
Dual drive forward conveyor
3mtr stainless steel air intake snorkel with turbo pre-cleaner bowl

Machine located in Perth.
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
